Ram 1500 Wheels
In-stock 6-lug wheels for the newer Ram 1500
6x139.7 wheels in the 18, 20 and 22 inch sizes Ram owners run most. Have a 5-lug Ram? Every wheel that fits your exact truck is in the full list below.
Before you pick a wheel for a Ram, count the lug nuts. Older trucks run five lugs, newer ones run six, and the two patterns do not swap. Once you know your pattern, the designs below cover everything from 17-inch trail wheels to 24-inch show wheels.
Popular designs, side by side
Asanti Black 51
A gloss black street wheel in 22x10 and 24x10. It is drilled for both 6x135 and 6x139.7, so on a Ram it fits the 6-lug truck only. Pick it for a big, all-black look with no chrome or milled accents. The 24x10 leaves very little sidewall, so expect a firmer ride on rough roads.
FULL THROTTLE FT1
A 20x14 wheel built for poke, and one of the few wide wheels here offered in both 5x139.7 and 6x139.7. Black / Machined gives contrast, while Satin Black keeps it stealthy. At 14 inches wide with deep negative offset, it sits far outside the fenders. Plan on checking for rub and fender coverage.
TIS 556AB
A 17x9 wheel in Anthracite with a Black Ring, available in 5x139.7 and 6x139.7. It is a solid off-road-size pick for 5-lug owners, who have fewer choices. The dark grey reads tougher than flat black. It only comes in 17x9.
Fuel 1PC WEAPON
A 6-lug Fuel design in 20x9 and 20x10 with a Platinum finish. Pick it if you want Fuel's aggressive truck style in something lighter than the usual black. The 20x10 -18 pushes well past factory offset, so check tire clearance before running it at stock height.
Black Rhino RAID
A 6-lug wheel in 17x8.5 and 20x9.5, finished in gold. Gold is a loud choice, and it works best on white, black or grey trucks. The 20x9.5 +12 stays closer to factory offset than most 20s here, which makes it a friendlier fit for stock or leveled trucks.
Moto Metal COMBAT
Chrome, 6-lug, in 20x10 and 22x10. If you want real shine at 20 or 22 inches, this is the main pick in the list. The 20x10 -18 sits out past the fender line more than a factory wheel. Chrome needs regular washing in salt states to stay clean.
DUB 1PC BLAZE
A 24x10 wheel, 6-lug only, in Chrome or Gloss Black. It suits a street truck that wants maximum diameter without extra width. The 24x10 +25 sits right at the factory offset range. The tradeoff is a thin tire with less ride comfort and less pothole protection.
Tuff T4B
Candy Red with milled spokes, in 20x12 and 24x14, 6-lug only. This is the boldest finish here and is meant for lifted trucks that want attention. The 24x14 -72 is all poke, so plan for rub checks and fender coverage.
Fittipaldi Offroad FTF510P
A fully polished wheel in 24x12 and 24x14, 6-lug. It is the bright alternative to chrome for big lifted builds. The 24x12 -44 sits well outside the fender. Polished aluminum needs occasional polishing to stay bright.

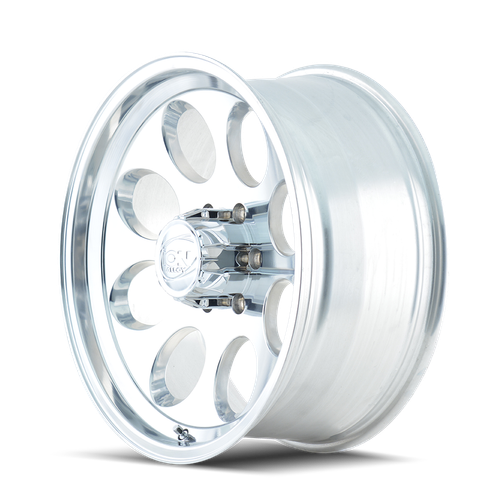

Ion Type 171
A polished wheel in 17x9 and 18x9, offered in 5x139.7 and 6x139.7. It fits older 5-lug Rams and 1994-2010 Dodge Rams just as easily as the newer 6-lug trucks. The 17x9 +0 sits a little outside factory. Polish dulls without care.
Black Rhino Hard Alloys 200
Matte black in 17x8.5 and 18x9, 6-lug. It is a no-nonsense off-road size that leaves room for tall sidewalls. The 17x8.5 comes at 0 offset, a little further out than factory. Matte hides brake dust well, but grease marks are harder to scrub off.
Dirty Life Journey 9316
A 17x8.5 trail wheel, 6-lug, in Matte Black or Matte Bronze. The bronze option is what sets it apart from the plain black 17s here. It only comes in one size, so it is a pure off-road pick.
Icon Alloys COMPRESSION
A 6-lug wheel in 17x8.5 and 18x9 with a Titanium finish. Titanium is a grey-silver middle ground between black and polished. Go 18x9 if you want a bit more wheel and a bit less sidewall.
MASSIV 926
A 24x9 wheel, 6-lug, in Black and Milled or Black Machined. It is the narrowest 24 in this list, so it is the one for big diameter without much poke. Both finishes mix black with bare cut-metal accents, which looks good up close but shows curb rash.
Enkei RPT1
A 17x9 wheel, 6-lug, in Black or Titanium Gold. It is a clean off-road size for owners who want a lighter-looking wheel than the chunky 17s. Titanium Gold is softer than the bright gold on the RAID. It only comes in 17x9.
Mamba 591BZ M19
Bronze in 17x9 and 18x9, offered in 5x139.7 and 6x139.7. It is one of the few bronze choices for 5-lug trucks. Bronze looks great with white, grey and green paint. Sizes stop at 18 inches.
On real Ram 1500s
Customer builds from our fitment gallery, with the exact sizes they run.
Photos from customers in our fitment gallery. Click a car for its full setup.
Ram 1500 Rims: Is Your Truck 5-Lug or 6-Lug?
Sort this out first. Ram has used two bolt patterns on the half-ton, and a wheel drilled for one will not bolt to the other. The center bore is 77.8 mm across every group below, so once the lug count matches, hub fit works the same way.
| Truck | Bolt pattern | Center bore | Factory sizes | Watch out |
|---|---|---|---|---|
| 1994-2010 Dodge Ram 1500 | 5x139.7 (5-lug) | 77.8 mm | 6.5x15 +32, 7x16 +32, 7x16 +0, 8x17 +25, 8x17 +18, 10x22 +10 | A few listings show a different pattern. Count the lugs. |
| 2011-2019 Ram 1500, older body only | 5x139.7 (5-lug) | 77.8 mm | 7x17 +25, 7x17 +19 | A 2019 could be either body. Count the lugs. |
| 2020-2026 Ram 1500 | 6x139.7 (6-lug) | 77.8 mm | 7x17 +19, 7x17 +25, 7.5x18 +19, 9x18 +19 | The Classic was still sold in these years. Count the lugs. |
How to tell which one you have
Count the lug nuts on one wheel. Five means 5x139.7. Six means 6x139.7. It takes ten seconds and beats guessing from the model year. Some trims in each year group are listed with the other pattern, so count even if your year seems obvious.
2019 owners and the Ram 1500 Classic
The 2019 model year was sold as both the older Classic body and the new body. The Classic also kept selling after 2019, so a 2020-or-newer Classic can still be a 5-lug truck. Count first, then go to the right page: the new-body 2019 wheel page or the 2019 Classic wheel page. For the 5-lug truck and the Classic, our 4th-gen (5-lug) Ram 1500 and Classic wheel and tire guide goes deeper on sizes.
Ram 1500 20 Inch Wheels vs 22 Inch Wheels
20s are the sweet spot. You keep enough sidewall for a decent ride, and the tire selection is huge. 22s fill the wheel well and look sharper on a street truck. The cost is a thinner tire, a firmer ride, and less protection from potholes. If you go off-road at all, 17s and 18s with a tall sidewall make more sense. 24s are for show trucks.
| Size | 6-lug (6x139.7) examples | 5-lug (5x139.7) examples |
|---|---|---|
| 17-18 in | Black Rhino Hard Alloys 200, Icon Alloys COMPRESSION, Enkei RPT1, Dirty Life Journey 9316 | Ion Type 171, Mamba 591BZ M19, TIS 556AB (all three also come in 6-lug) |
| 20 in | Fuel 1PC WEAPON 20x9 / 20x10, Black Rhino RAID 20x9.5, Moto Metal COMBAT 20x10 | XF Off-Road XF-211 20x9, Vortek VRD-705 20x9.5, Raceline 991B Assault 20x9, Gear Off Road 771B 20x10 |
| 20 in wide | FULL THROTTLE FT1 20x14, Tuff T4B 20x12 | FULL THROTTLE FT1 20x14 |
| 22 in | Asanti Black 51 22x10, Moto Metal COMBAT 22x10 | Check the 5-lug page below |
| 24 in | DUB 1PC BLAZE 24x10, MASSIV 926 24x9, Fittipaldi Offroad FTF510P, Tuff T4B 24x14 | Check the 5-lug page below |
A good 6-lug 20 to start with is the Moto Metal COMBAT 20x10 -18 in chrome. On the 5-lug side, the XF Off-Road XF-211 20x9 +0 is drilled 5x139.7 and 5x150, and the 5x139.7 side fits the older truck. Big 22s and 24s are mostly 6-lug, so 5-lug owners should browse every 5x139.7 wheel we stock, and 6-lug owners can see all 6x139.7 wheels.
Ram 1500 Black Wheels and Chrome Wheels
Black is the most common truck finish we carry, in three flavors. Gloss black, like the Asanti Black 51 or the Ultra Warmonger 20x9 +18, looks wet and dressy but shows swirl marks. Matte black, like the Hard Alloys 200, the XD 811 (6x135/6x139.7, so 6-lug on a Ram) or the 5-lug Vortek VRD-705, hides brake dust but holds onto grease. Satin black, like the FT1, sits in between. Browse more black wheel options.
Chrome is rarer. The Moto Metal COMBAT (20x10, 22x10) and the DUB 1PC BLAZE (24x10) are both 6-lug. Chrome looks unbeatable when clean, but road salt is hard on it, so wash it through the winter. 5-lug owners chasing shine should look at the polished Ion Type 171 or check the chrome wheel lineup filtered to 5x139.7. Want something other than black or bright? Bronze (Mamba, Dirty Life) and gold (RAID) look great on white and grey trucks.
Offset: Stock, Leveled or Lifted
Factory wheels run +19 to +25 offset. Here is how to think about it by ride height:
- Stock height: stay near the factory range. The XD 811 20x9 +30 and Ultra 20x9 +18 sit close to it and keep the wheel tucked.
- Leveled: many owners move toward zero for a flusher look. The KMC CRUX 18x9 +0 (6-lug) and the XF-211 20x9 +0 (5-lug) are examples.
- Lifted: negative offset pushes the wheel out. Examples include the Fuel WEAPON 20x10 -18 (6-lug) and the Gear Off Road 771B 20x10 -25 (5-lug). The wide 12- and 14-inch wheels go as deep as -44 to -76.
Lower offset plus a wider tire means more rub risk, especially at full lock. How much depends on your lift and tire size, so check your exact truck in the fitment search before ordering. If bigger tires are the goal, read whether 35s fit a Ram 1500 and our roundup of the best lift kits for the Ram 1500.
What It Looks Like on the Truck

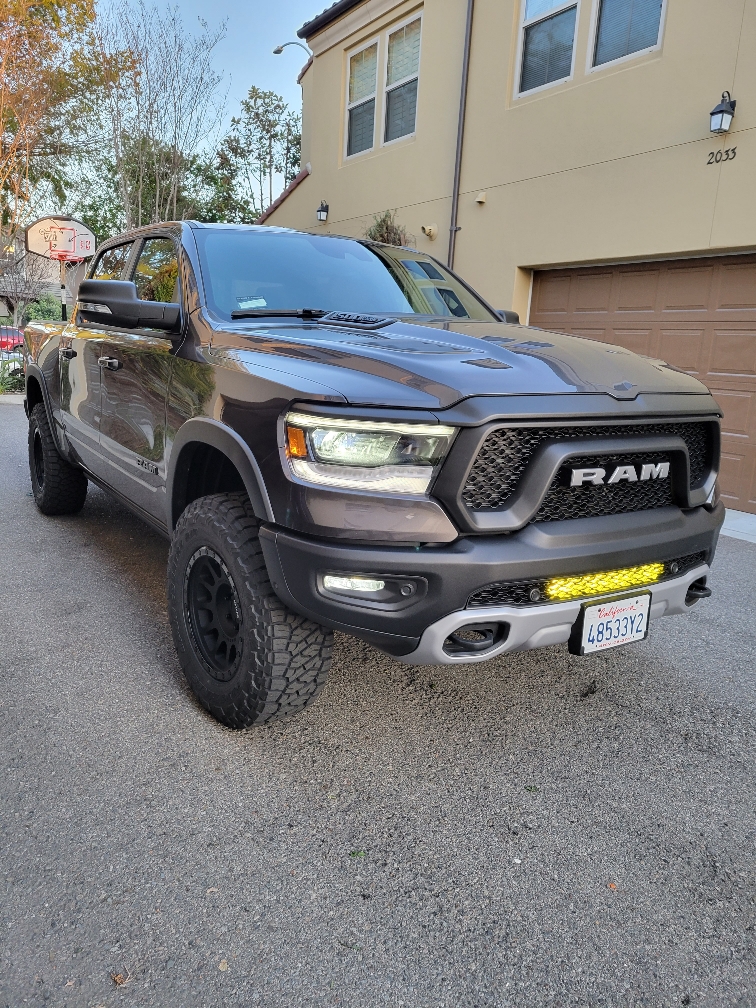

One customer runs Method wheels on a 2020 truck at 18x9 -12 up front, with 295-wide tires, for a poke stance. The rear is listed at 18x7.5 +19. That front setup is the classic leveled look: the wheel sits proud of the fender without going to extreme widths. A +12 to +30 wheel stays flush to tucked. Anything past -40 on a 12- or 14-inch-wide wheel is a full show-truck stance.
Ram 1500 Fuel Wheels
Fuel 1PC is the deepest brand in our truck catalog. The WEAPON is the 6-lug standout. The WEAPON 20x10 -18 in Platinum gives a lifted or leveled truck a mild poke. See every Fuel wheel in 6-lug, or the Fuel lineup for 5-lug trucks.
Ram 1500 Rims and Tires
If you would rather not match tires yourself, our truck wheel and tire packages pair wheels and tires in sizes that work together. Know your lug count before you start.
Ram Rebel Rims
The Rebel is a trim, so the same rule applies: count the lugs. Rebel owners usually want trail looks, so the 17s and 18s are the place to start, along with our off-road wheel picks.
Dodge Ram Rims for 1994-2010 Trucks
These older trucks use 5x139.7 with the same 77.8 mm bore. Every 5-lug design here fits the pattern, including the Ion Type 171 and the Mamba 591BZ M19. Dual-drilled 5x139.7/5x150 wheels, like the Vortek VRD-705, also work. Factory sizes ranged from 15 to 22 inches, so check offset against your exact truck.
Wheels by Model Year
Shopping by year? Jump to 2013 · 2014 · 2015 · 2016 · 2017 · 2018 · 2022 · 2025. 2019 owners should use the two links in the 2019 section above.
Count your lugs, then browse our in-stock truck wheels to find your set.
Questions
What bolt pattern is a Ram 1500?
It depends on the truck: older 5-lug trucks use 5x139.7, and the newer body sold from 2020 uses 6x139.7. Counting the lug nuts tells you instantly.
Will 6-lug wheels fit my 2019 Ram?
Only if your 2019 is the new-body truck. That year was sold as both the older Classic and the new body, so count the lugs before ordering.
Is a 2020 or newer Ram 1500 Classic 6-lug?
Not necessarily, because the Classic is the older body and is grouped with the 5-lug trucks. Count the lugs or use the fitment search before you buy.
Can 5-lug and 6-lug Ram wheels be swapped?
No. The lug counts are different, so the wheel will not bolt on even though both share the 77.8 mm center bore.
What wheel sizes came on the 6-lug truck from the factory?
Factory sizes were 7x17 +19, 7x17 +25, 7.5x18 +19 and 9x18 +19. Use those offsets as your baseline for a stock-height setup.
Can I run 22s on a stock-height Ram 1500?
Yes, 22s are a popular street size, and the Asanti Black 51 and Moto Metal COMBAT both come in 22x10 for the 6-lug truck. Tire size and offset decide clearance, so check your exact truck in the fitment search.
