Ford F-150 Wheels

If your F-150 is a 2004 or newer, these wheels are built for it. Pick the size first: 17s for meaty trail tires, 20s for the classic street-and-dirt look, or 22s and up if you want the truck to sit big. Then choose black, chrome, bronze or something louder, and check your exact year in the fitment search before you order.

Popular designs, side by side

Hartes Metal Savage

Hartes Metal Savage

Sizes: 20x9, 20x10, 20x12
Bolt pattern: 6x135
Finishes: Black, Polished
$295 – $325 per wheel · 3 in stock
Xtreme Mudder XM-700

Xtreme Mudder XM-700

Sizes: 17x9, 18x9, 20x10
Bolt pattern: 6x135
Finishes: Semi Matte Black
$250 – $325 per wheel · 3 in stock
Moto Metal COMBAT

Moto Metal COMBAT

Sizes: 22x10, 24x12
Bolt pattern: 6x135
Finishes: Chrome
$582 – $732 per wheel · 2 in stock

This is full chrome and nothing else, in 20x10 or a huge 24x12. The 20x10 -18 pushes the wheel well past the fender for that poked-out show-truck look. Be honest with yourself about fender coverage and rubbing on a stock-height truck. Chrome also needs regular cleaning to stay sharp.

KMC CRUX

KMC CRUX

Sizes: 17x8.5
Bolt pattern: 6x135
Finishes: Blackout, Gloss Gunmetal
$374 per wheel · 2 in stock

This is the KMC pick for the F-150, and it covers both camps: 17x8.5 for trail tires and 20x9 for the street. Blackout keeps it stealthy. Gloss Gunmetal is a darker gray that hides road grime better than pure black. The 17x8.5 +0 is a sensible size if you want more sidewall without going extreme.

Black Rhino BR015 VOLL

Black Rhino BR015 VOLL

Sizes: 17x8.5
Bolt pattern: 6x135
Finishes: MATTE BLACK
$427 per wheel · 2 in stock
XD COLOSSUS

XD COLOSSUS

Sizes: 20x9
Bolt pattern: 6x135
Finishes: Matte Black
$519 – $539 per wheel · 2 in stock
XF Off-Road XF-230

XF Off-Road XF-230

Sizes: 17x9
Bolt pattern: 6x135
Finishes: Gloss Black & Machined
$258 per wheel · 2 in stock
Fittipaldi Offroad FTF503P

Fittipaldi Offroad FTF503P

Sizes: 24x12
Bolt pattern: 6x135
Finishes: Polished
$1,215 – $1,221 per wheel · 2 in stock
FULL THROTTLE FT2

FULL THROTTLE FT2

Sizes: 20x14, 22x12
Bolt pattern: 6x135
Finishes: CHROME
$541 – $597 per wheel · 2 in stock

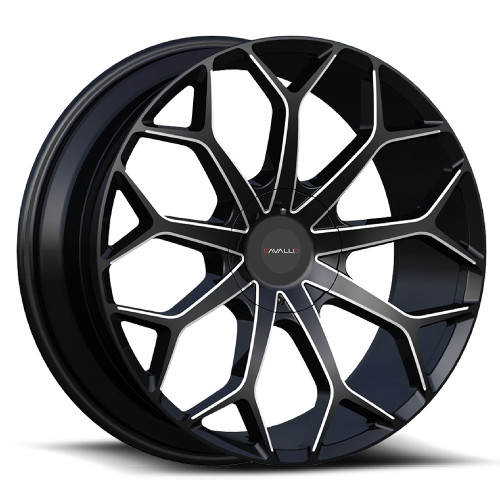

Cavallo CLV-22

Cavallo CLV-22

Sizes: 22x9.5
Bolt pattern: 6x135
Finishes: Gloss Black & Milled
$370 – $463 per wheel · 2 in stock

This is a street-truck 22 in 22x9.5, Gloss Black with milled accents that catch light. At +25 it sits closer to factory fitment than the negative-offset off-road wheels. Low-profile tires on 22s ride firmer, so it's better for pavement than trails.

4PLAY 4PL28

4PLAY 4PL28

Sizes: 20x10, 22x12
Bolt pattern: 6x135
Finishes: Chrome
$590 – $690 per wheel · 2 in stock
American Racing AR62 OUTLAW II

American Racing AR62 OUTLAW II

Sizes: 17x8, 18x8
Bolt pattern: 6x135
Finishes: SATIN BLACK
$307 – $335 per wheel · 2 in stock
Hardrock Offroad H906

Hardrock Offroad H906

Sizes: 22x12, 24x12
Bolt pattern: 6x135
Finishes: Polish
$955 – $1,135 per wheel · 2 in stock
Arena Violator

Arena Violator

Sizes: 20x10, 22x12
Bolt pattern: 6x135
Finishes: Polished Milled, Satin Black
$634 – $660 per wheel · 2 in stock
Edge Off Road 304B

Edge Off Road 304B

Sizes: 20x9, 22x12
Bolt pattern: 6x135
Finishes: Gloss Black
$291 – $335 per wheel · 2 in stock
Dropstars Trail Series 608MS

Dropstars Trail Series 608MS

Sizes: 17x9, 20x9
Bolt pattern: 6x135
Finishes: Machined Silver
$289 – $359 per wheel · 2 in stock

On real F-150s

Customer builds from our fitment gallery, with the exact sizes they run.

Photos from customers in our fitment gallery. Click a car for its full setup.

Ford F-150 Bolt Pattern by Year

Before anything else, make sure the wheel will bolt on. Every truck from 2004 through 2026 shares one pattern and hub bore. Older trucks are a different story.

YearsBolt PatternCenter BoreNotes
1990-19965x139.787.1 mmWill not take 6x135 wheels
1997-20005x135 or 7x15087.1 mmVaries by truck. Check yours in the fitment search
2001-20037x150 or 5x13587.1 mmVaries by truck. Check yours in the fitment search
2004-20266x13587.1 mmIncludes Heritage and Lightning. 2004 owners, confirm your truck

The 2004 model year overlaps the old Heritage trucks, so run your VIN or trim through the fitment search to confirm. Every wheel on this page is 6x135. If you want to see everything in that pattern beyond the F-150 picks, browse all 6x135 wheels.

F-150 Rims by Size: 17 vs 18 vs 20 vs 22 Inch

SizeBest ForDesigns Here
17 inchOff-road, tall sidewall, big all-terrain or mud tiresKMC CRUX, Vortek VRT-603-R, LOCK COMBAT, Black Rhino BASIN, Raceline Ryno, AR893 MAINLINE, Dirty Life Journey
18 inchMiddle ground, some sidewall with a fuller lookVision 350 Ojos, Raceline Ryno, AR893 MAINLINE
20 inchThe most popular F-150 size, street and light trailFuel WEAPON, Moto Metal COMBAT, KMC CRUX, Mayhem Warrior, LOCK COMBAT, Gear 770BM, TIS 544B, Dropstars 602SB
22 inchStreet trucks, low-profile tiresCavallo CLV-22, Gear 770BM
24 inchShow builds, usually liftedMoto Metal COMBAT, American Truxx Vortex

Ford F-150 17 inch wheels

Seventeens are the trail choice. More sidewall means more cushion over rocks and a better ride on washboard roads. One thing to check: some newer trucks with larger brakes may not clear a 17, so confirm your truck in the fitment search first.

F-150 22 inch wheels

Twenty-twos are about looks. The tire gets thinner, the ride gets firmer, and potholes hurt more. If your truck mostly sees pavement, that's a fair trade.

Stock vs Leveled vs Lifted: What Offset Does

Offset decides where the wheel sits in the fender. Higher positive numbers tuck the wheel in. Zero and negative numbers push it out. Factory 17s and 18s on 2004 and newer trucks run between +34 and +44, which is why stock wheels look sunk in.

  • Stock height: Stay closer to factory. Something like the AR893 at 17x8 +25 or the Cavallo at 22x9.5 +25 keeps things tidy.
  • Leveled: A leveling kit opens up room up front, and offsets around +0 to +20 are where most owners land. See the leveling kit picks for 2015-2020 trucks.
  • Lifted: Negative offsets like the Mayhem's 20x9 -8 or the Moto Metal's 20x10 -18 fill the fender, but wider tires bring rubbing risk. Before you size up, read whether 35s fit an F-150.

For the full breakdown, the F-150 6x135 fitment guide covers 17 and 20 inch specs in detail.

How These Wheels Look on Real F-150s

These are real customer builds, with the setups owners actually run.

TruckWheel SizeTire WidthStance

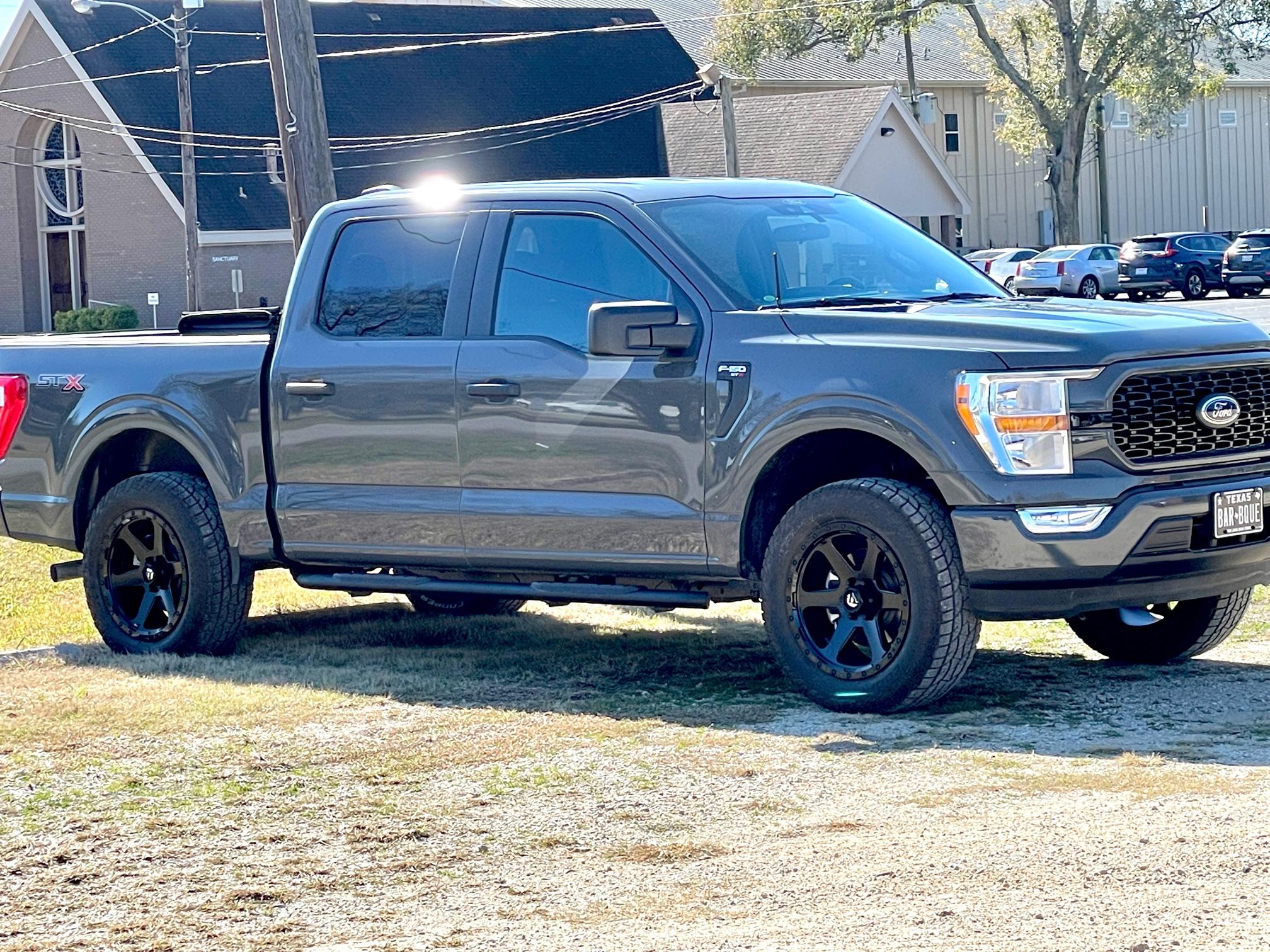

2023 F-15020x9 +20275Hella flush
2011 F-15020x9 +20305Hella flush

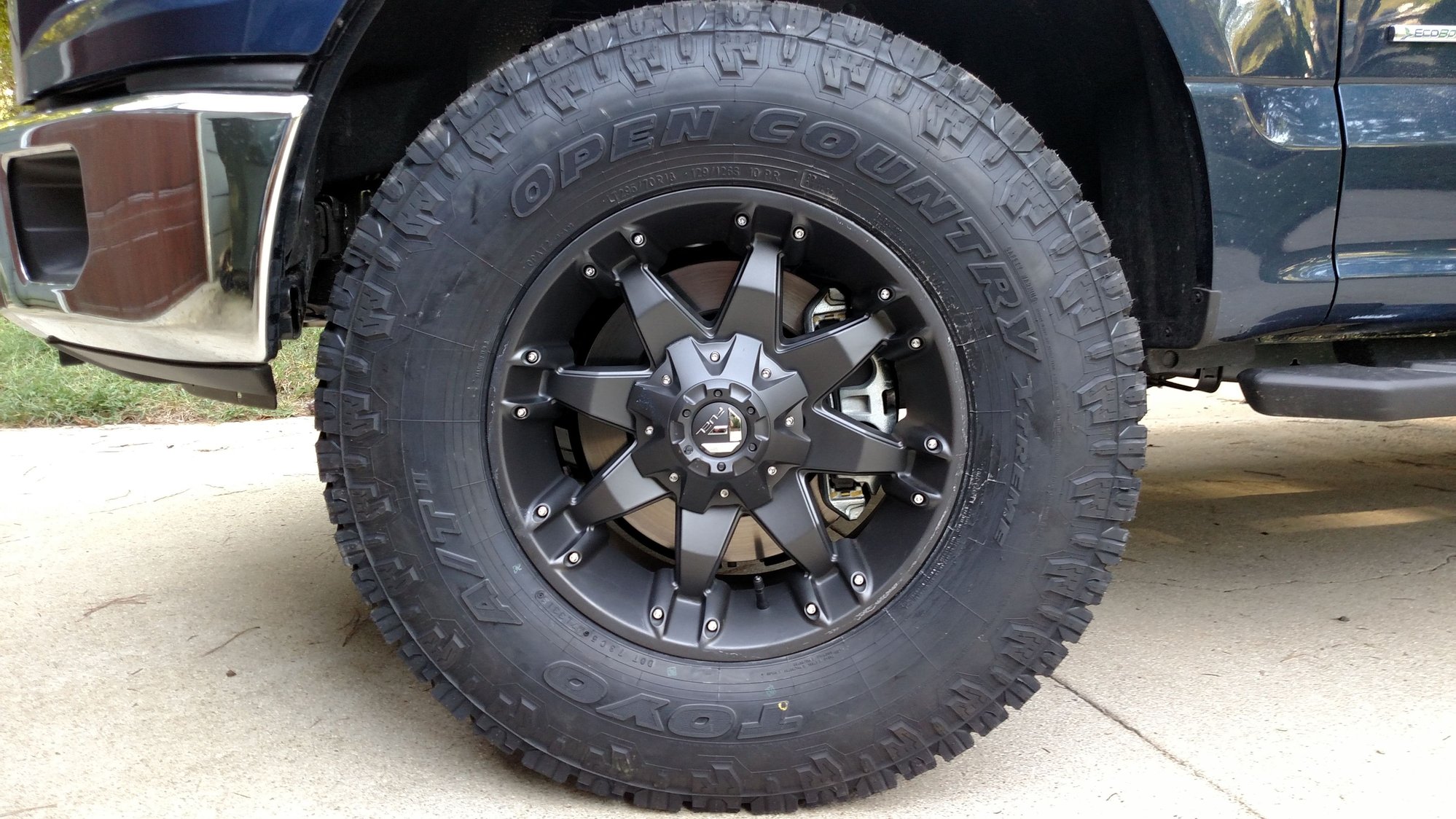

2017 F-15018x9 +20295Hella flush
2021 F-15020x9 +1295Flush
2022 F-15020x9 +1295Poke
2021 F-15018x9 0305Poke

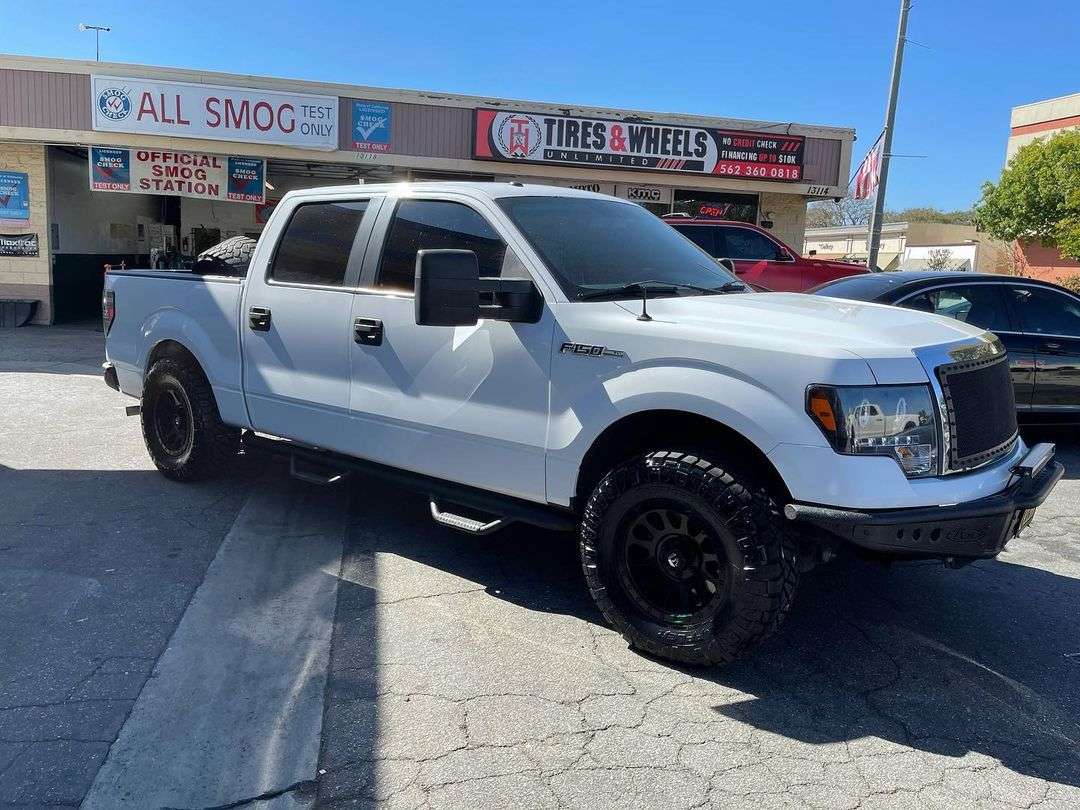

2012 and 2016 F-15017x9 0315Poke

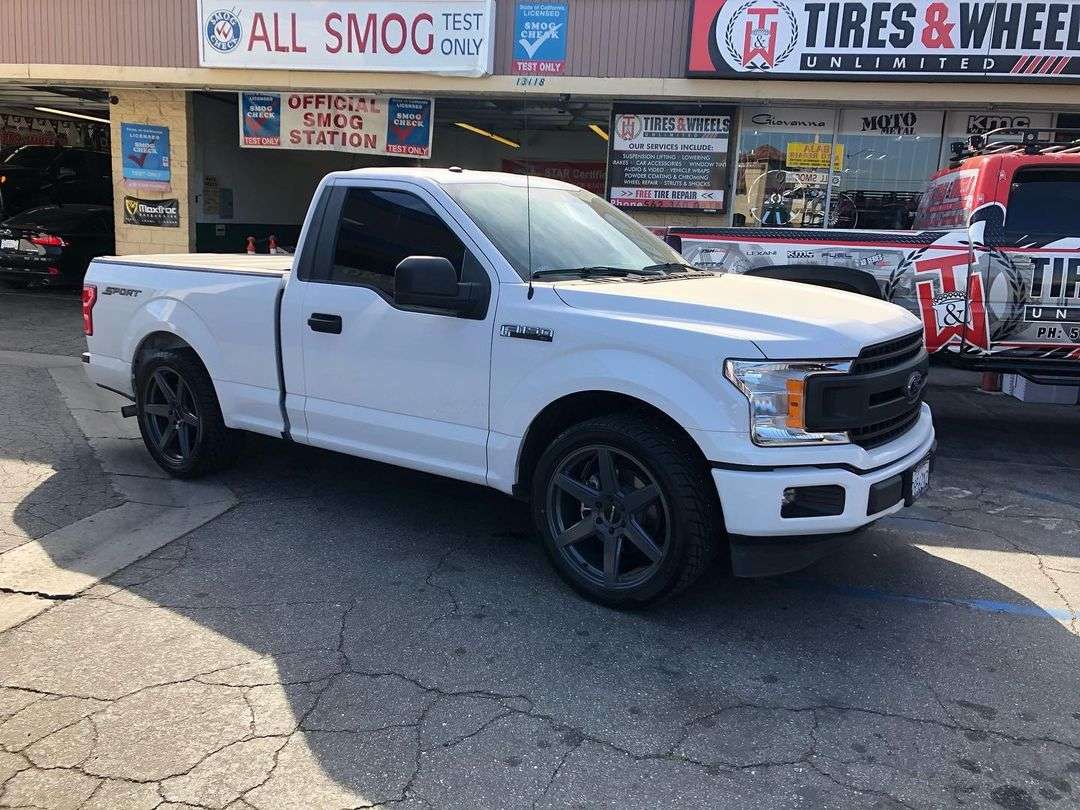

2020 F-15020x10 0305Poke

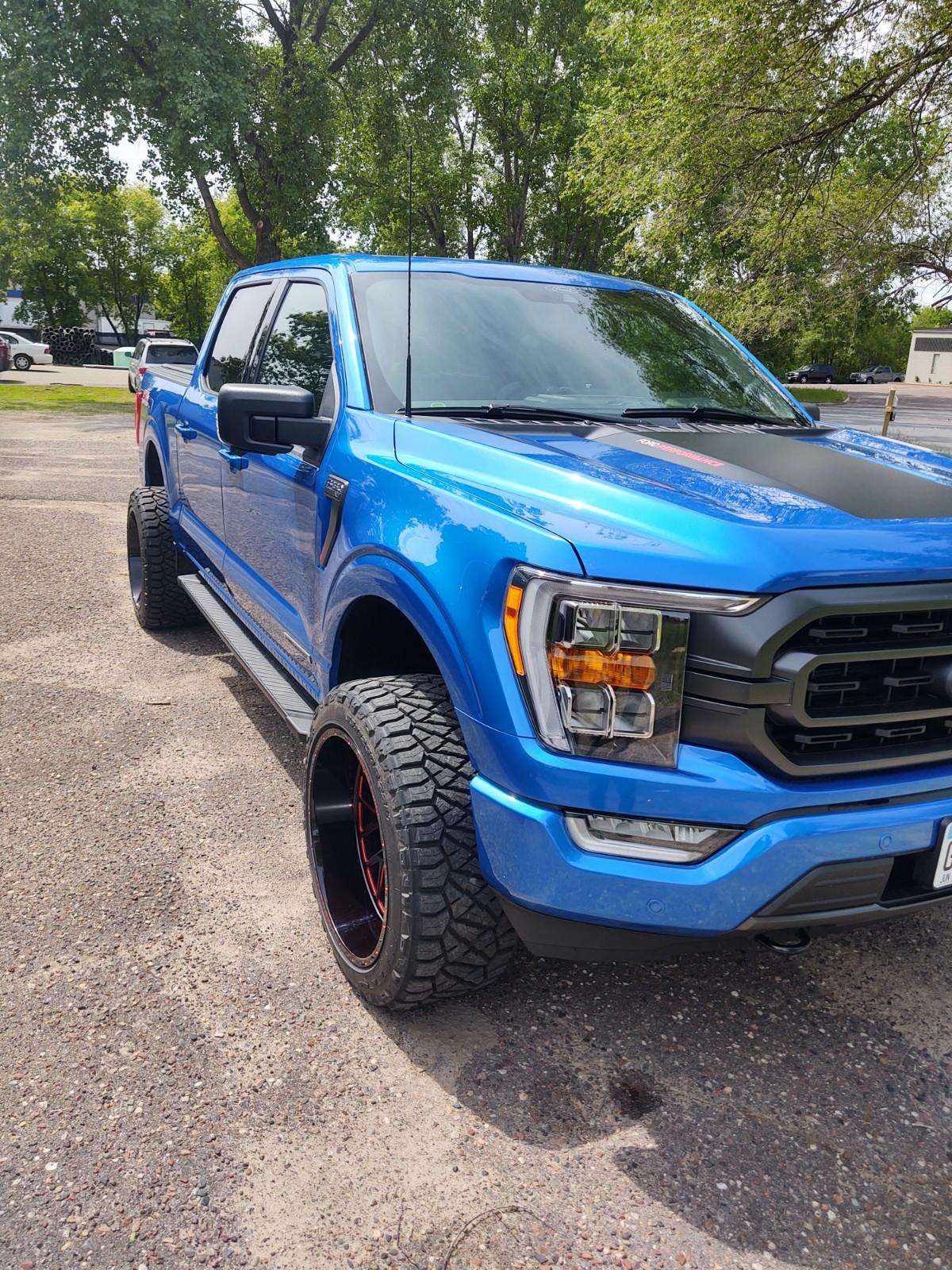

2018 F-15022x12 -10305Poke

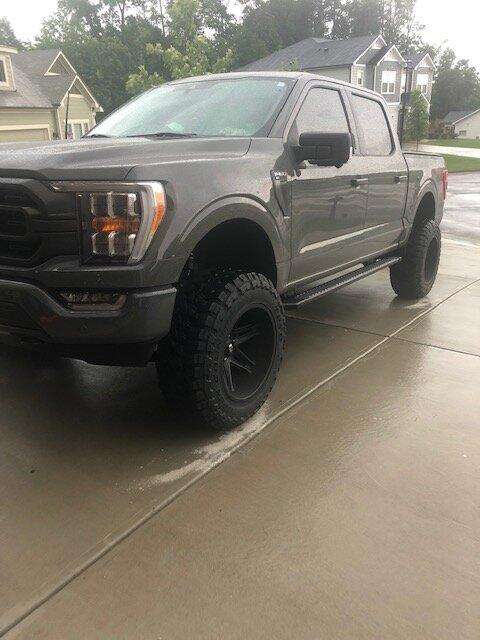

2021 F-15020x12 -51345Poke

The pattern is clear. A +20 offset gives a flush look on 20s and 18s. Dropping to +1 or 0 starts the poke. Going wide and negative, like 20x12 -51 with 345s, is the full aggressive build. One owner runs a 1995 on 17x10 -38 beadlocks with 315s, but remember that truck is 5x139.7, not 6x135.

F-150 Black Wheels

Black is the most popular look on these trucks. Gloss black, like the TIS 544B, stays shiny and is easy to wipe down. Matte black, like the Mayhem Warrior or Black Rhino BASIN, looks tougher but holds onto grime. Satin, on the Vortek and Dropstars, sits in between. If you want black with some flash, the Cavallo CLV-22 and Gear 770BM add milled accents.

F-150 Chrome Wheels

Chrome still looks right on an F-150, especially on silver, white or black paint. The Moto Metal COMBAT is the loud option in 20x10 and 24x12. The AR893 MAINLINE is the clean, close-to-stock choice in 17 and 18 inch. If you want brightness without chrome upkeep, the LOCK COMBAT's machined finish is worth a look.

Fuel, Method and KMC Wheels for the F-150

These are the three brands owners search for most. For Fuel, the WEAPON is the in-stock 6x135 design here, and you can see more in the Fuel 6x135 lineup. Several builds above run Fuel at 20x9 +1, 17x9 0 and 18x9 +20. For KMC, the CRUX covers 17x8.5 and 20x9, and the KMC 6x135 range has more. Method owners above run 18x9 0 with 305s. Browse the Method Race Wheels lineup for current designs.

F-150 Rims and Tires

If you're changing size or offset, buying wheels and tires together takes the guesswork out of matching them. Our truck wheel and tire packages pair the two for you. For sizing help from stock to lifted, read which tire sizes work at each ride height.

A Note for Lightning Owners

The Lightning uses the same 6x135 pattern, but it's a heavy truck. Check the load rating on any wheel before you buy it.

Shop F-150 Wheels by Year

2010 · 2012 · 2013 · 2014 · 2015 · 2016 · 2017 · 2018 · 2019 · 2020 · 2021 · 2023 · 2024 · 2025 · 2026

Still deciding? Browse our off-road wheel selection or the full truck wheel catalog and narrow it down by size and finish.

Questions

What bolt pattern does a Ford F-150 use?

2004 through 2026 trucks, including the Lightning, use 6x135 with an 87.1 mm center bore. Trucks from 1997 to 2003 came with either 5x135 or 7x150, so check yours in the fitment search.

Will 22 inch wheels fit an F-150?

Yes. One owner runs 22x12 -10 with 305-width tires on a 2018 for a poked-out stance. Expect a firmer ride than with 20s because the tire sidewall is shorter.

Are 17 inch wheels good for an F-150?

They're the best size for off-road use. Owners run 17x9 0 with 315-width tires on 2012 and 2016 trucks. Confirm brake clearance for your year in the fitment search.

What offset gives a flush look on an F-150?

Owners get a flush stance with 20x9 +20 and 18x9 +20 setups. Offsets near 0 start to poke past the fender.

Can I buy F-150 rims and tires together?

Yes. Wheel and tire packages pair a matched set for your truck, so you aren't guessing at sizes.

Do F-150 Lightning wheels need anything special?

The bolt pattern is the same, but the Lightning is heavy. Check the load rating on any wheel before you buy.

There are no products listed under this category.

If your F-150 is a 2004 or newer, these wheels are built for it. Pick the size first: 17s for meaty trail tires, 20s for the classic street-and-dirt look, or 22s and up if you want the truck to sit big. Then choose black, chrome, bronze or something louder, and check your exact year in the fitment search before you order.

Popular designs, side by side

Hartes Metal Savage

Hartes Metal Savage

Sizes: 20x9, 20x10, 20x12
Bolt pattern: 6x135
Finishes: Black, Polished
$295 – $325 per wheel · 3 in stock
Xtreme Mudder XM-700

Xtreme Mudder XM-700

Sizes: 17x9, 18x9, 20x10
Bolt pattern: 6x135
Finishes: Semi Matte Black
$250 – $325 per wheel · 3 in stock
Moto Metal COMBAT

Moto Metal COMBAT

Sizes: 22x10, 24x12
Bolt pattern: 6x135
Finishes: Chrome
$582 – $732 per wheel · 2 in stock

This is full chrome and nothing else, in 20x10 or a huge 24x12. The 20x10 -18 pushes the wheel well past the fender for that poked-out show-truck look. Be honest with yourself about fender coverage and rubbing on a stock-height truck. Chrome also needs regular cleaning to stay sharp.

KMC CRUX

KMC CRUX

Sizes: 17x8.5
Bolt pattern: 6x135
Finishes: Blackout, Gloss Gunmetal
$374 per wheel · 2 in stock

This is the KMC pick for the F-150, and it covers both camps: 17x8.5 for trail tires and 20x9 for the street. Blackout keeps it stealthy. Gloss Gunmetal is a darker gray that hides road grime better than pure black. The 17x8.5 +0 is a sensible size if you want more sidewall without going extreme.

Black Rhino BR015 VOLL

Black Rhino BR015 VOLL

Sizes: 17x8.5
Bolt pattern: 6x135
Finishes: MATTE BLACK
$427 per wheel · 2 in stock
XD COLOSSUS

XD COLOSSUS

Sizes: 20x9
Bolt pattern: 6x135
Finishes: Matte Black
$519 – $539 per wheel · 2 in stock
XF Off-Road XF-230

XF Off-Road XF-230

Sizes: 17x9
Bolt pattern: 6x135
Finishes: Gloss Black & Machined
$258 per wheel · 2 in stock
Fittipaldi Offroad FTF503P

Fittipaldi Offroad FTF503P

Sizes: 24x12
Bolt pattern: 6x135
Finishes: Polished
$1,215 – $1,221 per wheel · 2 in stock
FULL THROTTLE FT2

FULL THROTTLE FT2

Sizes: 20x14, 22x12
Bolt pattern: 6x135
Finishes: CHROME
$541 – $597 per wheel · 2 in stock
Cavallo CLV-22

Cavallo CLV-22

Sizes: 22x9.5
Bolt pattern: 6x135
Finishes: Gloss Black & Milled
$370 – $463 per wheel · 2 in stock

This is a street-truck 22 in 22x9.5, Gloss Black with milled accents that catch light. At +25 it sits closer to factory fitment than the negative-offset off-road wheels. Low-profile tires on 22s ride firmer, so it's better for pavement than trails.

4PLAY 4PL28

4PLAY 4PL28

Sizes: 20x10, 22x12
Bolt pattern: 6x135
Finishes: Chrome
$590 – $690 per wheel · 2 in stock
American Racing AR62 OUTLAW II

American Racing AR62 OUTLAW II

Sizes: 17x8, 18x8
Bolt pattern: 6x135
Finishes: SATIN BLACK
$307 – $335 per wheel · 2 in stock
Hardrock Offroad H906

Hardrock Offroad H906

Sizes: 22x12, 24x12
Bolt pattern: 6x135
Finishes: Polish
$955 – $1,135 per wheel · 2 in stock
Arena Violator

Arena Violator

Sizes: 20x10, 22x12
Bolt pattern: 6x135
Finishes: Polished Milled, Satin Black
$634 – $660 per wheel · 2 in stock
Edge Off Road 304B

Edge Off Road 304B

Sizes: 20x9, 22x12
Bolt pattern: 6x135
Finishes: Gloss Black
$291 – $335 per wheel · 2 in stock
Dropstars Trail Series 608MS

Dropstars Trail Series 608MS

Sizes: 17x9, 20x9
Bolt pattern: 6x135
Finishes: Machined Silver
$289 – $359 per wheel · 2 in stock

On real F-150s

Customer builds from our fitment gallery, with the exact sizes they run.

Photos from customers in our fitment gallery. Click a car for its full setup.

Ford F-150 Bolt Pattern by Year

Before anything else, make sure the wheel will bolt on. Every truck from 2004 through 2026 shares one pattern and hub bore. Older trucks are a different story.

YearsBolt PatternCenter BoreNotes
1990-19965x139.787.1 mmWill not take 6x135 wheels
1997-20005x135 or 7x15087.1 mmVaries by truck. Check yours in the fitment search
2001-20037x150 or 5x13587.1 mmVaries by truck. Check yours in the fitment search
2004-20266x13587.1 mmIncludes Heritage and Lightning. 2004 owners, confirm your truck

The 2004 model year overlaps the old Heritage trucks, so run your VIN or trim through the fitment search to confirm. Every wheel on this page is 6x135. If you want to see everything in that pattern beyond the F-150 picks, browse all 6x135 wheels.

F-150 Rims by Size: 17 vs 18 vs 20 vs 22 Inch

SizeBest ForDesigns Here
17 inchOff-road, tall sidewall, big all-terrain or mud tiresKMC CRUX, Vortek VRT-603-R, LOCK COMBAT, Black Rhino BASIN, Raceline Ryno, AR893 MAINLINE, Dirty Life Journey
18 inchMiddle ground, some sidewall with a fuller lookVision 350 Ojos, Raceline Ryno, AR893 MAINLINE
20 inchThe most popular F-150 size, street and light trailFuel WEAPON, Moto Metal COMBAT, KMC CRUX, Mayhem Warrior, LOCK COMBAT, Gear 770BM, TIS 544B, Dropstars 602SB
22 inchStreet trucks, low-profile tiresCavallo CLV-22, Gear 770BM
24 inchShow builds, usually liftedMoto Metal COMBAT, American Truxx Vortex

Ford F-150 17 inch wheels

Seventeens are the trail choice. More sidewall means more cushion over rocks and a better ride on washboard roads. One thing to check: some newer trucks with larger brakes may not clear a 17, so confirm your truck in the fitment search first.

F-150 22 inch wheels

Twenty-twos are about looks. The tire gets thinner, the ride gets firmer, and potholes hurt more. If your truck mostly sees pavement, that's a fair trade.

Stock vs Leveled vs Lifted: What Offset Does

Offset decides where the wheel sits in the fender. Higher positive numbers tuck the wheel in. Zero and negative numbers push it out. Factory 17s and 18s on 2004 and newer trucks run between +34 and +44, which is why stock wheels look sunk in.

  • Stock height: Stay closer to factory. Something like the AR893 at 17x8 +25 or the Cavallo at 22x9.5 +25 keeps things tidy.
  • Leveled: A leveling kit opens up room up front, and offsets around +0 to +20 are where most owners land. See the leveling kit picks for 2015-2020 trucks.
  • Lifted: Negative offsets like the Mayhem's 20x9 -8 or the Moto Metal's 20x10 -18 fill the fender, but wider tires bring rubbing risk. Before you size up, read whether 35s fit an F-150.

For the full breakdown, the F-150 6x135 fitment guide covers 17 and 20 inch specs in detail.

How These Wheels Look on Real F-150s

These are real customer builds, with the setups owners actually run.

TruckWheel SizeTire WidthStance
2023 F-15020x9 +20275Hella flush
2011 F-15020x9 +20305Hella flush
2017 F-15018x9 +20295Hella flush
2021 F-15020x9 +1295Flush
2022 F-15020x9 +1295Poke
2021 F-15018x9 0305Poke
2012 and 2016 F-15017x9 0315Poke
2020 F-15020x10 0305Poke
2018 F-15022x12 -10305Poke
2021 F-15020x12 -51345Poke

The pattern is clear. A +20 offset gives a flush look on 20s and 18s. Dropping to +1 or 0 starts the poke. Going wide and negative, like 20x12 -51 with 345s, is the full aggressive build. One owner runs a 1995 on 17x10 -38 beadlocks with 315s, but remember that truck is 5x139.7, not 6x135.

F-150 Black Wheels

Black is the most popular look on these trucks. Gloss black, like the TIS 544B, stays shiny and is easy to wipe down. Matte black, like the Mayhem Warrior or Black Rhino BASIN, looks tougher but holds onto grime. Satin, on the Vortek and Dropstars, sits in between. If you want black with some flash, the Cavallo CLV-22 and Gear 770BM add milled accents.

F-150 Chrome Wheels

Chrome still looks right on an F-150, especially on silver, white or black paint. The Moto Metal COMBAT is the loud option in 20x10 and 24x12. The AR893 MAINLINE is the clean, close-to-stock choice in 17 and 18 inch. If you want brightness without chrome upkeep, the LOCK COMBAT's machined finish is worth a look.

Fuel, Method and KMC Wheels for the F-150

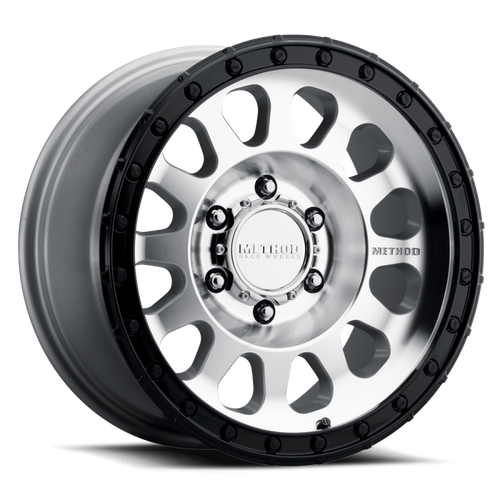

These are the three brands owners search for most. For Fuel, the WEAPON is the in-stock 6x135 design here, and you can see more in the Fuel 6x135 lineup. Several builds above run Fuel at 20x9 +1, 17x9 0 and 18x9 +20. For KMC, the CRUX covers 17x8.5 and 20x9, and the KMC 6x135 range has more. Method owners above run 18x9 0 with 305s. Browse the Method Race Wheels lineup for current designs.

F-150 Rims and Tires

If you're changing size or offset, buying wheels and tires together takes the guesswork out of matching them. Our truck wheel and tire packages pair the two for you. For sizing help from stock to lifted, read which tire sizes work at each ride height.

A Note for Lightning Owners

The Lightning uses the same 6x135 pattern, but it's a heavy truck. Check the load rating on any wheel before you buy it.

Shop F-150 Wheels by Year

2010 · 2012 · 2013 · 2014 · 2015 · 2016 · 2017 · 2018 · 2019 · 2020 · 2021 · 2023 · 2024 · 2025 · 2026

Still deciding? Browse our off-road wheel selection or the full truck wheel catalog and narrow it down by size and finish.

Questions

What bolt pattern does a Ford F-150 use?

2004 through 2026 trucks, including the Lightning, use 6x135 with an 87.1 mm center bore. Trucks from 1997 to 2003 came with either 5x135 or 7x150, so check yours in the fitment search.

Will 22 inch wheels fit an F-150?

Yes. One owner runs 22x12 -10 with 305-width tires on a 2018 for a poked-out stance. Expect a firmer ride than with 20s because the tire sidewall is shorter.

Are 17 inch wheels good for an F-150?

They're the best size for off-road use. Owners run 17x9 0 with 315-width tires on 2012 and 2016 trucks. Confirm brake clearance for your year in the fitment search.

What offset gives a flush look on an F-150?

Owners get a flush stance with 20x9 +20 and 18x9 +20 setups. Offsets near 0 start to poke past the fender.

Can I buy F-150 rims and tires together?

Yes. Wheel and tire packages pair a matched set for your truck, so you aren't guessing at sizes.

Do F-150 Lightning wheels need anything special?

The bolt pattern is the same, but the Lightning is heavy. Check the load rating on any wheel before you buy.
