Toyota Tacoma Wheels
In-stock wheels that fit the Toyota Tacoma
6x139.7 wheels in the 16, 17 and 18 inch sizes Tacoma owners run most. Every wheel that fits your Tacoma is in the full list below.
Every Tacoma since 2005 uses a 6x139.7 bolt pattern, but the 2024 and newer trucks changed the center bore and the factory offset, so not every wheel moves over cleanly. Below you'll find what fits each generation, which sizes owners actually run, and the in-stock designs worth a look in black, bronze and more. If you already know your size, jump straight into the 6x139.7 designs below.
Popular designs, side by side
Moto Metal 970
A long-running Moto Metal truck design in 16x8, 18x10 and 20x9, in gloss black with a machined face or gloss black with a spot-milled lip. It's sold in 6x120, 6x135 and 6x139.7, so on a Tacoma you need the 6x139.7 version. The 16x8 suits older trucks and stock-height builds. The 18x10 is a lot of wheel for a midsize truck.
Fuel 1PC WEAPON
A 20-inch-only design in 20x9 and 20x10 with a Platinum finish. It's for lifted Tacomas going for a show-truck look. One in-stock 20x10 runs a -18 offset, which pushes the wheel well past the fenders. On a 2024+ truck with its +60 factory offset, that's a big jump, so check fit before you order.
Black Rhino RAID
The loud pick here, in Gold, in 17x8.5 and 20x9.5. Gold looks best on white, black or gray trucks. The 17x8.5 is the trail-friendly size, while the 20x9.5 (+12 on one in-stock version) is for street-focused builds. Gold isn't subtle, so be sure you want people looking at your wheels.
KMC CRUX
A Gloss Gunmetal design in 18x9 and 20x9. Gunmetal splits the difference between black and silver, so it works if black feels too plain. The 18x9 at +0 is a good middle size for leveled trucks. There's no 17-inch option, so it's not the one for maximum sidewall.
Moto Metal COMBAT
A 20x10-only design in Chrome or Gloss Black Milled. One in-stock version sits at -18, which means aggressive poke. This is a lifted-truck wheel, not a stock-height one. Chrome takes more cleaning than black to keep looking right.
Vision Off-Road 350 Ojos
A Satin Black design in 17x9 and 18x9. The 17x9 -12 matches the spec one 2009 owner runs with 315s at nearly flush on a different wheel. It's a good pick for older trucks that want stance without going to 20s. Expect the -12 to stick out on a stock-height truck.
American Racing AR172 BAJA
A classic off-road look in 17x8 and 17x9, in Polished or Satin Black. Polished gives a retro, bright look that suits older Tacomas. Satin Black keeps it low-key. One in-stock 17x8 runs a 0 offset. Polished needs regular cleaning if you drive in salt or mud.
Fittipaldi Offroad FT111SB
A simple Satin Black wheel in 17x8.5 only, with a 0 offset on the in-stock version. It's the no-fuss choice for leveled 2005-2023 trucks that want a mild step out from stock. There's only one size and one finish, so you're not choosing much here.
Black Rhino Hard Alloys 200
A Matte Black design in 17x8.5 and 18x9, with a 17x8.5 +0 in stock. Matte black is the easiest way to toughen up any color truck. Pick the 17 if you want more tire sidewall for trails, or the 18 for a fuller look on the street.
Gear Off Road 763MB Raid
A 20-inch design in 20x9 and 20x10, with one 20x10 at -12. The finishes are listed by code (A258959 and A258963), so check the product photos to see exactly what you're getting. It's aimed at lifted trucks on big rubber.
Icon Alloys COMPRESSION
A Titanium finish in 17x8.5 and 18x9, with a 17x8.5 +0 in stock. Titanium is a gray-silver that doesn't fight any paint color, and it hides trail dust better than gloss black. It's a smart pick if you want something besides black or bronze.
Dirty Life Journey 9316
A 17x8.5 design in Matte Black or Matte Bronze, with a +0 version in stock. The Matte Bronze is the one to grab for the classic overland look. One size only, but it's the size most Tacoma owners end up running anyway.
Pro Comp Alloys HERITAGE
A throwback design in 16x8 and 17x8, in Matte Black or Polished. The 16x8 +0 Polished is one of the few true 16s here, which makes it a good match for 2005-2015 trucks that want old-school style and more sidewall. The 8-inch width keeps it from looking oversized on a smaller truck.
Enkei RPT1
A 17x9 design in Black or Titanium Gold. The Titanium Gold is softer than a straight gold or bronze, so it works if bronze feels overdone. Only one size, so check your offset in the fitment search before you commit.
fifteen52 ANALOG HD
A retro-styled wheel in 16x7.5 and 17x8.5, in Asphalt Black (satin black) or Peak Grey (gloss grey). The 16x7.5 is the narrowest wheel here, which suits stock-height trucks and owners who want a tall, skinny tire. Peak Grey is an unusual finish that stands out without being flashy.
9six9 SIX-1 Truck
Matte Black or Matte Bronze in 17x8.5 and 18x9. It's a straightforward overland-style wheel, and the bronze is a good alternative to the Dirty Life if you want an 18. Matte finishes look great but show grease and fingerprints more than gloss.
On real Tacomas
Customer builds from our fitment gallery, with the exact sizes they run.
Photos from customers in our fitment gallery. Click a car for its full setup.
Tacoma Bolt Pattern and Center Bore by Year
The bolt pattern hasn't changed since 2005. The hub has. Here's what each generation runs:
| Years | Bolt pattern | Center bore | Factory wheels |
|---|---|---|---|
| 1995-2004 | 5x114.3 or 6x139.7, depending on the truck (2WD vs 4WD) | 67.1 mm (5x114.3) / 106.1 mm (6x139.7) | 14 and 15 inch |
| 2005-2023 | 6x139.7 | 106.1 mm | 15 and 16 inch, +10 to +40 offset |
| 2024-2026 | 6x139.7 | 95.1 mm | 17x7 +60 |
If you have a 1995-2004 truck, look it up in the fitment search before buying. Two trucks from the same year can need completely different wheels.
2024 and newer owners: your truck has a smaller center bore and a much higher factory offset than the trucks before it. A wheel that bolts right up on a 2018 can sit way further out on a 2024. Run your exact truck through the fitment search to confirm the bore and offset before you order.
Tacoma Rims: 16 vs 17 vs 18 vs 20 Inch
17s are the sweet spot. They're the most stocked size by far, they clear the brakes, and they leave plenty of sidewall for the trail. Go up a size if you care more about street looks than off-road ride.
| Size | Good for | Designs to look at |
|---|---|---|
| 16 inch | Older trucks, max sidewall, retro look | Pro Comp Heritage, fifteen52 Analog HD, Moto Metal 970 |
| 17 inch | Most trucks, stock to lifted, trail use | Fittipaldi FT111SB, Dirty Life Journey, Icon Compression, AR172 Baja, Enkei RPT1 |
| 18 inch | Leveled street trucks, fuller look | KMC CRUX, 9six9 SIX-1, Black Rhino Hard Alloys 200 |
| 20 inch | Lifted show builds | Fuel WEAPON, Moto Metal COMBAT, Gear 763MB Raid |
16 Inch Wheels for Tacoma
A 16 is the closest you'll get to the factory feel on a 2005-2023 truck, and the tall sidewall soaks up washboard roads. Options include the Pro Comp Heritage 16x8 +0 in polished, the Ultra Menace 16x8 +10 in satin black, and the Ion Type 71 16x7 with a machined finish. On a 2024+ truck, a 16 isn't a given. Confirm brake clearance in the fitment search first.
Offset for Stock, Leveled and Lifted Tacomas
Offset decides where the wheel sits in the fender. Higher numbers tuck it in, lower and negative numbers push it out.
- Stock height: stay closer to the factory offset if you want zero rubbing worries. On 2024+ trucks that means a much higher number than older trucks run.
- Leveled: +25 to +35 sits flush on the builds below. 0 gives mild poke.
- Lifted: the negative-offset 20s in stock (-12, -18, -23) are built for this. They stick out, and that's the point.
Tire size depends on your lift, so check the stock-to-6-inch lift guide with 35s before you pick rubber. If you're still deciding on height, read up on the leveling kits worth running and the Tacoma lift kit roundup.
How These Sizes Look on Real Tacomas
These are actual customer trucks. The pattern is clear: +25 to +35 lands flush, and around 0 gives a little poke.

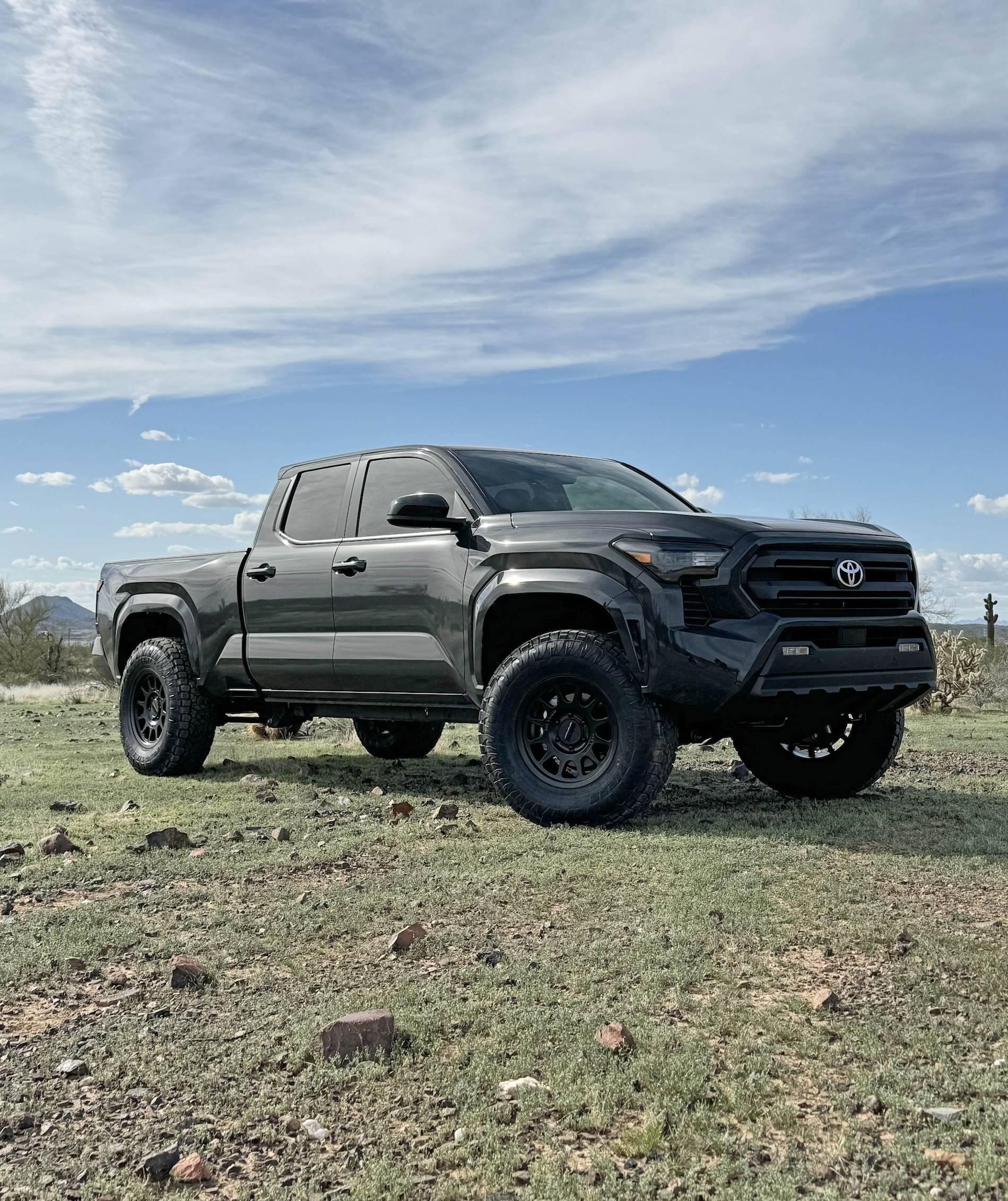

- 2025 on Method 703: 17x8.5 +35 with 285s, flush.
- 2024 on Method 305: 17x8.5 +25 with 275s, flush.
- 2025 on Black Rhino Stadium: 17x8 +35 with 295s, flush.
- 2025 on Method 315: 17x8.5 +0 with 285s, poke.

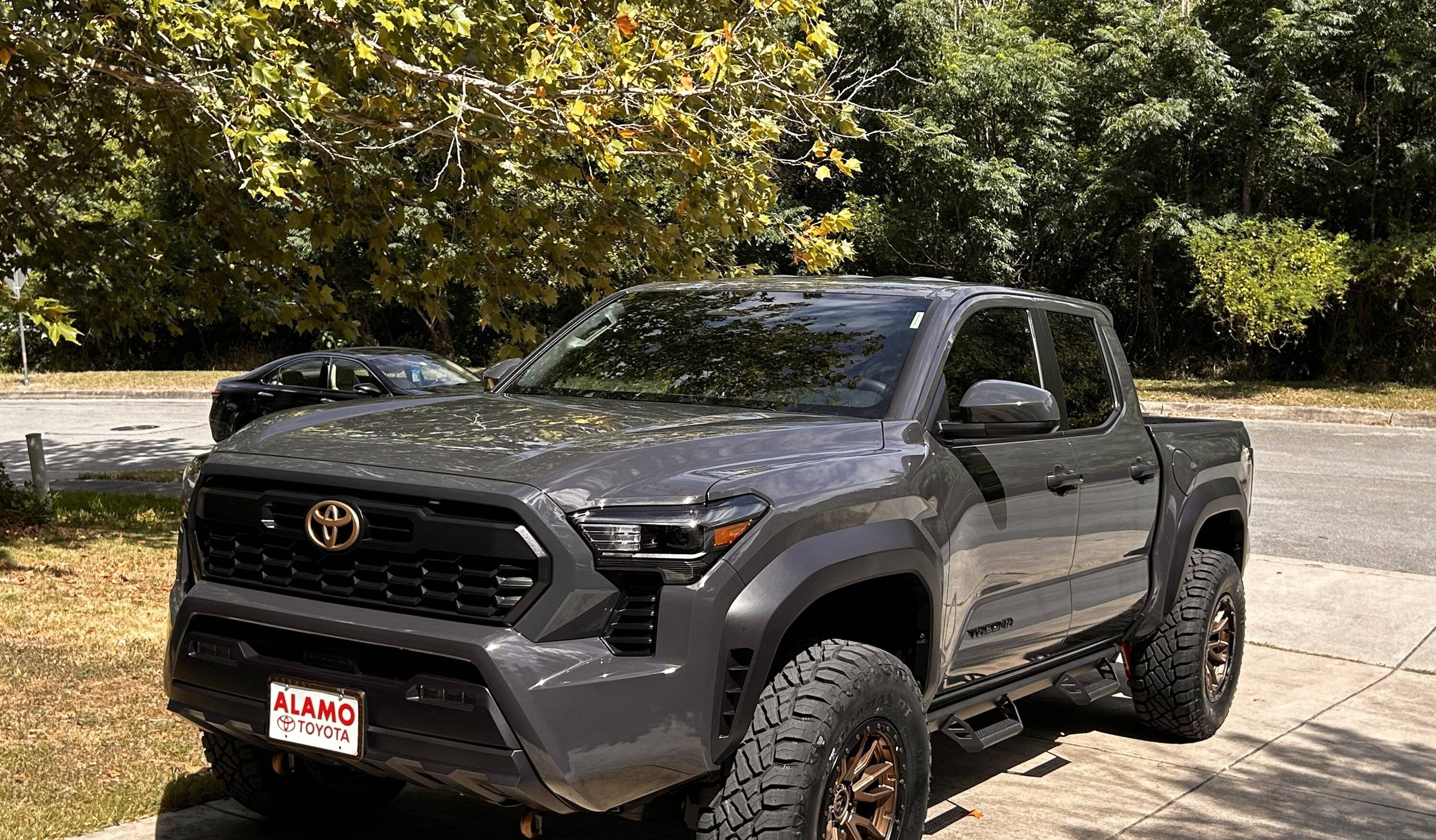

- 2024 on Fuel Rebel: 17x9 +1 with 285s, poke.

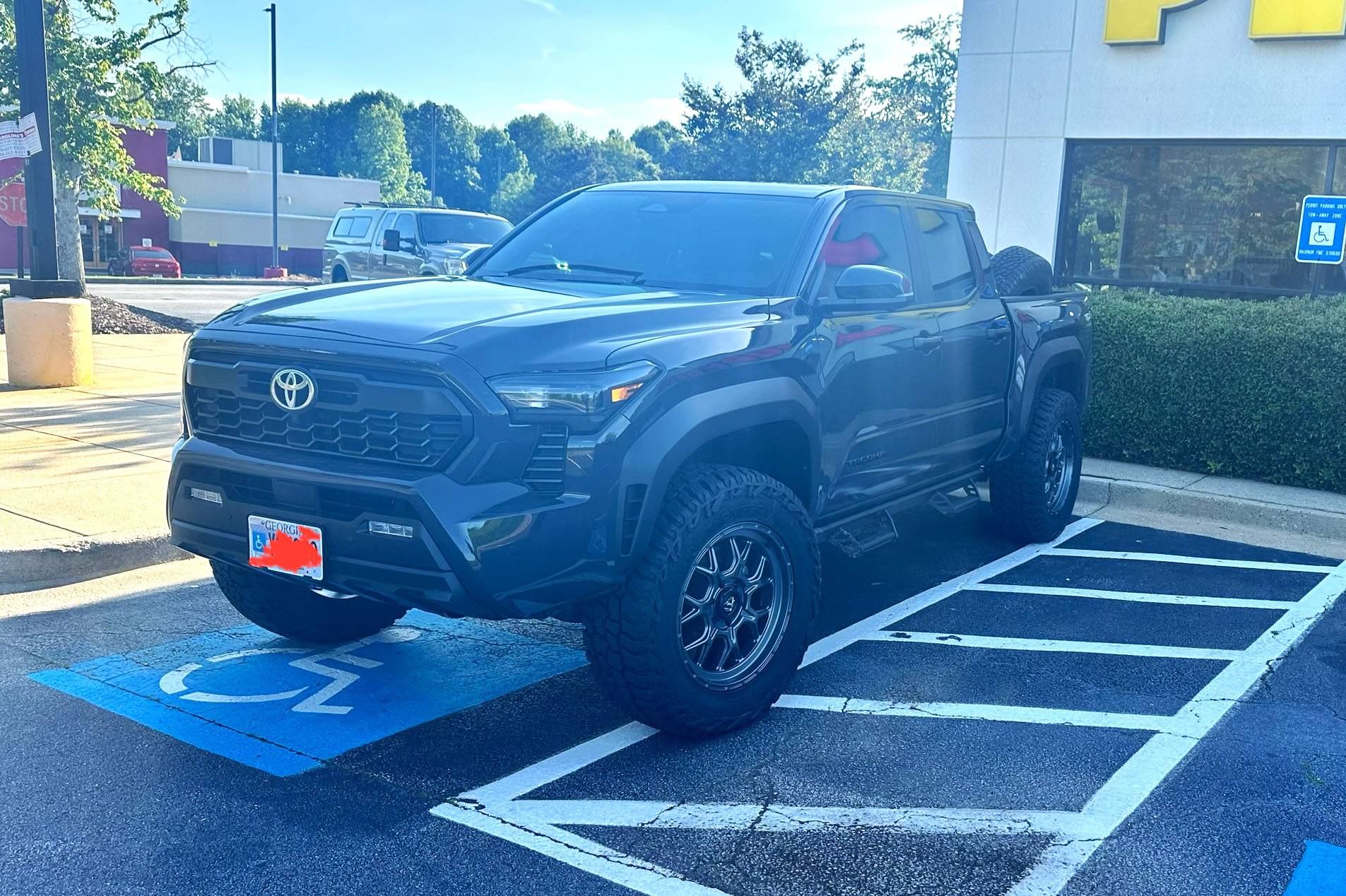

- 2024 on Fuel Tech: 20x9 +20 with 285s, sitting hellaflush.

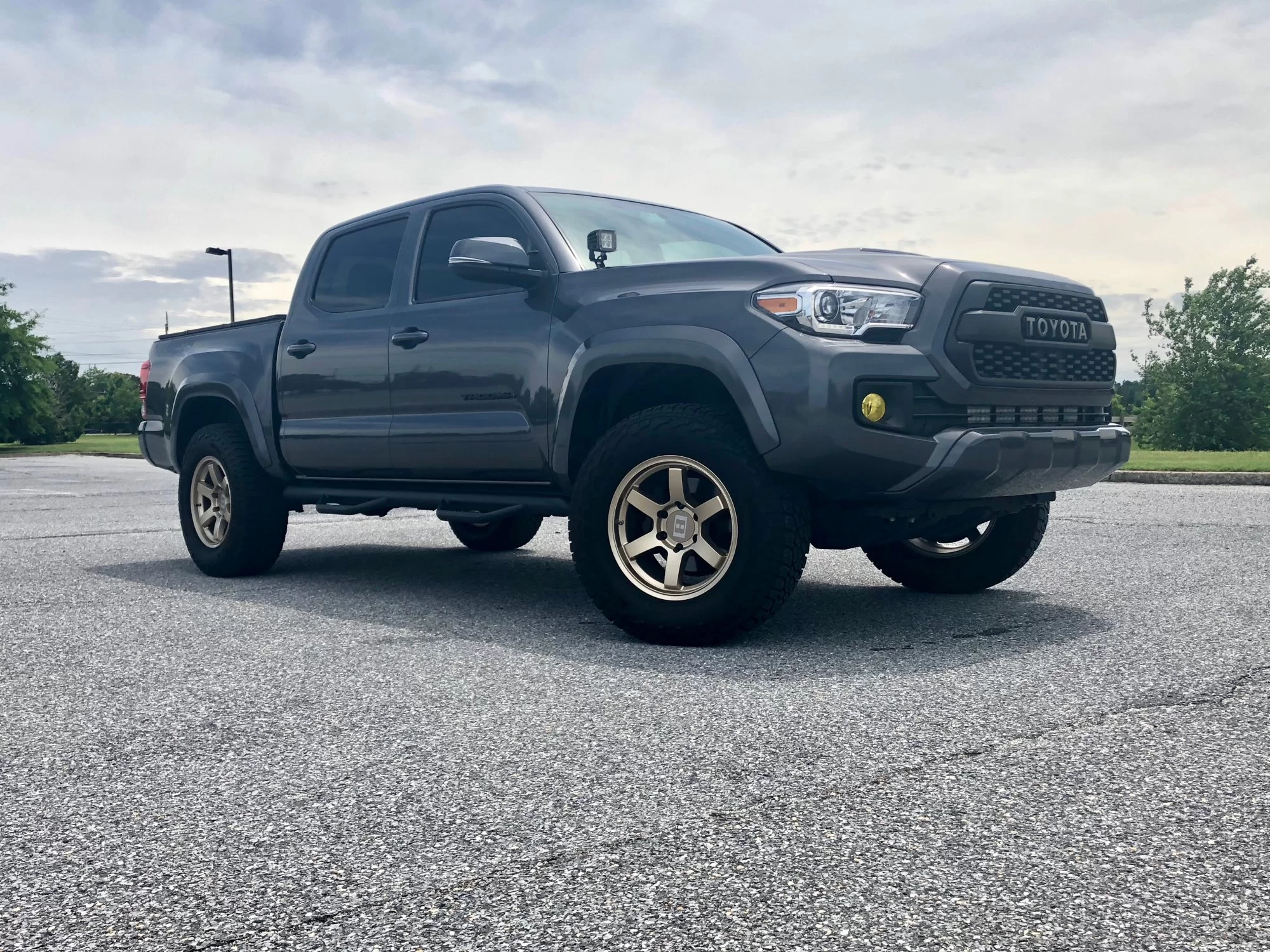

- 2018 on Level 8 MK6: 17x8 +0 with 265s, poke.
- 2018 on Stealth Custom Series F5: 16x8 +0 with 265s, poke.
- 2009 on TIS 556BA: 17x9 -12 with 315s, nearly flush.
Notice that 17x8.5 shows up again and again on the newest trucks. If you're unsure, start there.
Tacoma Black Wheels
Black works on every paint color and hides trail grime. Satin and matte look rugged. Gloss with milled accents looks dressier. For a plain, tough look, the Fittipaldi FT111SB 17x8.5 in satin black and the Black Rhino Hard Alloys 200 in matte black are easy calls. If you want milled details on a lifted truck, the Tuff T1B 20x10 -23 gloss black milled goes all in. There's more in the Black Rhino six-lug lineup too.
Tacoma Bronze Wheels
Bronze is the overland look, and it's one of the most stocked finishes we carry. It looks best on white, gray, tan and army green trucks. The Dirty Life Journey 17x8.5 +0 in matte bronze is a solid default. The Mayhem Ridgeline 17x8.5 -6 with a black lip adds contrast and a bit more stance. For a softer take, the Enkei RPT1 in Titanium Gold works. See every bronze and gold option in one place.
Tacoma Method Wheels
Method is the name most Tacoma owners search first, and three of the builds above run them in 17x8.5 at +35, +25 and 0. In stock right now is the MR105 Beadlock in 17x8.5 0 offset matte black, listed with a 108 mm center bore. Browse the rest of the Method race wheel lineup, and 2024+ owners should check bore and offset in the fitment search.
Tacoma Fuel Wheels
Fuel leans big and aggressive. The Fuel WEAPON 20x10 -18 in Platinum is a lifted-truck wheel through and through. The Chisel is also in the catalog. Two of the customer trucks above run Fuel: a 17x9 +1 and a 20x9 +20. Find all the Fuel one-piece wheels in 6x139.7.
KMC Wheels for Tacoma
KMC sits between trail and street. The KMC CRUX 18x9 +0 in gloss gunmetal suits a leveled truck that spends most of its time on pavement. The Wrath is the other KMC design in the catalog. Check the full KMC six-lug selection.
How to Choose
- Mostly trail, any year: 17x8.5 in satin or matte black or bronze.
- Older truck, retro look: a 16 or the polished AR172 Baja.
- Leveled daily driver: 17 or 18 at +25 to +35 for flush.
- Lifted show build: 20x10 with negative offset.
Still browsing? Our off-road wheel collection covers the trail-focused designs.
Tacoma Rims and Tires
Buying both at once saves guessing. Our wheel and tire packages for trucks pair them for you. For tire sizing on 2016-2023 trucks, the 3rd-gen wheel and tire guide goes deep.
Wheels by Model Year
Want options narrowed to your exact truck? Jump to 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025 or 2026.
Not sure what fits? Put your exact truck into the fitment search, or browse every 6x139.7 wheel in stock.
Questions
Will wheels from my 2005-2023 Tacoma fit a 2024 or newer?
Not always. The bolt pattern is the same, but 2024+ trucks have a 95.1 mm center bore instead of 106.1 mm and a much higher factory offset. Check your exact truck in the fitment search before swapping.
Will a 6x135 wheel fit a Tacoma?
No. Tacomas use 6x139.7, or 5x114.3 on some 1995-2004 trucks. Designs like the Moto Metal 970 come in more than one pattern, so make sure you pick the 6x139.7 version.
What size rims are best for a Tacoma?
17 inch for most trucks. It's the most stocked size, it leaves good sidewall for off-road, and 17x8.5 is what most newer-truck owners end up on.
What offset gives a flush look on a Tacoma?
On customer trucks, +25 to +35 lands flush and around 0 gives mild poke. Your result depends on year, lift and tire width, so confirm in the fitment search.
Can I get Tacoma wheels and tires together?
Yes. Truck wheel and tire packages pair the two so you don't have to match them yourself.
Do 20 inch wheels work on a Tacoma?
They do, but most in-stock 20s are 9 to 10 inches wide with negative offsets meant for lifted trucks. Expect less sidewall and a rougher ride off-road than with 17s.
