Audi B8 S4 6MT Build Guide: 3.0T Mod Order That Works

The Audi B8 S4 6MT is one of the most tune-responsive platforms in the German performance world, and it's still sitting at bargain prices while everyone fights over B5 S4s and overpays for C6 RS6 examples. The 3.0T supercharged V6 with a manual gearbox and Quattro all-wheel drive is a combination that shouldn't exist at this price point — and a Stage 1 ECU flash on 93 octane puts you in the 410–430 whp range with zero hardware changes. Here's how to build one properly, from maintenance baseline through pulley upgrades and wheel fitment.

Quick links

• Why the B8 S4 6MT matters right now
• Start with maintenance, then flash
• Pulleys unlock the real power
• Clutch and drivetrain upgrades
• 19x9.5 ET35 is the proven fitment
• Suspension setup that matches the power
• Go find a clean 6MT

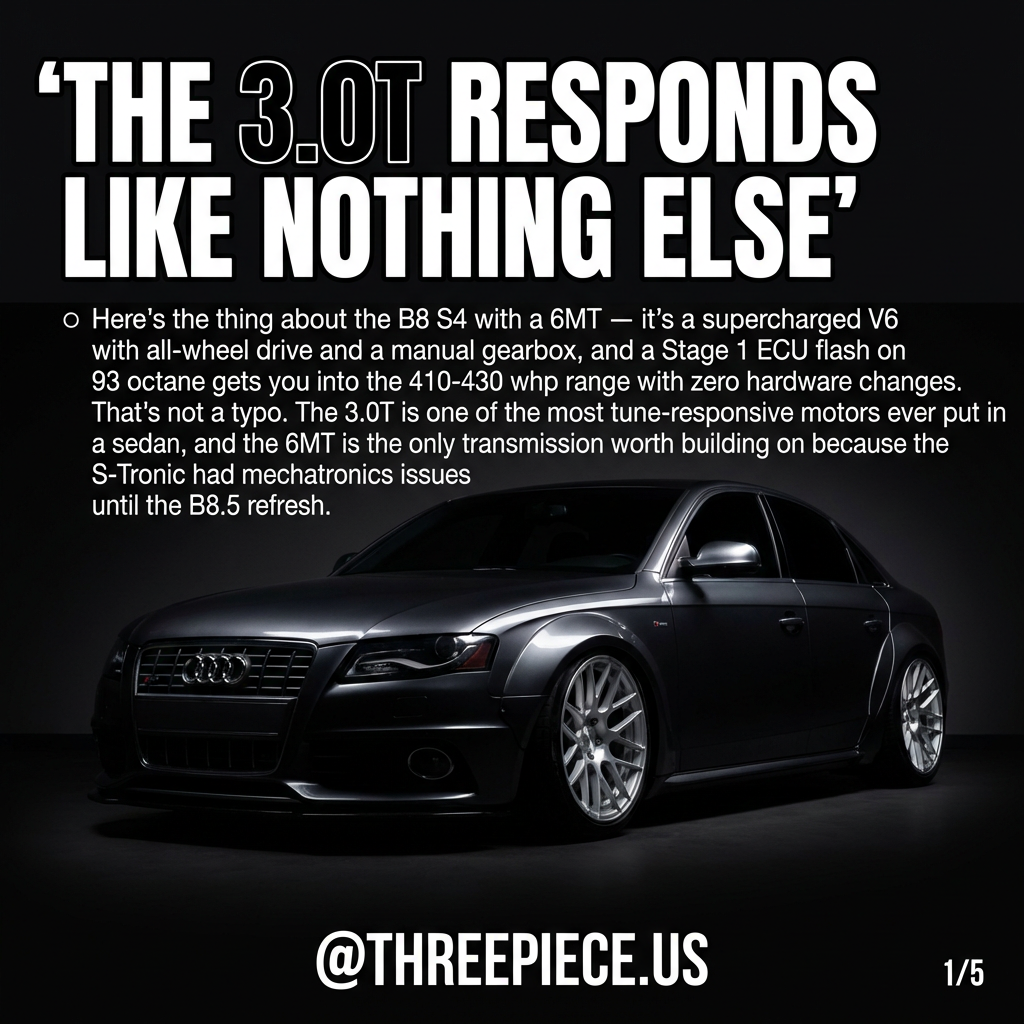

Why the B8 S4 6MT matters right now

The B8 S4 (2008–2013) uses Audi's 3.0L TFSI supercharged V6, making roughly 333 hp and 325 lb-ft stock. That's the starting point. The supercharger means instant boost response that turbocharged competitors can only dream about — there's no lag, no spool, just linear power delivery the moment you open the throttle. The 6MT is the only transmission worth building on because the S-Tronic dual-clutch had mechatronics issues until the B8.5 refresh. If you're buying one to actually drive, the manual is non-negotiable.

What makes this platform special is the aftermarket depth. IE (Integrated Engineering), 034 Motorsport, APR, Unitronic, and others have been developing parts for this motor for over a decade. The tuning ecosystem is mature, the failure modes are documented, and the community on Audizine and Reddit has already figured out what works and what doesn't. If you've been reading our breakdown of Stage 1 vs Stage 2 tune results, the B8 S4 3.0T is one of the best real-world examples of what a proper ECU calibration can do. And if you're comparing this to other German manual sedans, check out our F30 335i N55 6MT build guide — the S4 trades some top-end for a far more predictable power curve and better traction through Quattro.

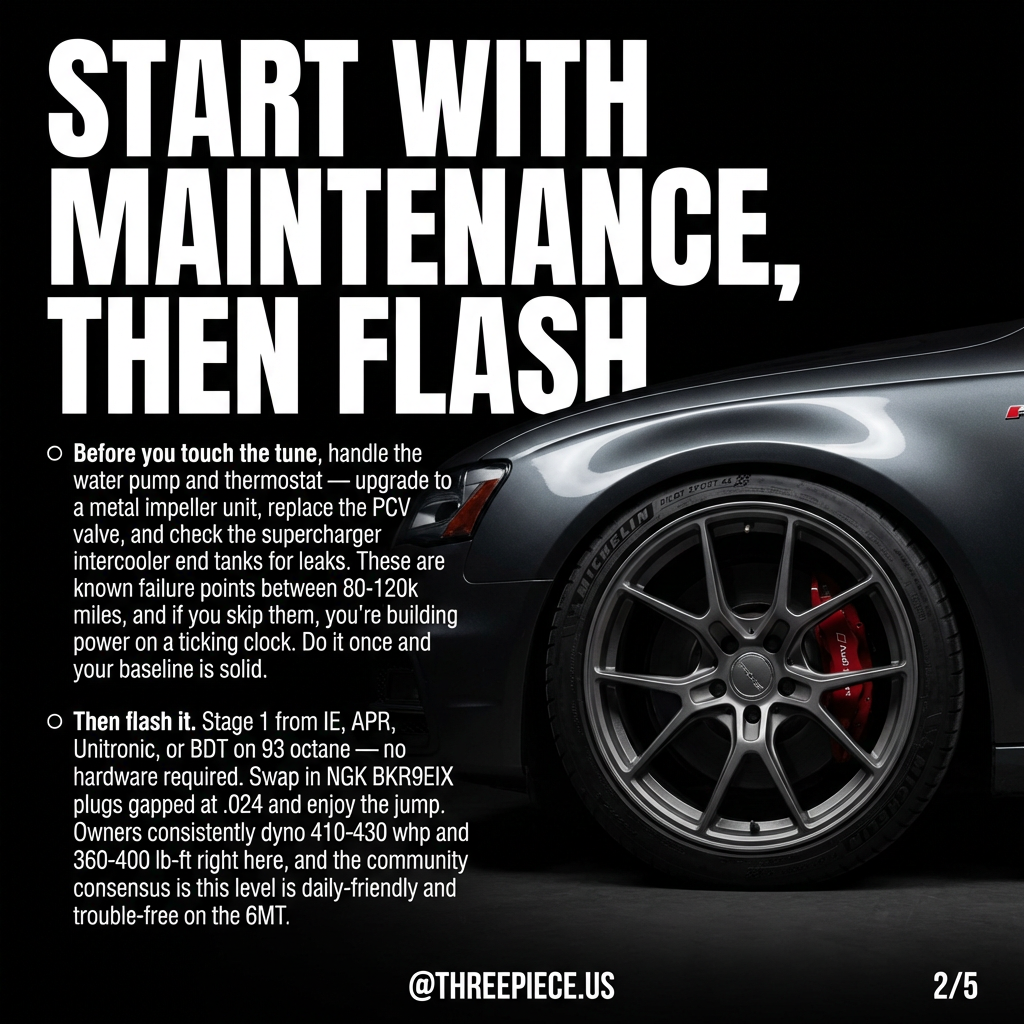

Start with maintenance, then flash

Before you touch the tune, handle the known failure points that show up between 80,000–120,000 miles. Replace the water pump and thermostat — upgrade to a metal impeller unit. Replace the PCV valve. Inspect the supercharger intercooler end tanks for leaks. Check the control arm bushings and motor mounts, both of which tend to wear by this mileage. If you skip these items, you're building power on a compromised foundation and you'll be chasing problems instead of enjoying the car.

Once the baseline is solid, flash it. A Stage 1 ECU tune from IE, APR, Unitronic, or BDT on 93 octane requires zero hardware changes. Swap in NGK BKR9EIX plugs gapped at .024" and you're set. Owners consistently dyno 410–430 whp and 360–400 lb-ft at this level, and the community consensus is that Stage 1 is daily-friendly and trouble-free on the 6MT. This is the best power-per-dollar mod on the entire platform, and it's where every B8 S4 build should start. Our deep dive on whether cold air intakes are worth it applies here too — on a supercharged motor, the intake upgrade matters more at Stage 2 than Stage 1.

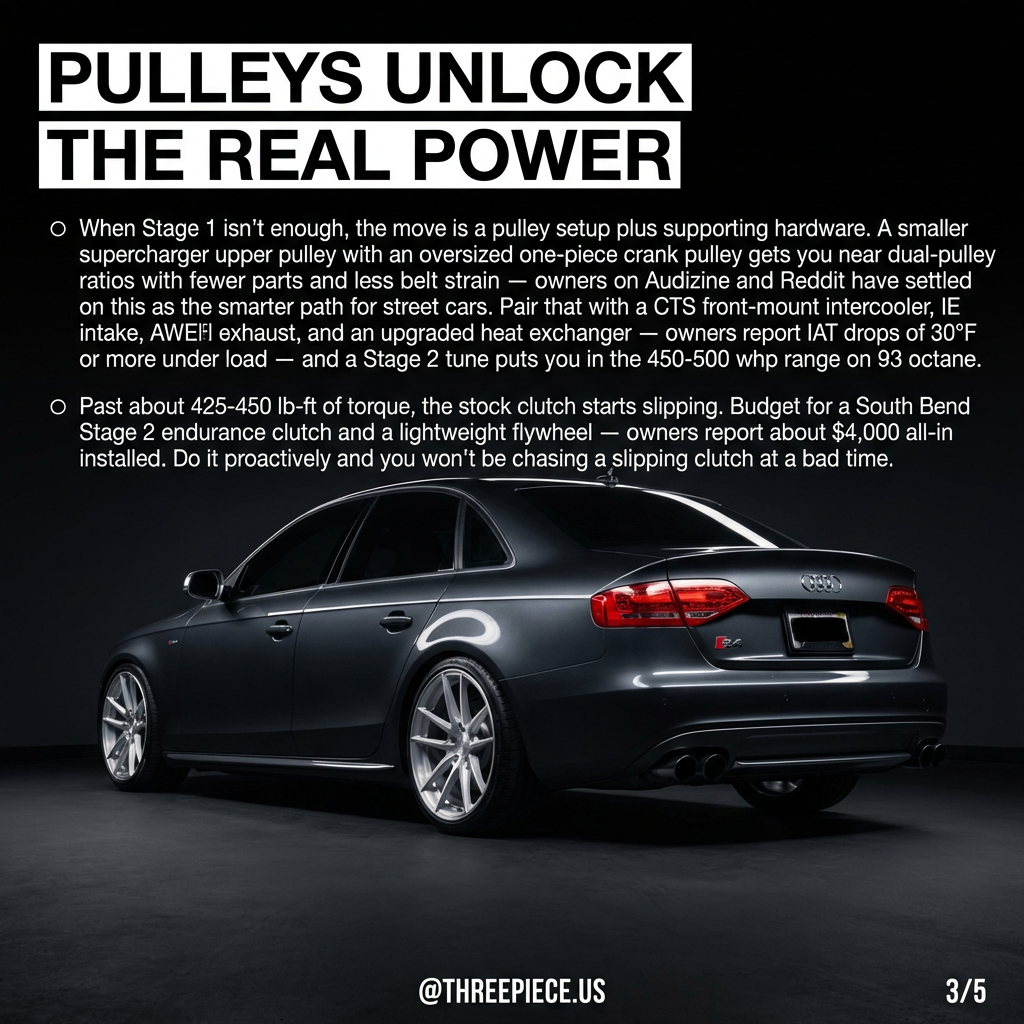

Pulleys unlock the real power

When Stage 1 isn't enough, the move is a pulley setup plus supporting hardware. The 3.0T's Eaton supercharger spins at a ratio determined by the upper (supercharger) pulley and the lower (crank) pulley. A smaller upper pulley paired with an oversized one-piece crank pulley (like IE's 188mm or 207mm options) gets you near dual-pulley boost ratios with fewer parts and less belt strain. Owners on Audizine and Reddit have settled on this single-crank-plus-upper approach as the smarter path for street cars — dual pulley kits work, but the belt strain and noise issues are documented.

Pair the pulleys with a CTS front-mount intercooler, IE intake, AWE Touring exhaust, and an upgraded heat exchanger. The heat exchanger is critical — owners report IAT drops of 30°F or more under sustained load, which prevents heat soak and preserves power in back-to-back pulls. With a Stage 2 tune on 93 octane, you're looking at 450–500 whp. One documented build with IE dual pulley, ECS throttle body, intake, and exhaust put down 415 whp / 385 lb-ft on 93 at the wheels. IE's own spec for their dual pulley kit claims up to 548 hp at the flywheel.

Clutch and drivetrain upgrades

Past about 425–450 lb-ft of torque, the stock 6MT clutch starts slipping. This is well-documented across builds — don't wait for it to happen at a bad time. Budget for a South Bend Stage 2 endurance clutch and a lightweight flywheel. Owners report about $4,000 all-in installed for this job. Do it proactively when you do the pulley work and you won't be chasing a slipping clutch mid-season.

Beyond the clutch, address the drivetrain mounts. 034 Motorsport motor mounts and ECS drivetrain mounts reduce slack and wheel hop under hard launches — the stock rubber mounts are typically shot by the time you're adding power. A Can Auto short shifter tightens up the throws and makes the 6MT feel like a proper performance gearbox instead of Audi's somewhat vague stock linkage. If you're building any manual car to this power level, our guide on whether coilovers are worth it for daily drivers covers the same philosophy — address the weak links before adding more capability.

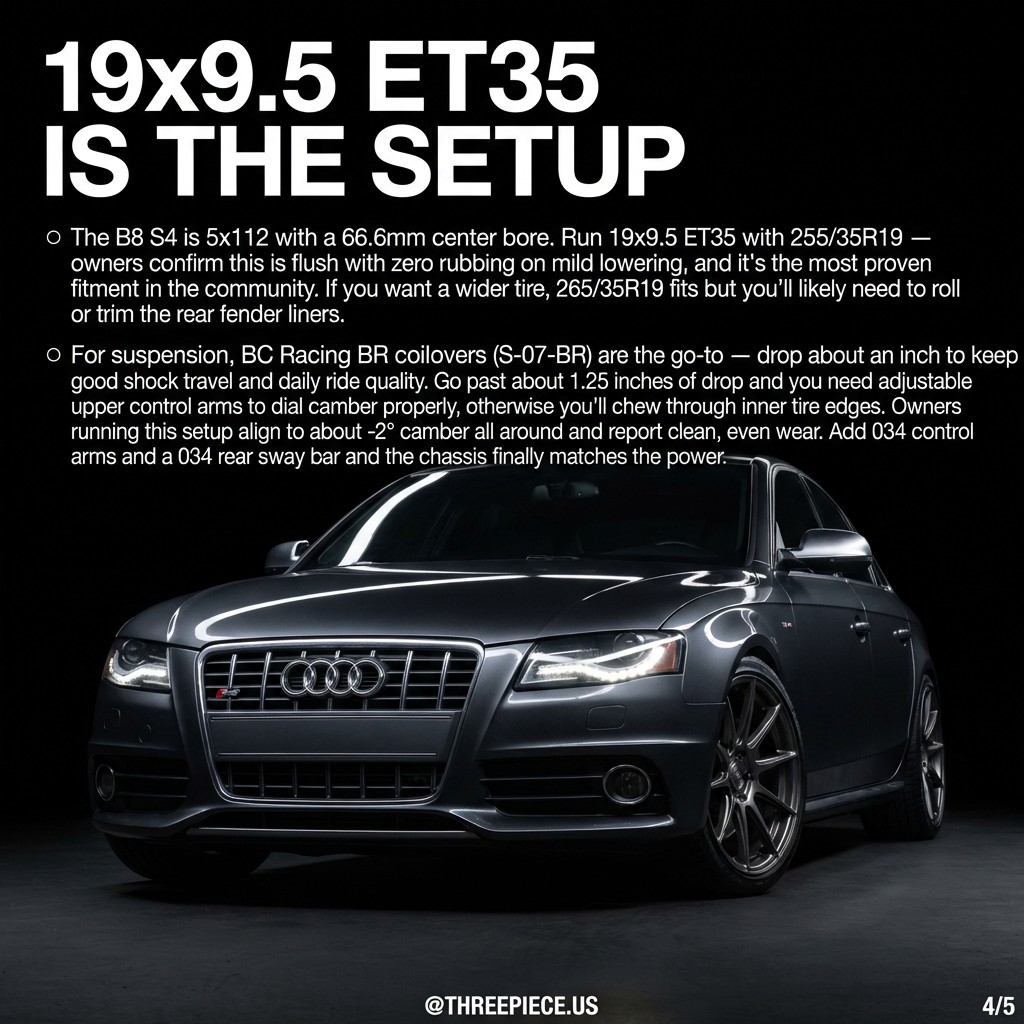

19x9.5 ET35 is the proven fitment

The B8 S4 runs a 5x112 bolt pattern with a 66.6mm center bore. The community-proven fitment is 19x9.5 ET35 with 255/35R19 tires — this sits flush with zero rubbing on mild lowering and is the most documented setup across Audizine builds. If you want a wider tire, 265/35R19 fits but you'll likely need to roll or trim the rear fender liners.

For tires, the American Roadstar Sport AS 255/35R19 at $104 is an excellent budget all-season option that gets the car rolling on the right size while you plan your setup. If you want serious grip for spirited driving, the Michelin Pilot Sport 4 S 255/35R19 at $338 is the benchmark performance tire in this size — the PS4S is what most owners end up on once they've sorted the power. Browse 19x9.5 wheels in 5x112 to see what's currently available for the platform.

If you're running 3-piece wheels on a B8 S4, the Work Emotion series and Work VS series both look exceptional on the B8's wide fenders. For inspiration, check the ThreePiece vehicle gallery — there are plenty of Audi builds running aggressive 3-piece setups. If you need hubcentric rings to adapt from a 73.1mm wheel bore to the S4's 66.6mm hub, grab those before mounting.

Suspension setup that matches the power

For suspension, BC Racing BR coilovers (S-07-BR) are the go-to for the B8 platform — drop about an inch to keep good shock travel and daily ride quality. Go past about 1.25 inches of drop and you need adjustable upper control arms to dial camber properly, otherwise you'll chew through inner tire edges. Owners running this setup align to about -2° camber all around and report clean, even wear. If you're unsure whether coilovers make sense for your use case, read our breakdown on the expensive mistake most coilover buyers make — it applies directly to the B8 platform.

Add 034 Motorsport adjustable upper control arms and a 034 rear sway bar and the chassis finally matches the power. The stock B8 S4 understeers more than it should — the rear sway bar corrects the balance and the adjustable arms let you set camber precisely after lowering. The Bilstein B12 Audi A5 Quattro suspension kit at $966 is worth noting here — the B8 A5 and S4 share the MLB platform, and Bilstein's B12 kit is a proven OE+ upgrade if you want a more refined ride quality than budget coilovers without going full adjustable. Confirm fitment for the S4 variant before ordering.

For anyone building a B8 S4 alongside another German manual project, our E90 335i N54 6MT build guide covers similar suspension philosophy on a comparable platform — the principles of ride height, camber correction, and sway bar tuning translate directly.

Go find a clean 6MT

Look for a 2010–2013 B8 S4 with service records showing the water pump, thermostat, and PCV already done — that's your ideal donor. Flash it Stage 1 and drive it for a season while you plan the pulley and clutch work. You're looking at a car that goes from a quiet luxury sedan to 450-plus whp with bolt-ons, still daily drives in any weather through Quattro, and sounds incredible through an AWE exhaust at full tilt.

The B8 S4 6MT is one of the most underpriced performance platforms out there right now. Clean manual examples are affordable but climbing — the S-Tronic cars will always be around, but the manuals won't. If you've been comparing this to other manual sedans in the price range, check out our VW Golf R Mk7 buying guide for another VAG platform that shares some DNA, or our underrated project cars under $20K list if you want more options in this price range.

When you're ready to finish the look, browse wheels and suspension at ThreePiece.us — we stock everything from 3-piece forged wheels to wheel accessories and 90-degree valve stems at $3.80 for deep-dish fitments. Stop circling listings and go buy one.
