Dually Wheels
In-stock dually wheels
339 in stock and ready to ship. Click any wheel for sizes and finishes.
Dually wheels for Ram 3500, Ford F-350 and F-450, and Chevy or GMC 3500 trucks, in stock and ready to ship. A dually set is six wheels, and the fronts, rear outers and rear inners are different parts with very different offsets. Pick a design below, then confirm your bolt pattern in the fitment search before you order.
Every dually design we stock
Fuel 1PC ARC DUALLY
The ARC is the most-stocked dually design on this page. It comes in 20x8.25 and 22x8.25 across 8x165.1, 8x200, 8x210 and 10x225, so most dually owners have an option. Pick Blackout for all black, Gloss Black Milled for bright cut edges on black, or Polished for full bright metal. Offsets run +104 up front and -201 on the polished rear. Polished looks best clean, so plan on regular polishing.

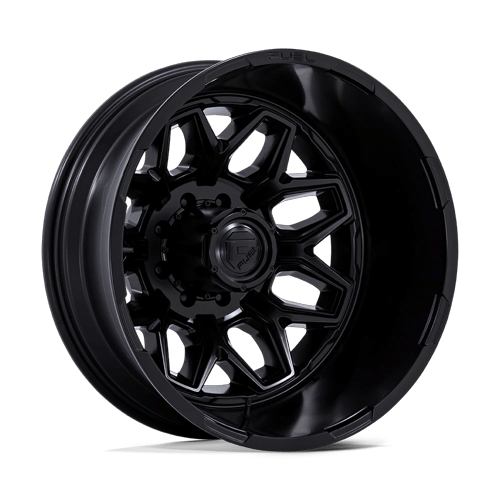

Fuel 1PC FLUX DUALLY
The FLUX is the only Fuel dually here offered in 8x170, and the only one with a bronze finish. Sizes are 20x8.25 and 22x8.25 in 8x165.1, 8x170, 8x200 and 8x210. Finishes are Blackout, Platinum Bronze, and gloss black with a brushed gray face. There's no 10x225 version, so 10-lug owners should look at the ARC or Circuit.

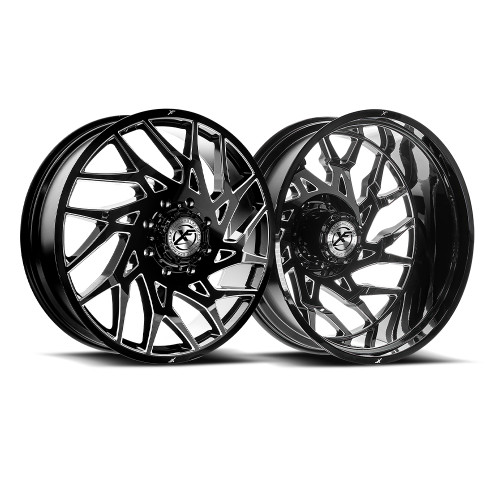

XF Dually XF-229 Dually
The XF-229 runs from 20 all the way to 26 inches, all in an 8.25 width. It covers 8x165.1, 8x200, 8x210 and 10x225. The only finish is Gloss Black & Milled. Offsets include +110 for fronts and -202 or -227 for rear outers. If you want a 24 or 26 on a dually, this is one of the few designs that goes that big.
XF Dually XF-240 Dually
The XF-240 shares the XF-229's sizes (20, 22, 24 and 26 x8.25), its four bolt patterns, and its Gloss Black & Milled finish. That makes choosing between the two purely about which face you like. Offsets listed are +110 front and -202 rear outer. It has one less rear offset than the 229, so check that the -202 works for your truck.
Fuel 1PC CIRCUIT DUALLY
The Circuit is Fuel's straight gloss black dually, with no milling and no polish. It comes in 20, 22 and 24 x8.25, which makes it the only Fuel dually here that reaches 24 inches. Bolt patterns are 8x200, 8x210 and 10x225, with +105 fronts and -202 rears. There's no 8x165.1 version, so 8x6.5 trucks need a different design.
XF Dually Dually Inner
This is the plain gloss black inner rear wheel made to go behind XF's dually outers. It's sized 20 to 26 x8.25 in all four XF bolt patterns, at a +115 offset. Since it's mostly hidden behind the outer, looks matter less than matching the diameter and pattern of your outers.

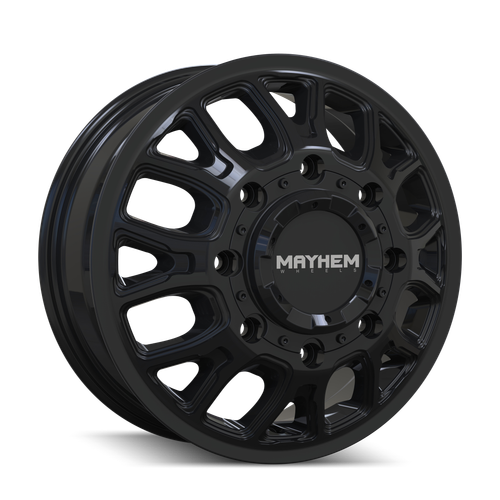

MAYHEM COGENT DUALLY (8107D) GLOSS BLACK
The Cogent in gloss black comes in 17x6.5 and 20x8. The listings are split by mounting spec numbers like 121.3mm, 142mm and 154.2mm rather than one simple bolt pattern. A 17x6.5 that keeps more tire sidewall is a good fit for work trucks. The trade-off is that you need to match those exact numbers to your truck, so use the fitment search instead of guessing.
American Racing AR204 BAJA DUALLY
The AR204 Baja is a small-diameter dually sold as separate front and rear parts, with +111 fronts and -134 rears. Sizes are 16x6, 17x6 and 17x6.5 in 8x165.1, 8x170 and 8x210. You can get it in polished or satin black. It suits trucks that tow and haul and want a taller tire, though it won't give the big-wheel look of a 22.

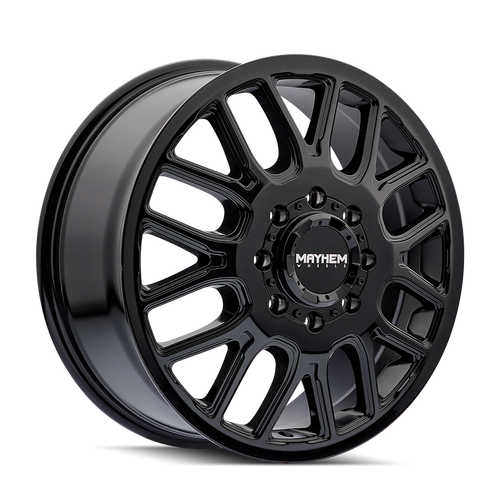

MAYHEM COGENT DUALLY (8107D) GLOSS BLACK MILLED
This is the same Cogent design with milled accents cut into the black, in larger 20x8 and 22x8 sizes. It's the dressier Cogent for trucks that want a 20 or 22 without going to 8.25 width. Like the other Cogents, listings are split by mounting numbers such as 115mm, 142mm and 154.2mm. Confirm yours before ordering.
Ultra 02P Modular Dually
The 02P is a 16x6 polished dually in 8x165.1 and 8x170. It's the most traditional, all-bright option here. Offsets include 102 and -125. Expect to keep up with polishing, and 16x6 is the only size offered.
MAYHEM COGENT DUALLY (8107D) POLISHED
This is the polished Cogent, offered only in 17x6.5. It's the bright-metal version of the same design, with listings split by mounting numbers like 121.3mm, 142mm and 154.2mm. It works well on a work truck that still wants some shine. Polished takes more upkeep than the gloss black Cogents.

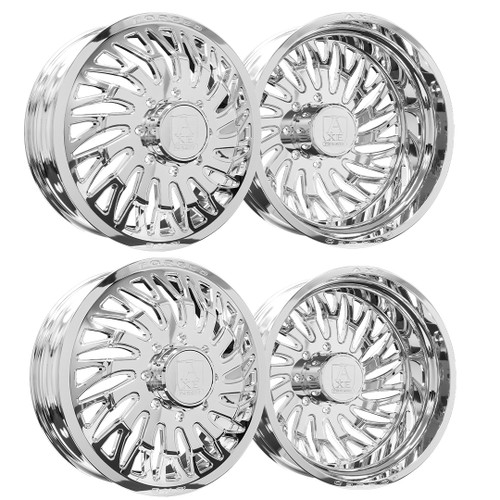

AXE WHEELS AF10 DUALLY
The AF10 is a big-wheel show option, in 24x8.25 and 26x8.25. It comes in 8x200 and 8x210 with Fully Polished or Gloss Black Milled finishes. If you want maximum diameter with shine, this is it. Expect low-profile tires and a firmer ride at these sizes.

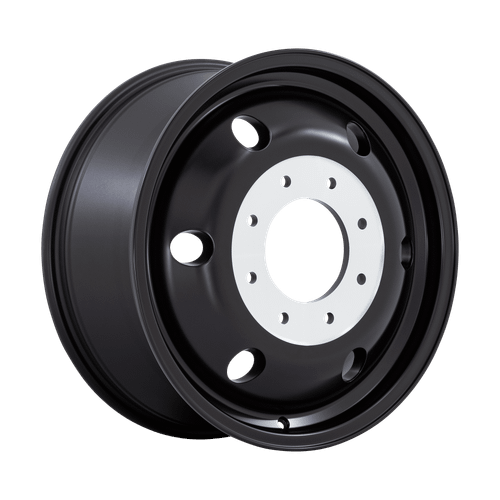

XD XD INNER REAR DUALLY
This is XD's inner rear wheel in 20x7.5, 20x8.25 and 22x8.25, covering 8x165.1, 8x170, 8x200 and 8x210. It comes in gloss black or satin black, with a +115 offset on the satin 8x200. It's one of the few inners here offered in 8x170. There's no 24 or 26.
Fuel 1PC DUALLY INNER
This is Fuel's gloss black inner rear, in 20, 22 and 24 x8.25 at +116 or +118. Bolt patterns listed are 10x225 and 8x200 only. That means 8x165.1 and 8x210 Fuel builds need a different inner, so check before you assume it matches your ARC or FLUX.
Ultra 002FBK Modular Dually
The 002FBK is the gloss black version of Ultra's modular dually, in 16x6 and 17x6.5. It covers 8x165.1, 8x170 and 8x200. It's a clean, low-key choice for trucks that work for a living. Size choices stop at 17.
Ultra 003SB Hunter Dually
The Hunter is a 16x6 dually in gloss black with milled accents. It's the only design on this page in six-lug, offered in 6x180 and 6x205. If your dually isn't eight- or ten-lug, start here. There's just one size and one finish.

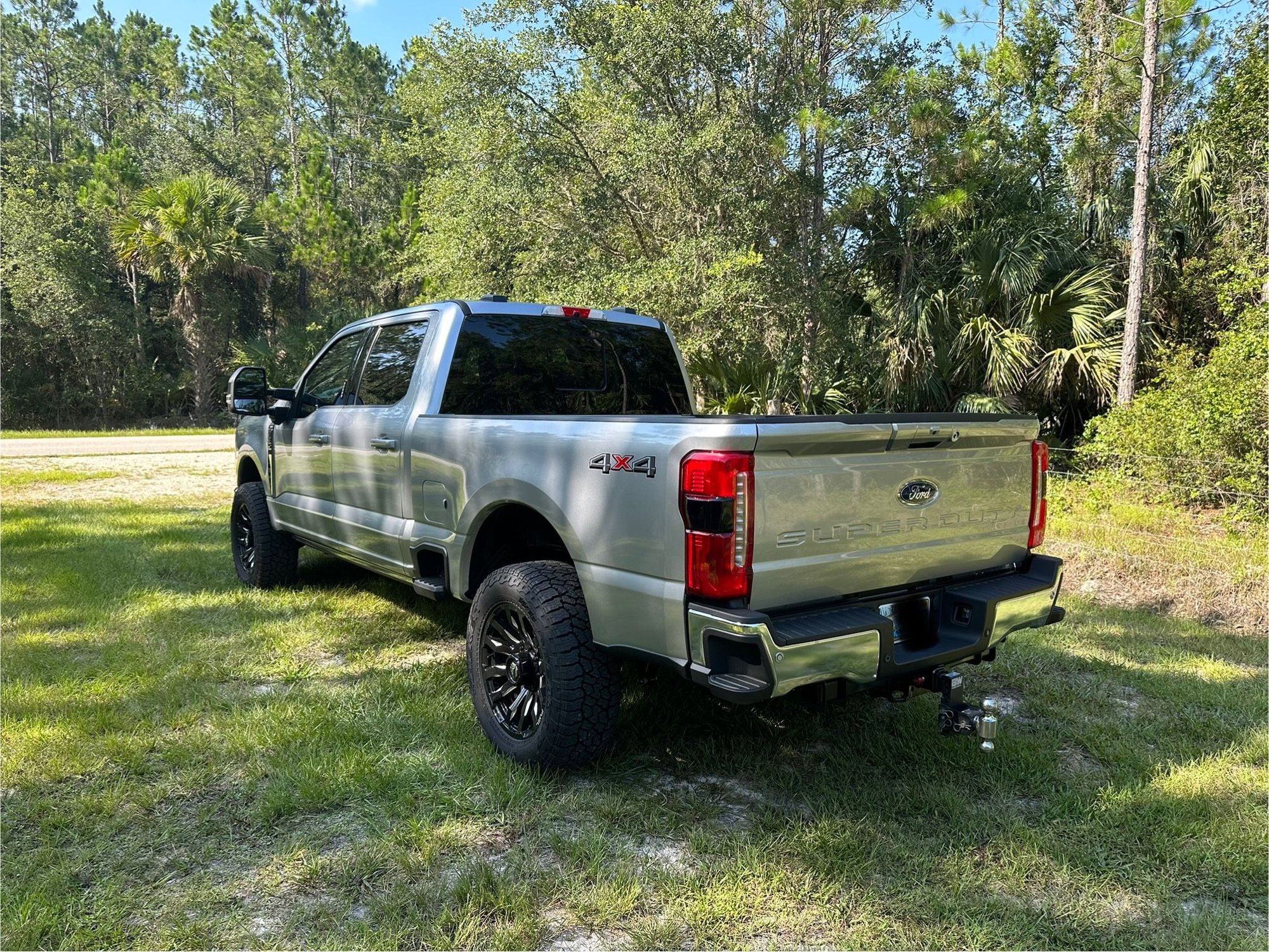

Dually wheels on real trucks
Customer builds from our fitment gallery, with the exact sizes they run.
Photos from customers in our fitment gallery. Click a car for its full setup.
What comes in a dually wheel set
A dually runs six wheels, not four. There are two fronts, two rear outers and two rear inners. All three are different parts. The front sits on a hub that sticks out far, so it needs a high positive offset. The rear outer has to reach past the inner wheel, so it uses a deep negative offset. The inner sits tucked behind it with its own positive offset.
Many designs here sell the inner as its own plain black wheel, like the XF Dually Inner, Fuel Dually Inner and XD Inner Rear. You only see a sliver of it, so nobody needs a fancy inner. Other designs, like the American Racing AR204, are listed as front and rear parts. Grab the AR204 polished front in 8x165.1 and the matching -134 polished rear, and you can see how the offsets differ.
Why you can't use regular wheels on a dually
Regular truck wheels don't come anywhere near dually offsets. Put one on a dually and it won't space the rear tires apart correctly or line up on the front hub. Buy parts labeled dually, and buy the right position for each corner. Here's what the offsets look like in what we stock:
| Position | Offset examples in stock | Example designs |
|---|---|---|
| Front | +104, +105, +110, +111 | Fuel ARC, Fuel Circuit, XF-229/240, AR204 |
| Rear outer | -134, -201, -202, -227 | AR204, Fuel ARC, Fuel Circuit, XF-229 |
| Rear inner | +100, +115, +116, +118 | XF Dually Inner, XD Inner Rear, Fuel Dually Inner |
Dually bolt patterns we stock
- 8x165.1 (8x6.5): the most common pattern in our dually stock. Browse every 8x165.1 / 8x6.5 wheel.
- 8x210 and 8x200: well covered by Fuel, XF and Axe.
- 10x225: Fuel ARC, Fuel Circuit, the XF line and the Fuel inner.
- 8x170: Fuel FLUX, AR204, Ultra and the XD inner. See all 8x170 wheels.
- 6x180, 6x205 and 10x285.75: a handful of options, including the Ultra Hunter and the six-lug Aliso in matte black.
Ram 3500, F-350, F-450 and Chevy 3500 dually wheels: check your truck first
Dually trucks have changed bolt patterns between model years. A wheel that fits one generation of Ram 3500 or F-450 may not bolt onto the next. Don't go by what a buddy's truck runs. Enter your exact year, make and model in the fitment search, and only look at wheels that match. That goes for Chevy and GMC 3500 duallys too.
Sizes: 16 to 26 inch dually wheels
| Diameter | Designs offered | Good for |
|---|---|---|
| 16 inch | Ultra 02P, Ultra 002FBK, Ultra Hunter, AR204 | Work trucks, most tire sidewall |
| 17 inch | Mayhem Cogent, AR204, Ultra 002FBK | Towing with a little style |
| 20 inch | Fuel ARC/FLUX/Circuit, XF-229/240, Mayhem Cogent, XD inner | The everyday sweet spot |
| 22 inch | Fuel ARC/FLUX/Circuit, XF-229/240, Mayhem Cogent Milled | Bigger look, still livable |
| 24 inch | XF-229/240, Fuel Circuit, Axe AF10 | Show trucks |
| 26 inch | XF-229/240, Axe AF10 | Maximum wheel |
20 and 22 inch dually wheels make up most of what we carry, so that's where you'll find the most finishes. At 24 and up, choices narrow fast. The 26-inch polished AF10 is about as big as it gets.
Fuel wheels for dually trucks
Fuel has the deepest dually stock here. The ARC covers the most bolt patterns, the FLUX adds 8x170 and bronze, and the Circuit is the plain gloss black option that reaches 24. Their inner only comes in 10x225 and 8x200, so plan around that. Check the polished ARC front in 10x225 or the FLUX rear outer in Blackout, or see the full Fuel 1PC lineup.
How to choose between the designs
- Want 24 or 26? XF-229, XF-240 or Axe AF10.
- Running 10x225? Fuel ARC, Fuel Circuit or the XF line.
- Tow heavy and want sidewall? AR204, Mayhem Cogent 17x6.5 or Ultra.
- Want a matching inner from the same brand? XF has inners in every size and pattern its outers come in.
Finishes
Gloss black is the most common finish by far. It's easy to live with and hides brake dust. Milled finishes cut bright edges into black for contrast. Polished is full bright metal that looks great on a white or silver truck but needs upkeep. You'll also find satin and matte black, Fuel's Platinum Bronze, and one chrome option, the Cali Invader in 24x8 chrome.
Dually wheels and tires
Both tires on each side of the rear axle have to be the same size so they share the load evenly. Buy all four rear tires together. As wheel diameter goes up, sidewall gets shorter. That means a firmer ride and less cushion when you're loaded. Make sure the tire's load rating covers what your truck hauls.
How these trucks look on the road

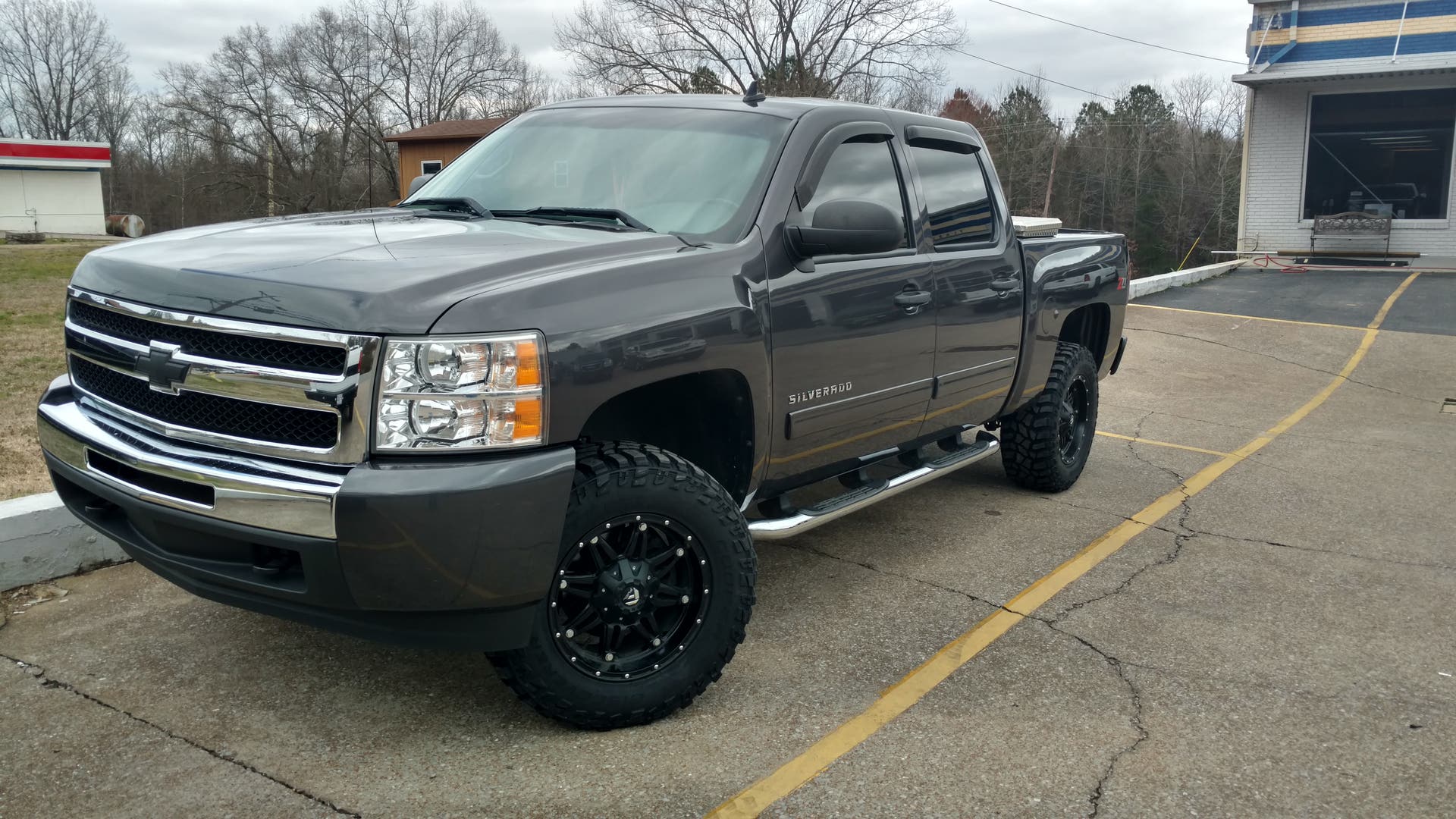

Customer builds show what owners run on these platforms. One 2021 Silverado 3500 HD runs Mayhem Warriors at 20x9 with an 18 offset and 325 tires for a flush look. Two more 2021 Silverado 3500 HDs sit on 18x9 with an 18 offset and 285s, one on Fuel Hostage and one on Moto Metal MO970 Black Milled. A 2019 F-350 Super Duty runs Fuel Blitz 20x9 with a 1 offset and 295s, poking past the fenders. All four use the same size and offset front and rear. That's a single-rear-wheel setup, not a dually. If that's your truck, look at off-road wheels for single-rear-wheel trucks instead.
Super single dually wheels
A super single conversion replaces the four rear wheels with two. That's a different setup from what's on this page. Every wheel here is built for running duals.
Ready to order
Find your truck in the fitment search, match the bolt pattern, and grab fronts, rear outers and inners in the same diameter. Need a second opinion? Reach out with your year and model before you order.
Questions
What bolt pattern are dually wheels?
It depends on your truck and year, because duallys have changed patterns over time. We stock 8x165.1, 8x170, 8x200, 8x210 and 10x225, plus a few 6x180, 6x205 and 10x285.75 options. Confirm yours in the fitment search.
Is 8x6.5 the same as 8x165.1?
Yes. 6.5 inches equals 165.1mm, so it's the same pattern written in different units.
How many wheels are in a dually set?
Six: two fronts, two rear outers and two rear inners. Each position uses its own offset, so you can't swap them around.
Do the inner wheels need to match the outer design?
No, but they must match the diameter and bolt pattern. Most people run a plain black inner like the XF Dually Inner, since it sits mostly hidden.
Does Fuel make dually wheels?
Yes. Fuel offers the ARC, FLUX and Circuit, plus a gloss black Dually Inner in 8x200 and 10x225.
What's the biggest dually wheel available?
26x8.25. It comes in the XF-229, XF-240, XF Dually Inner and Axe AF10.
