Yes, but you'll want a lift. On an FD, the third-gen RX-7, that doesn't mean a lift kit. It means giving the tire room to move: sensible ride height, rolled fender lips if you go low, and offsets close to the factory +50. Get that right and 18-inch wheels fit great, with 255/35R18 on an 18x9.5 +45 as our go-to.
FD RX-7 factory specs that matter for 18s
Every US FD left the factory on a 16x8 wheel. In 1993 the Base, the Touring (later the PEP) and the 1993-only R1 all shared the same 16x8 squeeze-cast wheel. Whatever trim you have, your starting point is identical.
| Spec | Value |
|---|---|
| Years (US) | 1993-1995 |
| Chassis code | FD3S |
| Bolt pattern | 5x114.3 |
| Center bore | 67.1 mm |
| Lug size | M12 x 1.5 |
| Factory wheel | 16x8 +50, all US trims |
| Factory tire | 225/50R16 (VR on Base and Touring, ZR on R1) |
| Factory tire diameter | 24.9 in |
| Staggered from the factory | No |
| Brake rotors | 11.6 in (294 mm), front and rear |
| Engine | Twin-turbo 13B rotary, 255 hp / 217 lb-ft |
| Curb weight | 2,789 lbs (Base, 5-speed) |
Two numbers to remember: the factory offset is a high +50, and the stock tire stands 24.9 inches tall. Stay close to both and 18s behave like Mazda put them there.
Do 18s fit at stock height, or does the FD need help?
FD owners run 18s three ways: stock height, lowered on springs, or on coilovers. All three work. What changes is how much room is left between the tire and the fender. That room is the "lift" we mean, enough clearance that the tire never stuffs into the liner over a dip.
At stock height, a 255/35R18 on an 18x9.5 +45 tucks in with nothing to fix. Lower the car and the front lips usually need a roll, which means folding the inner fender lip flat so it can't slice a sidewall. Use the full suspension stroke on a raced FD and the top of the tread can bottom on the plastic fender liner at full compression. One raced FD needed its wiring harness zip-tied up out of the way.
Here's how real FDs on 18s shake out:
| Wheel and tire | Suspension | Fender work |
|---|---|---|
| 18x8 +40, 255/40R18 | Stock | None |
| 18x9.5 +45, 255/35R18 | Stock | None |

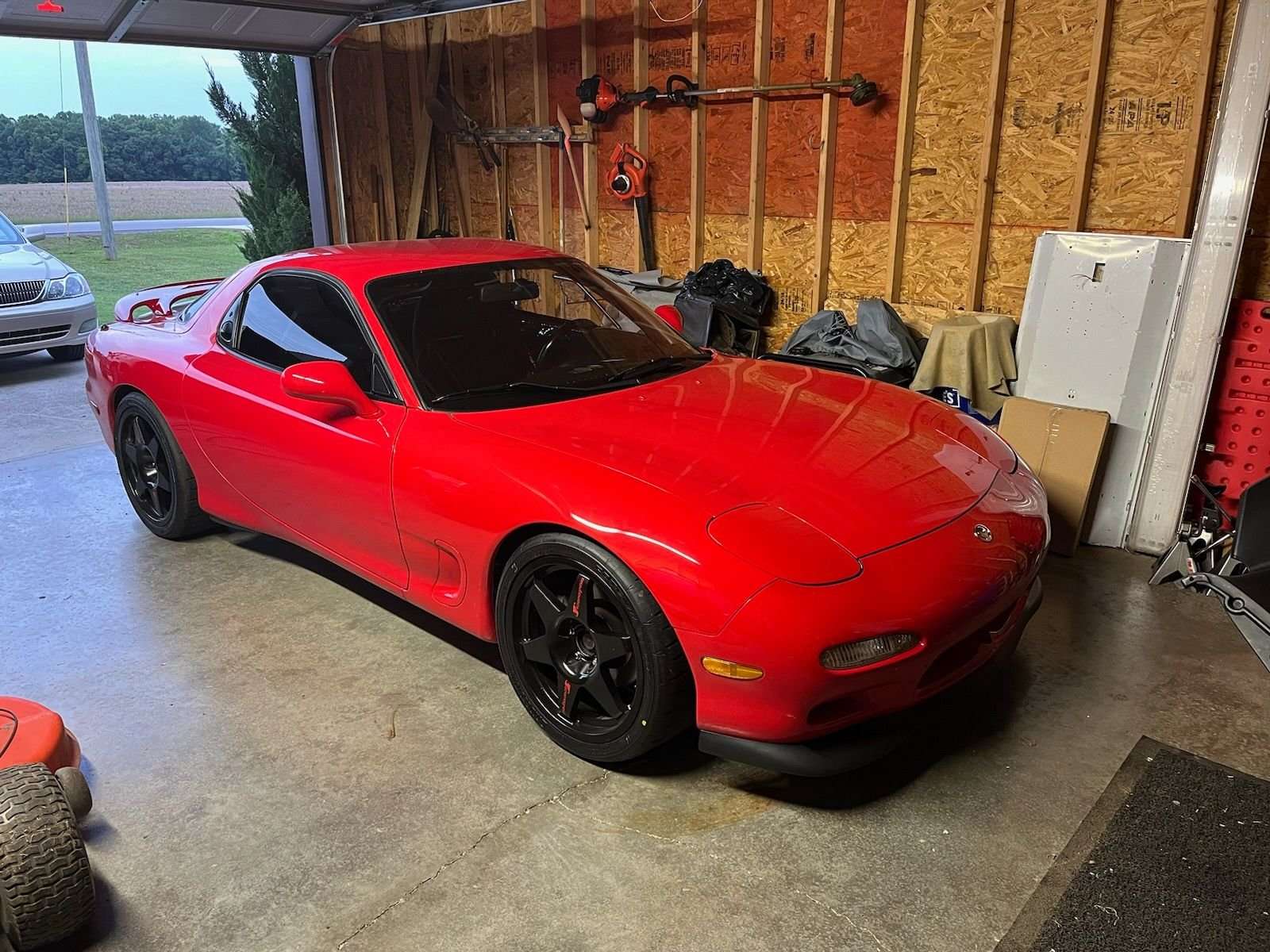

| 18x10 +50, 285/30R18 | Stock | None to rolled |
| 18x11 +45, 305/30R18 | Stock | Rolled |
| 18x9.5 +40, 255/35R18 | Lowered | Rolled |
| 18x10 +38, 265/35R18 | Lowered | Slight rub at full lock |
| 18x9.5 +45, 275/35R18 | Coilovers | Pulled and rolled |
| 18x10.5 +40, 245/45R18 | Stock | Rubs |

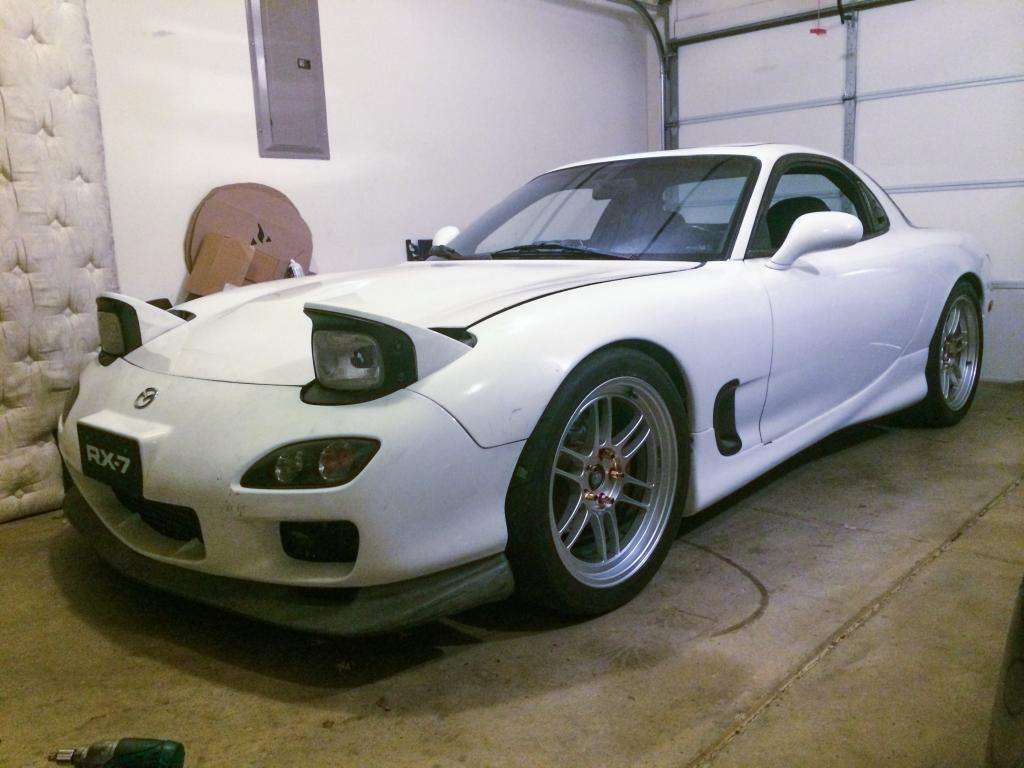

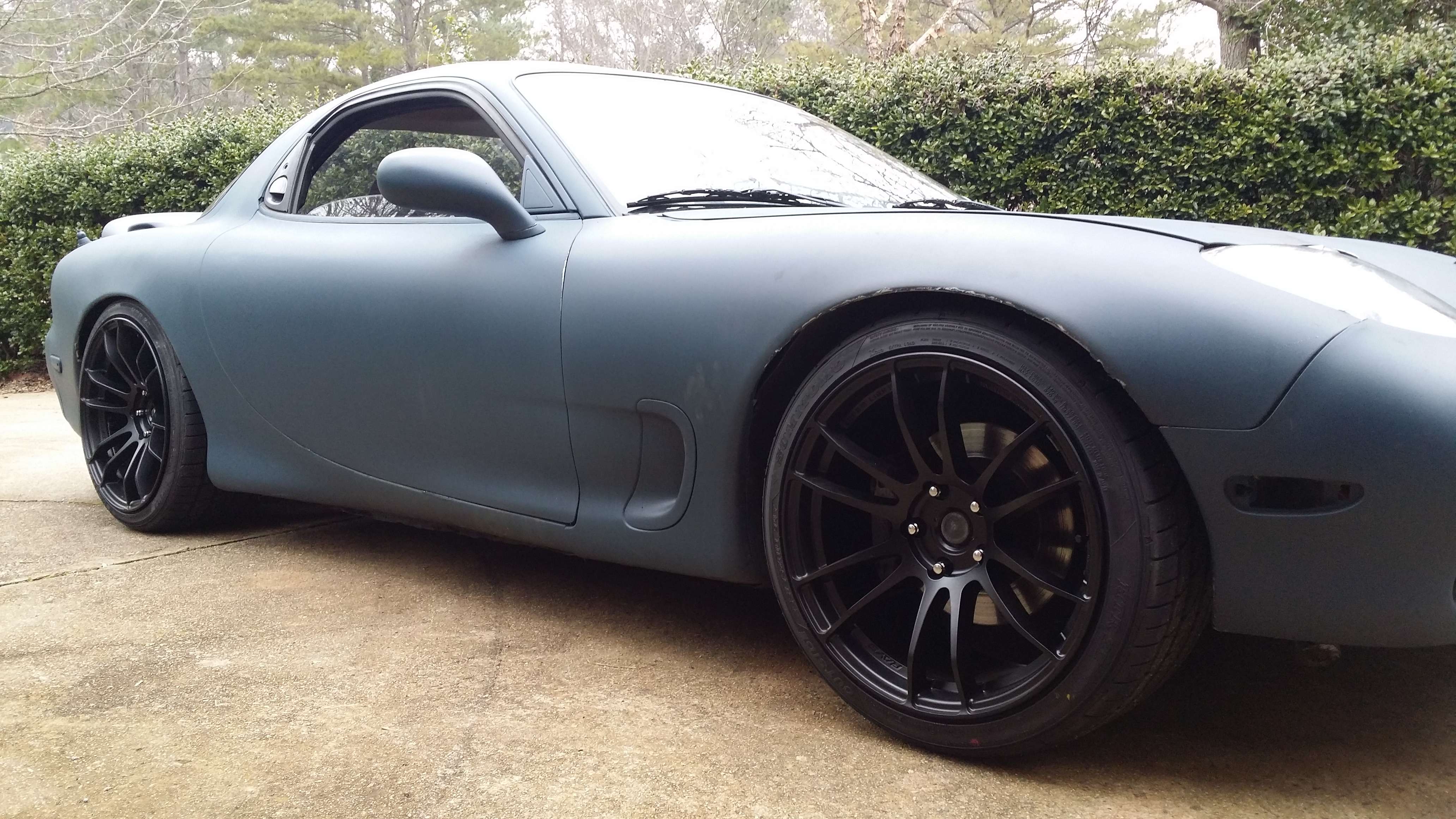

The pattern is easy to read. Tires around 25 inches tall on high offsets fit clean. The 245/45R18 at 26.7 inches rubs even at stock height. Go low and wide and you're pulling fenders, like this coilover FD on 275/35s. Stay at 255 with a roll and it's a clean daily, like this lowered FD on Gram Lights.
A few rules from the FDs we've seen:
- Lowered on stock fenders? Don't go past 255/35R18. 275/35s balloon a bit and get crowded.
- 245/40R18 up front can rub the inner liner in moderate to tight turns. A 245/35R18 cures it.
- Want wider than 255? Then 18s are a must.

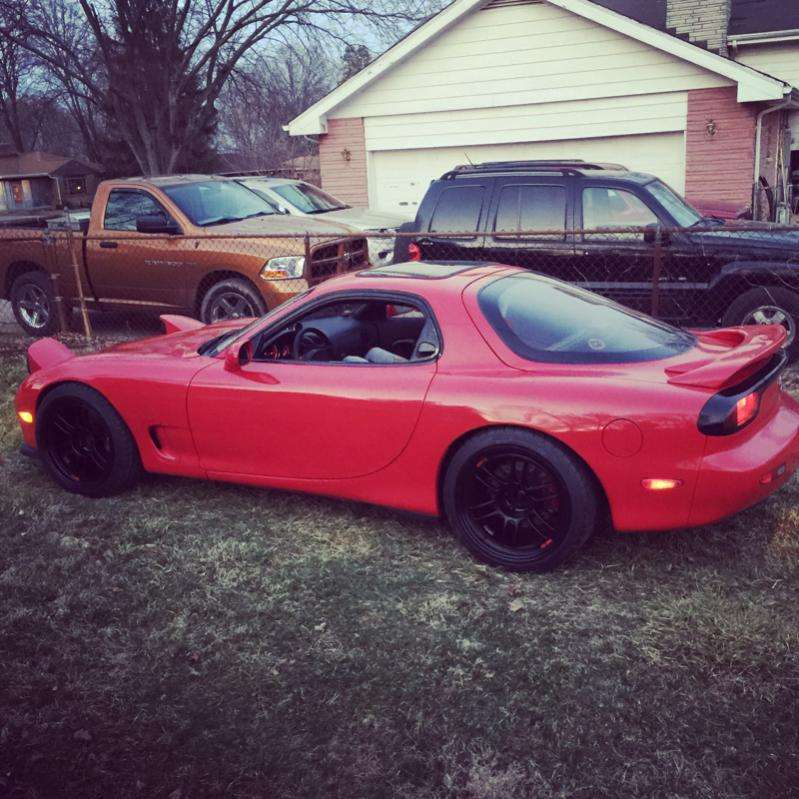

Check out the customer FDs through this post to see each of these stances in the metal.
What else 18s take on an FD
Offset: stay close to +50
The factory +50 sets the stock scrub radius. Drop the offset far below that and you get more bump steer and camber thrust, and the wheel moves out toward the fender lip. Here's the window by width:
| Axle and width | Offset range | Ideal | Notes |
|---|---|---|---|
| Front 18x9 | +37 to +63 | +45 | No roll noted |
| Front 18x9.5 | +44 to +56 | +48 | No roll noted |
| Front 18x10 | +50 to +52 | +52 | Tight window, stay high |
| Rear 18x10 | +35 to +61 | +44 | No roll noted |
| Rear 18x10.5 | +42 to +54 | +48 | May need a fender roll, depending on tire |
| Rear 18x11 | +48 | +48 | Needs a fender roll |
Camber moves the goalposts. More negative camber pulls the top of the tire toward the suspension. On an 18x10.5, a street car with up to -1 degree up front is happy around +50, while a track car running roughly 2 to 2.4 degrees wants about +44.
Out back, an 18x11 at +50 sits very close to the trailing arm, especially with a 295. Make it +45.
Hub-centric rings
The FD's center bore is 67.1 mm. Plenty of aftermarket 5x114.3 wheels are bored bigger to fit lots of cars, so run hub-centric rings and let the hub carry the wheel, not the lugs.
Brake clearance
The factory 11.6-inch rotors are no issue for 18s. Big brake kits are where it gets real, and clearance depends on the wheel's spoke profile, not just offset. For reference, an 18x9.5 +45 Enkei PF01 over Brembo GT50 front calipers on 355 mm rotors leaves about 5/8 inch between caliper and barrel. Test-fit before tires go on.
Speedometer and gearing
The stock tire is 24.9 inches. A 255/35R18 at 25.0 or a 265/35R18 at 25.3 keeps the speedo and gearing basically where Mazda left them. Push to 25.7 inches and you'll notice the change in gearing. At 26.7 you're too tall, and it rubs anyway.
Ride quality
Less sidewall means a firmer ride and more road noise in the cabin. One owner running 285/30s on 18x10s at all four corners called the street ride very harsh. If comfort is the priority, stay on 17s and skip the stiff-sidewall extreme performance tires.
What we'd run
If it were our FD: 18x9.5 +45 with 255/35R18 at all four corners. It's square (same size front and rear) so you can rotate, the offset sits right in the ideal window, and the tire is 25.0 inches, a hair over stock. At factory height it tucks clean. Lowered, roll the front lips and send it.
Track car that wants more rubber: 18x10 +52 with 285/30R18 on all four is the proven setup, and it still rotates. Don't try that 285/30 on a +48 without real fender work.
Want the staggered look: 18x8.5 +40 front with 255/35R18, 18x9.5 +38 rear with 275/35R18, fenders rolled. For a wider rear, go 18x11 +45 with a 295/30R18 and plan on rolled lips, like this lowered FD on Forgestar F14s.
Daily on rough roads: skip 18s. A 17x7 or 17x7.5 at +38 to +48 bolts right on and keeps more sidewall.
Narrow and safe: an 18x7.5 +45 keeps the offset close to the factory +50. Keep the tire on the skinny end of the chart and check that it's approved for a 7.5-inch rim.
Tire sizes that fit 18s on an FD
| Size | Overall diameter |
|---|---|
| 225/35R18 | 24.2 in |
| 285/30R18 | 24.7 in |
| 255/35R18 | 25.0 in |
| 295/30R18 | 25.0 in |
| 225/40R18 | 25.1 in |
| 305/30R18 | 25.2 in |
| 265/35R18 | 25.3 in |
| 235/40R18 | 25.4 in |
| 275/35R18 | 25.6 in |
| 245/40R18 | 25.7 in |
| 285/35R18 | 25.9 in |
| 255/40R18 | 26.0 in |
| 265/40R18 | 26.3 in |
| 245/45R18 | 26.7 in |
Stick near the top half of this chart and you stay close to the stock 24.9 inches. Match tire width to rim width with care: general rim-width guides get you close, but the tire maker's approved rim list for the exact tire is the final word.
Shop 18s for your FD
The WedsSport RN55M 18x7.5 +45 comes in the FD's bolt pattern. You can browse every 5x114.3 18-inch wheel we carry or start from our full wheel lineup. For rubber, grab 255/35R18 tires or shop all tires.
18-inch wheels for the Mazda RX-7 (in stock)
Frequently Asked Questions
Will 18s rub on a stock-height FD?
Not if you keep the tire around 25 inches and the offset high. A 255/35R18 on an 18x9.5 +45 fits clean at stock height. A 245/45R18 at 26.7 inches rubs.
What offset do I need for 18s on an RX-7?
As close to the factory +50 as you can get. Around +45 on a 9 or 9.5 front is the sweet spot. Below +40 on a lowered car, plan on rolling or pulling fenders.
Can I run 285s on an FD?
Yes. 18x10 +52 with 285/30R18 on all four corners is the proven setup. On a +48 or lower, expect fender work.
Do I need hub-centric rings?
If the wheel's center bore is bigger than the FD's 67.1 mm, yes. Rings center the wheel on the hub and keep vibrations away.
Will 18s clear a big brake kit?
Often, but it depends on the spoke profile, not just offset. An 18x9.5 +45 PF01 clears Brembo GT50s on 355 mm rotors with about 5/8 inch to spare. Test-fit first.
Do 18s ride worse than the stock 16s?
Yes. Less sidewall means a firmer ride and more road noise. If comfort comes first, 17s are the better call.
