Subaru Outback Wheel Fitment Guide: 5x114.3 Setups
The sixth-gen Outback is one of the most quietly rewarding platforms for a wheel swap. It rolls off the lot on 17x7 +55 — a high-offset, narrow setup built for winter clearance and nothing else — which means there's real room to work with on both width and offset before you're anywhere near the fender. Drop the offset, add an inch or two of width, and the whole stance tightens up without touching the suspension.
The hardware side is friendly too. You've got a 5x114.3mm bolt pattern — the most widely supported spec in the aftermarket — and a 56.1mm center bore, so hub-centric rings are part of the plan on almost any aftermarket wheel. That combination opens the door to everything from lightweight flow-formed rally-inspired designs to full three-piece builds, plus the whole range of all-terrain and highway-terrain rubber if you're leaning outdoorsy.
We've pulled together three Outback setups below, all of them square — same wheel, same tire, all four corners. Square is the right call on this chassis: it keeps the AWD system happy, makes tire rotation simple, and honestly looks better on a wagon than anything else. Specs, sizes, and our take on each are below.
Quick links
- Want new wheels for your Subaru Outback?
- Basic Outback fitment info
- 17-Inch Square Setups
- 18-Inch Square Setup
- Final Thoughts
Want new wheels for your Subaru Outback?
The 2023-2026 Outback rolls on 17x7 +55 from the factory — a tall, skinny, deeply inset wheel built for ride comfort and nothing else. That +55 offset is what buries the face inside the fender well. Drop even a few millimeters and the whole stance tightens up without touching the suspension.
The good news is the 5x114.3mm bolt pattern. That's one of the most widely supported patterns out there, so you're not stuck hunting Subaru-specific parts — you've got the full Konig and Enkei catalogs open to you in both 17" and 18" diameters.
Every setup we've pulled together here is square — same wheel, same tire, all four corners. That's the right call on an Outback: predictable handling, rotatable tires, and a clean look that doesn't fight the wagon proportions. Pick your diameter, pick your face, done.
Basic Outback fitment info
- Bolt pattern: 5x114.3mm
- Bolt thread: M12 x 1.25
- Center bore: 56.1mm
- Bolt torque: 89 ft lbs
The stock Outback rolls on 17x7 +55 wheels wrapped in 225/65R17 tires.
Brake clearance
Every 2023-2026 Outback runs the same brake package regardless of trim — 12.4-inch ventilated front rotors with dual-piston calipers, and 11.8-inch ventilated rears with single-piston calipers . That spec carries across Base, Premium, Limited, Touring, Onyx Edition XT, Touring XT, and Wilderness . No Brembo option, no big-brake trim — so you're clearing one caliper size across the board.
Practically, that means 17-inch is your floor. Base and Premium ship on 17x7 alloys, while Onyx Edition, Onyx Edition XT, Limited, and Touring move to 18x7 — the factory 17s clear these calipers, so any properly designed 17" aftermarket wheel is in play.
Keep your hardware right: 5x114.3 bolt pattern and a 56.1mm center bore , torqued to 89 ft-lbs . Always test-fit a spoke against the front caliper before mounting all four.
17-Inch Square Setups
Seventeens are the sweet spot for an Outback — enough sidewall to survive real roads, enough face to look intentional. Both builds here run square Enkei setups, one on 17x8 and one on 17x7.5.
| Fitment Facts | ||
| Front | Rear | |

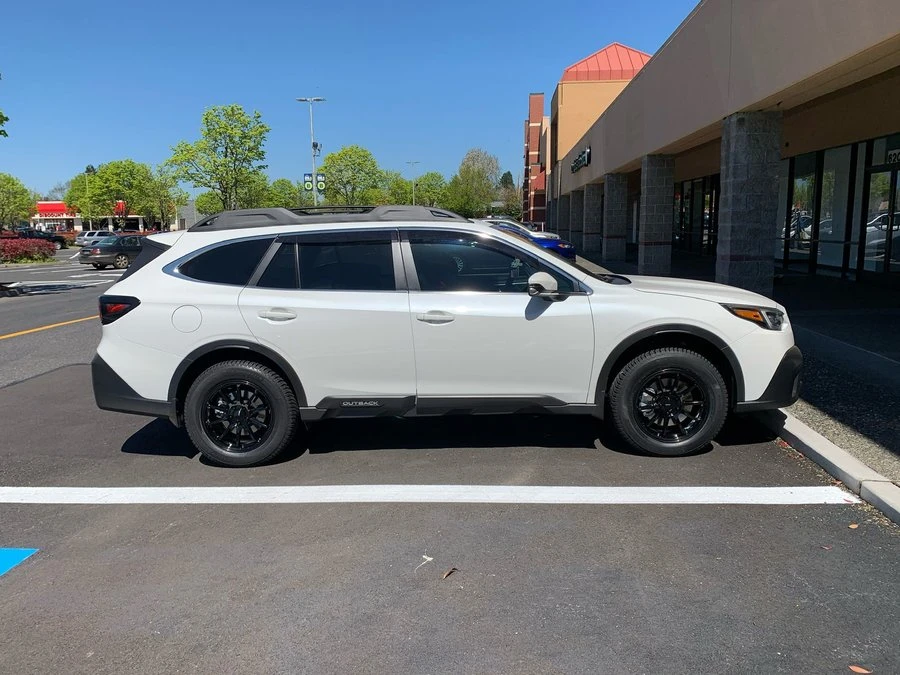

| Wheels | Enkei PX10 17x7.5 +40 | Enkei PX10 17x7.5 +40 |
| Tires | 225/65/17 | 225/65/17 |
| Notes | Stock | |
This is the Outback done right — no lift, no drop, just a clean square setup that makes the wagon look intentional. The Enkei PX10 17x7.5 +40 at all four corners ditches the factory look without shouting about it, and Enkei's finish work always reads a step above stock.
Wrapping them in 225/65/17 keeps real sidewall under the car, which is exactly what an Outback on stock suspension should be running. Same spec front and rear — simple, balanced, easy to live with.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | Enkei TSP6 17x8 +45 | Enkei TSP6 17x8 +45 |
| Tires | 235/65/17 | 235/65/17 |
| Notes | Stock | |
This is the Outback done right — no lift, no drop, just a clean square setup on stock suspension. The Enkei TSP6 17x8 +45 in gunmetal kills the rental-car vibe instantly, giving the wagon some actual attitude without pretending to be something it isn't.
The 235/65/17 sidewall keeps the proportions honest and the ride comfortable. Same wheel, same tire, all four corners — matched and balanced, exactly how a wagon like this should sit.
18-Inch Square Setup
Eighteens are the sweet spot on an Outback — enough face to fill the arch without wrecking the sidewall you actually need. This one runs a square Konig setup in 18x8.5 at all four corners.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | Konig Ampliform 18x8.5 +45 | Konig Ampliform 18x8.5 +45 |
| Tires | 245/55/18 | 245/55/18 |
| Notes | Stock | |
This is what an Outback should look like from the factory. The Konig Ampliform 18x8.5 +45 in dark metallic graphite kills the rental-car vibe instantly — a quiet, purposeful face that reads outdoorsy without trying too hard.
Square at all four corners on 245/55/18, so there's real sidewall left for whatever the road turns into. Stock suspension, and honestly it doesn't need anything else. The wheels do all the talking.
Final Thoughts on Subaru Outback Fitment
Three builds, one clear theme: the current-gen Outback responds best to a square setup in the 17–18" range with offsets between +40 and +45. That's not a compromise — it's the sweet spot where the wheel face sits clean under the plastic fender cladding without the tire crowding the strut or the arch liner. Going square on all four corners also means you can rotate normally, which matters more on a car people actually drive in weather than on a track toy.
If you want the safest starting point, 17x8 +45 is the size to build around. The 17" diameter keeps sidewall on the car, which is the whole point of an Outback — you get ride quality on broken pavement and a little cushion between your rim lip and a pothole. Stepping up to 18" gets you a tighter, more modern look and fills the arch better visually, but you're trading sidewall for it. Either diameter works; pick based on whether your priority is looks or long-haul comfort.
The nice part about the +40 to +45 window is that it's forgiving. You're not chasing a single magic number, so you can shop by wheel design and finish first and let the offset fall wherever it lands in that range. ThreePiece.us stocks the brands featured in these builds in Outback-friendly 5x114.3 fitments, along with tires sized to match — so you can put the whole package together in one place instead of guessing at combinations.
