Every 3rd Gen Durango from 2011 to 2026 runs a 5x127 bolt pattern with a 71.6 mm center bore. If it were our Durango, we'd run a 20x9 +35 on 265/50R20 tires with no lift, no spacers and no rubbing. Want more wheel? A 22x10 +42 on 285/35R22 bolts on at stock height too.
Quick links
- Durango wheel specs
- What we'd run
- Sizes and offsets that fit
- Real setups
- What rubs and what clears
- Wheels in stock that fit
- FAQ
Dodge Durango wheel specs
| Durango Wheel Specs | |
| Spec | Value |
| Bolt pattern | 5x127 |
| Center bore | 71.6 mm |
| Factory wheels (Citadel, SXT, Special Service) | 18x8 +50 |
| Factory wheels, 2018-2026 (SRT Hellcat, SRT, SRT 392) | 20x10 +45 |
| TPMS | Sensors in the factory wheels |
What we'd run on a Durango
The Durango is easy to dress up at stock height. Go off-road-ish and you'll need a front leveling kit and some restraint on tire size. Here's what we'd run by goal.
- Stock height, clean daily: 20x9 +35 with 265/50R20, square, stock suspension. It's the factory 20-inch tire size on a slightly wider wheel. Zero drama.
- Stock height, big wheel: 22x10 +42 with 285/35R22, square, stock suspension. It fills the arches and still clears with no spacers or fender work.
- Leveled, all-terrain look: 20x9 +35 with 275/55R20 and a front leveling kit. It's the meatiest 20-inch tire we'd trust. Don't push to 275/60R20, because it rubs.
- Leveled, 18s: 18x8 +40 with 265/65R18 and a front leveling kit. You get a taller sidewall with no trimming needed.
We'd buy the 20x9 +35 on 265/50R20 first. It bolts on with zero mods and keeps factory ride height.
Durango sizes and offsets that fit
The easy zone on a Durango is +30 to +45 for most widths from 18 to 24 inches. A 20x8 has the widest window at +30 to +60, and 20x10 through 20x11 bolt on from +30 to +52. The factory SRT wheel is a 20x10, so check its offset against that range. 22x8 through 22x9 bolt on at +35 and up.
Watch the odd ones. A 20x9.5 has no bolt-on offset, and +30 to +45 may rub. The same goes for 22x9.5 at +35 to +45 and 24x10 at +30 to +52. If a size isn't in the bolt-on column, plan on fitting work or pick a neighboring width.
| Sizes & Offsets That Fit | ||
| Wheel size | Offsets that fit | Watch for |
| 18x7.5 | +30 to +50 | bolts on |
| 18x8 | +30 to +56 | bolts on |
| 18x8.5 | +30 to +50 | bolts on |
| 18x9 | +30 to +45 | bolts on |
| 18x9.5 | +30 to +45 | bolts on |
| 19x8 | +30 to +45 | bolts on |
| 19x8.5 | +30 to +45 | bolts on |
| 19x9 | +30 to +45 | bolts on |
| 20x8 | +30 to +60 | bolts on |
| 20x8.5 | +30 to +45 | bolts on |
| 20x9 | +30 to +45 | bolts on |
| 20x9.5 | - | +30 to +45: may rub |
| 20x10 | +30 to +52 | bolts on |
| 20x10.5 | +30 to +52 | bolts on |
| 20x11 | +30 to +52 | bolts on |
| 22x8 | +35 to +50 | bolts on |
| 22x8.5 | +35 to +50 | bolts on |
| 22x9 | +35 to +45 | bolts on |
| 22x9.5 | - | +35 to +45: may rub |
| 24x9 | +30 to +45 | bolts on |
| 24x9.5 | +35 to +45 | bolts on |
| 24x10 | - | +30 to +52: may rub |
Real setups
These are real Durangos from our customer gallery, all square and all on stock suspension, running 20s and 22s with no rubbing.
| Real setups | |||
| Car | Wheels | Tires | Suspension & notes |
| 2021 Durango | Dodge TrackHawk 20x9 +35 | 265/50/20 | Stock suspension |
| 2024 Durango | Diewe Impatto Nero 22x10 +42 | 285/35/22 | Stock suspension |
| 2019 Durango | Diewe Impatto Neros 22x10 +42 | 285/35/22 | Stock suspension |

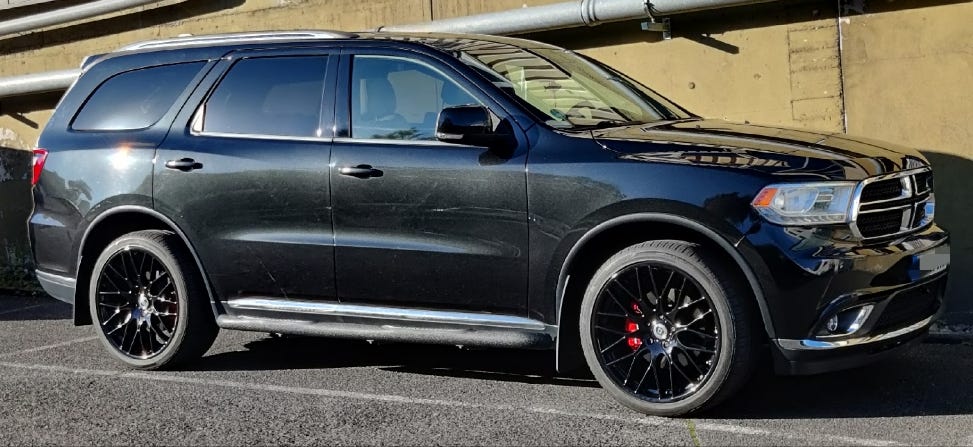

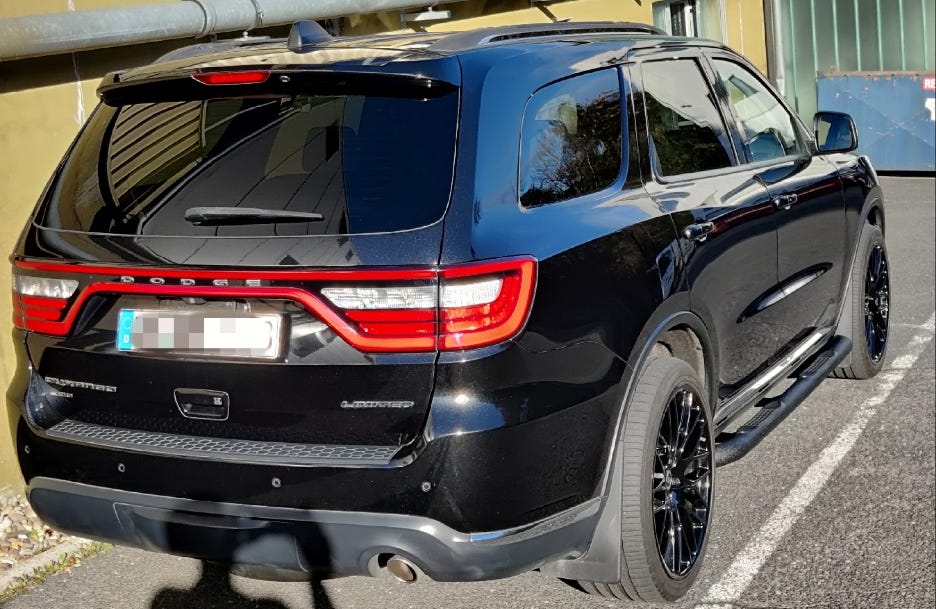

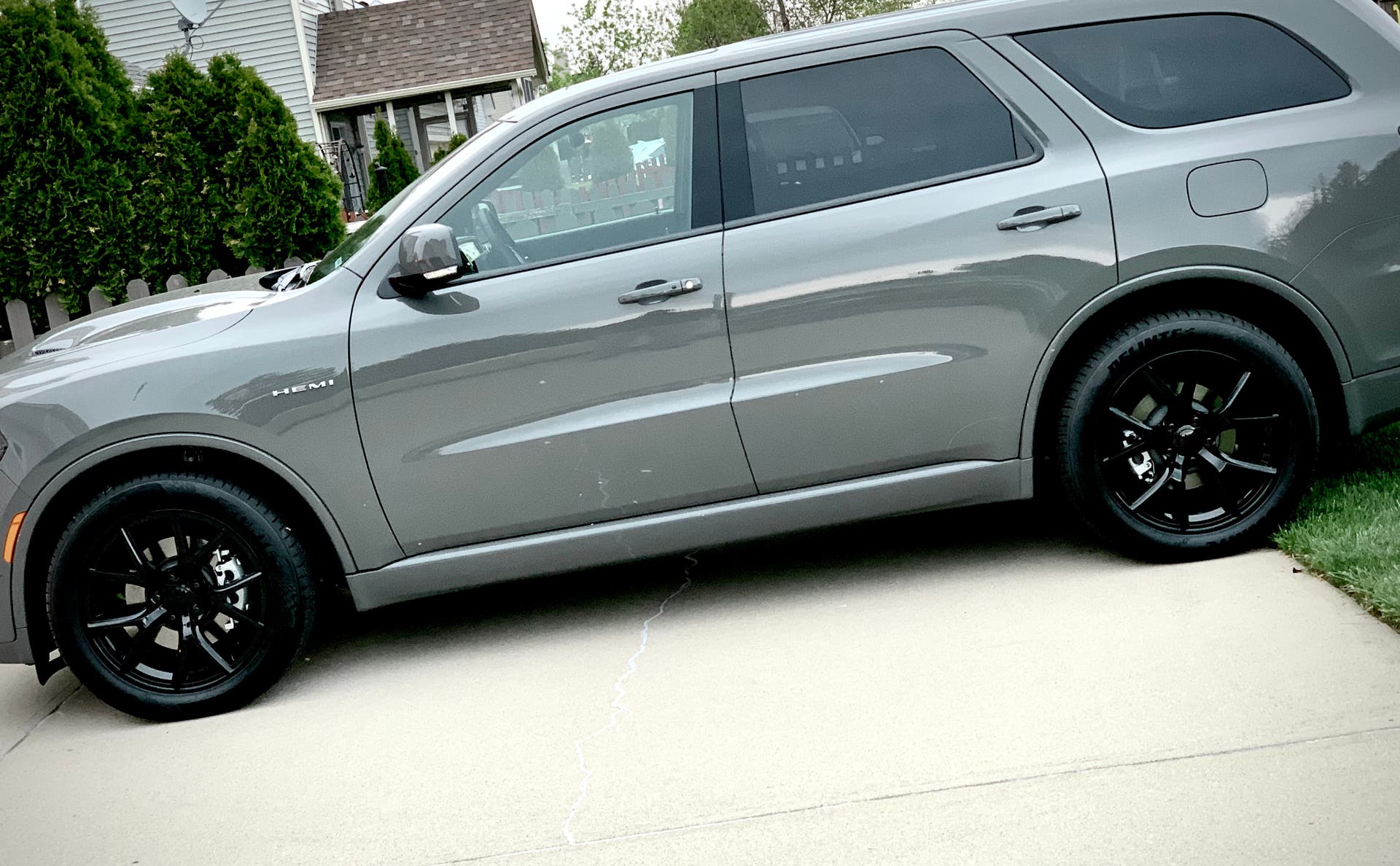

This 2021 sits on Dodge TrackHawk 20x9 +35 wheels with 265/50/20 tires, square, on stock suspension. No spacers, no fender mods, no rubbing. See this one in our customer gallery. This 2024 runs Diewe Impatto Nero 22x10 +42 wheels on 285/35/22, square at stock height. No spacers, no fender mods and zero rub. See this one in our customer gallery.
This 2019 runs the same recipe: Diewe Impatto Nero 22x10 +42 wheels on 285/35/22, square, on stock suspension. It clears clean with no spacers or fender work. See this one in our customer gallery.
What rubs and what clears
Brakes: SRT trucks run Brembo six-piston fronts on 15-inch slotted rotors, and Tow N Go and R/T 392 trucks also get Brembos. Those trucks came on 20-inch wheels from the factory, so check caliper clearance before you put anything smaller on them. Factory wheels carry TPMS sensors, so move them over or plan for new ones.
Rubbing: At stock height, 265/50R20 on a 20x9 +35 and 285/35R22 on a 22x10 +42 both clear clean. With a leveling kit, 275/55R20 is about the limit, and 275/60R20 rubs. Pulling the liners back and securing them frees up roughly .5 to 1 inch at the contact points. Even on a 2.5-inch lift, 32.1-inch tires rubbed and the liner may need bending.
Suspension: A leveling kit built for the Jeep Grand Cherokee can also fit the Durango. On 18s with a leveling kit, 265/65R18 is the size that clears with no trimming. If your truck has the load-leveling rear shocks and you lift it, expect to swap them, since they can clunk.
Wheels in stock that fit the Durango
These in-stock 5x127 wheels all land inside the Durango's bolt-on range. For a daily, start with the American Racing AR893 Mainline 20x8.5 +35. If you want a wide, aggressive look, the WELD Laguna Drag 20x10.5 +38 is the one we'd grab.
WELD Performance Laguna Drag 5x127 20x10.5 +38 Gloss Black/Milled Diamond Cut Lip
20x10.5 +38 · $641.77
Dodge Durango Wheel Fitment FAQ
What is the bolt pattern on a 3rd Gen Dodge Durango?
It's 5x127 with a 71.6 mm center bore on every 2011-2026 Durango. Factory wheels carry TPMS sensors.
What is the lug nut torque on a Durango?
Torque the lug nuts to 130 ft-lbs (176 N·m). The lug size is M14 x 1.50 and takes a 22 mm socket. Tighten in a star pattern twice around, then recheck after 25 miles. Some early and SRT trucks may list 110 ft-lbs, so confirm in your manual.
Do 22s fit a Durango without a lift?
Yes. A 22x10 +42 on 285/35R22 bolts on at stock height with no spacers, no fender mods and no rubbing.
Will 275/55R20 fit a Durango?
Owners run 275/55R20 with a front leveling kit, and some fit it at stock height. Step up to 275/60R20 and it rubs.
Can I put SRT wheels on my GT or R/T?
Yes. The SRT's factory wheel is a 20x10, so check its offset against the 20x10 bolt-on range of +30 to +52. Factory SRT trucks pair it with 295/45ZR20 tires.
Does a Grand Cherokee leveling kit fit the Durango?
Yes. A leveling kit built for the Jeep Grand Cherokee can also fit the 3rd Gen Durango.
Shop Durango wheels
Most Durangos look best on 20-inch 5x127 wheels or 22-inch 5x127 wheels. If you want more sidewall, browse 18-inch 5x127 wheels.
Try wheels on your Dodge Durango: see the Dodge Durango bolt pattern, wheel sizes by year and wheel builds in our free wheel visualizer.
