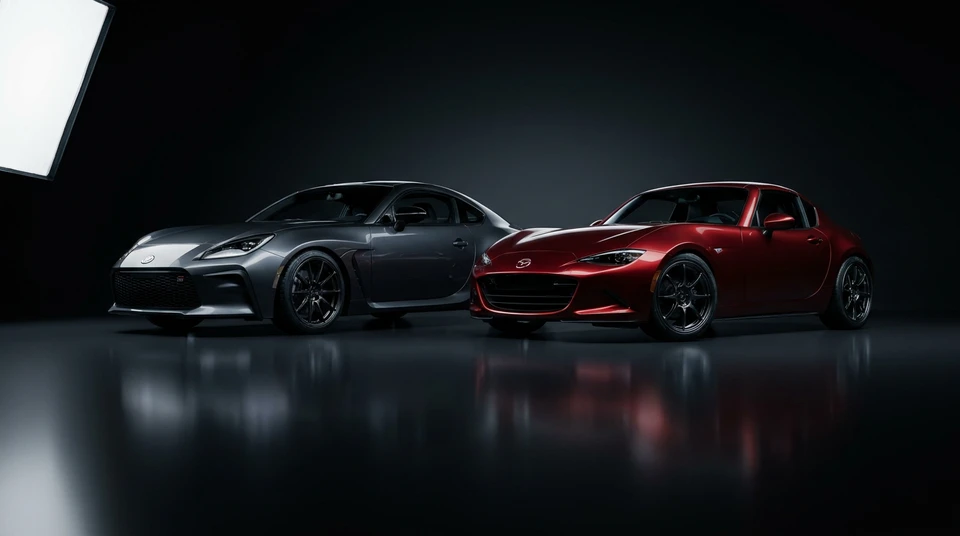

Toyota GR86 vs Mazda Miata MX-5: Which Build Platform Actually Wins?

The Toyota GR86 and Mazda MX-5 Miata represent the last affordable sports car bastions in an SUV-dominated market. Both deliver rear-wheel-drive thrills under $35,000, but they approach the mission differently. The GR86 offers a 2+2 coupe with more power and practicality, while the MX-5 provides pure roadster minimalism and superior balance.

Quick Navigation

• Quick Answer
• Key Takeaways
• Platform Specifications
• Performance Reality Check
• Build Path Economics
• Power Modification Potential
• Suspension and Handling Upgrades
• Reliability and Ownership Costs
• Resale Value and Community
• The Verdict by Use Case
• Bottom Line

Quick Answer

The Toyota GR86 wins for most builders. Its 2.4L engine delivers 47 more horsepower than the MX-5's 2.0L unit, offers better power modification potential, and provides actual daily usability with rear seats and cargo space. The MX-5 only wins if you prioritize ultimate handling precision or open-air driving over everything else.

Key Takeaways

• Power: GR86's 228 hp vs MX-5's 181 hp creates a meaningful performance gap
• Modification ceiling: GR86 reaches 350 hp with turbo kits; MX-5 tops out around 300 hp
• Handling: MX-5 delivers superior steering feel and chassis balance
• Practicality: GR86's 2+2 layout and larger trunk make it actually usable daily
• Cost: MX-5 offers lower entry price and cheaper modifications
• Reliability: MX-5 has proven track record; GR86 had early engine issues

Platform Specifications

Toyota GR86

• 2.4L naturally aspirated flat-four (FA24D)
• 228 hp @ 7,000 rpm / 184 lb-ft @ 3,700 rpm
• 2,811 lb curb weight (manual)
• 101.2-inch wheelbase
• 50/50 weight distribution
• Torsen limited-slip differential (manual only)

Mazda MX-5 Miata

• 2.0L naturally aspirated inline-four (Skyactiv-G)
• 181 hp @ 7,000 rpm / 151 lb-ft @ 4,000 rpm
• 2,341 lb curb weight (soft-top manual)
• 90.9-inch wheelbase
• 50/50 weight distribution
• Open differential standard (limited-slip available)

Performance Reality Check

The numbers tell the story. The GR86 hits 60 mph in 6.1 seconds versus the MX-5's 5.7 seconds, but that gap closes quickly as speeds rise. The GR86's extra torque and power become more apparent in real-world driving situations.

Track Performance

• GR86: 0.95g skidpad, 108-foot braking
• MX-5: 0.91g skidpad, 106-foot braking

The MX-5's 470-pound weight advantage shows in handling precision, but the GR86's superior power delivery makes it faster on most tracks despite the handling deficit.

Build Path Economics

Street Performance Builds

GR86 Street Setup:

• Cold air intake + header + tune: +15-20 hp ($1,500-$2,500)
• BC Racing or Tein coilovers: $1,200-$2,000
• Sway bars: $300-$500
• 18x9.5 wheels with performance tires: $2,000-$4,000
• Total: $5,000-$9,000

MX-5 Street Setup:

• Cold air intake + header + tune: +10-15 hp ($1,200-$2,000)
• Bilstein or Ohlins coilovers: $1,500-$3,000
• Sway bars: $400-$600
• 17x8 wheels with performance tires: $1,500-$3,000
• Total: $4,600-$8,600

Track-Focused Builds

GR86 Track Path:

• KW or Ohlins suspension: $2,500-$4,500
• StopTech or Brembo brake kit: $2,000-$3,500
• Roll cage: $2,500-$4,000
• Aero package: $1,500-$3,000
• Total: $8,500-$15,000

MX-5 Track Path:

• Xida or AST suspension: $3,000-$5,000
• Brake upgrade: $1,800-$3,000
• Roll bar/cage: $1,500-$3,500
• Aero package: $1,200-$2,500
• Total: $7,500-$14,000

Power Modification Potential

GR86 Power Ceiling

• Naturally aspirated maximum: 250-270 hp ($3,000-$5,000)
• Turbocharger kit: 300-350 hp ($8,000-$12,000 installed)
• Supercharger kit: 280-320 hp ($7,000-$10,000 installed)

MX-5 Power Ceiling

• Naturally aspirated maximum: 200-220 hp ($2,500-$4,000)
• Turbocharger kit: 250-300 hp ($6,000-$10,000 installed)
• Supercharger kit: 240-280 hp ($6,500-$9,000 installed)

The GR86's larger displacement provides a meaningful advantage in both naturally aspirated and forced induction applications. The FA24D engine responds better to modifications than the MX-5's Skyactiv-G unit.

Suspension and Handling Upgrades

Budget Coilovers ($800-$1,500)

• GR86: Tein Flex Z, BC Racing BR
• MX-5: Tein Street Basis Z, BC Racing BR

Mid-Range Options ($1,500-$3,000)

• GR86: KW V3, Bilstein PSS10
• MX-5: Bilstein B14, KW V3

High-End Track Setup ($3,000+)

• GR86: Ohlins Road & Track, MCS
• MX-5: Xida, AST 5100, Ohlins TTX

The MX-5 benefits from a more mature suspension aftermarket with proven track-focused options like Xida that have decades of development behind them.

Reliability and Ownership Costs

GR86 Known Issues

• RTV silicone contamination (early 2022 models): $3,000-$5,000 engine replacement
• Cricket noise from fuel pump: $500-$800 repair
• Brake judder on track use: $400-$800 rotor replacement

MX-5 Known Issues

• Soft-top wear: $1,500-$2,500 replacement
• Transmission synchro wear (high-mileage): $2,000-$3,500 rebuild
• Differential mount failure: $300-$500 repair

Annual Maintenance

• GR86: $800-$1,200
• MX-5: $700-$1,000

The MX-5's proven reliability record gives it a clear advantage, though the GR86's early issues appear resolved in newer production.

Resale Value and Community

Depreciation Patterns

• GR86 (2022-2023): Holding 85-95% of MSRP
• MX-5 (2019-2024): Holding 80-90% of MSRP

The GR86's limited production numbers may help long-term values, while the MX-5 benefits from historical collectibility trends.

Aftermarket Ecosystem

• GR86: Rapidly expanding but still developing, premium pricing
• MX-5: Mature 30-year ecosystem, competitive pricing, cross-generation compatibility

The Verdict by Use Case

Track Day Winner: MX-5 Superior handling precision, lower running costs, and established track community make the Miata the better weekend warrior choice.

Daily Driver Winner: GR86 Extra power, rear seats, and cargo space create a more versatile package for single-car ownership.

Budget Builder Winner: MX-5 Lower entry costs and mature used parts market provide better value for cost-conscious enthusiasts.

Show Car Winner: GR86 Newer platform offers more dramatic styling potential and benefits from fresh design trends.

Bottom Line

The Toyota GR86 wins for most enthusiasts. Its combination of meaningful power advantage, daily usability, and strong modification potential outweighs the MX-5's handling precision and reliability record. Choose the GR86 unless you specifically prioritize ultimate handling purity or open-air driving over everything else. The MX-5 remains the better choice for pure driving enthusiasts willing to accept power and practicality compromises for superior dynamics and proven reliability.
