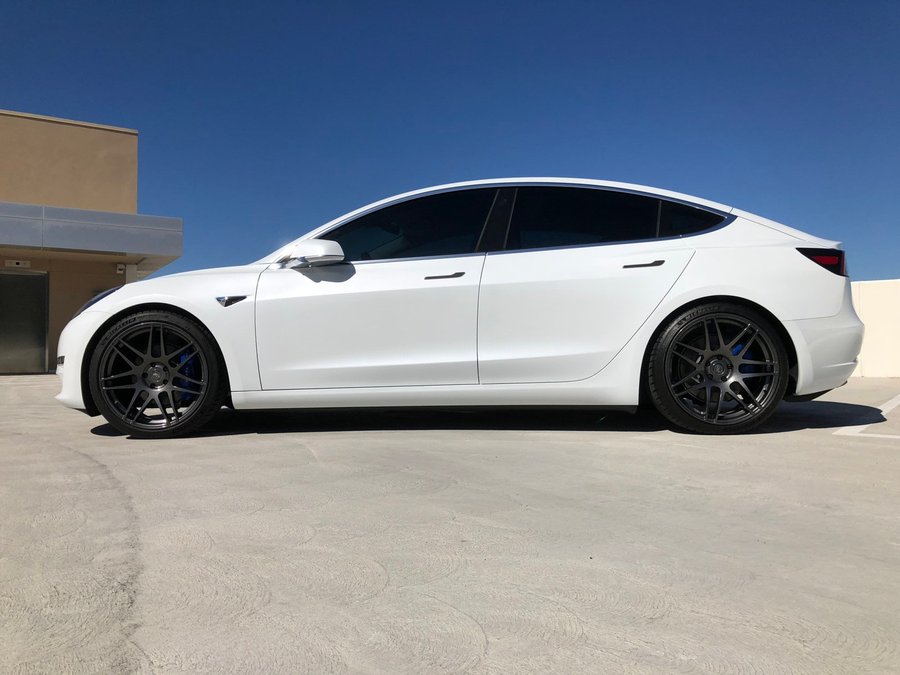

Tesla Model 3 Wheel Fitment Guide (2023-2026)
The Tesla Model 3 is one of the easiest canvases in the game for a wheel swap. Those stock 18x8.5 +40 Aero wheels do their job on the efficiency front, but they leave a ton of stance on the table. Drop those plastic covers and you've got a clean, low-slung sedan practically begging for a proper set of aftermarket rollers.
The specs make life simple: a 5x114.3mm bolt pattern that opens up a massive catalog of wheels, and a 64.1mm center bore that most fitments will hub-center with the right rings. That combo means you're not fighting the car to find something that bolts up — the hard part is just picking a look and committing to it.
We pulled together three Model 3 setups for this guide, and they don't all chase the same thing. You'll see a square setup, staggered fitments, and different takes on how aggressive to go — each one dialed to a specific vibe. Consider these ThreePiece.us curated examples to steal from directly or use as a jumping-off point for your own build.
Quick links
- Want new wheels for your Tesla 3?
- Basic 3 fitment info
- 19-Inch Square Setup
- 20-Inch Staggered Setups
- Final Thoughts
Want new wheels for your Tesla 3?
Want new wheels for your Tesla 3?

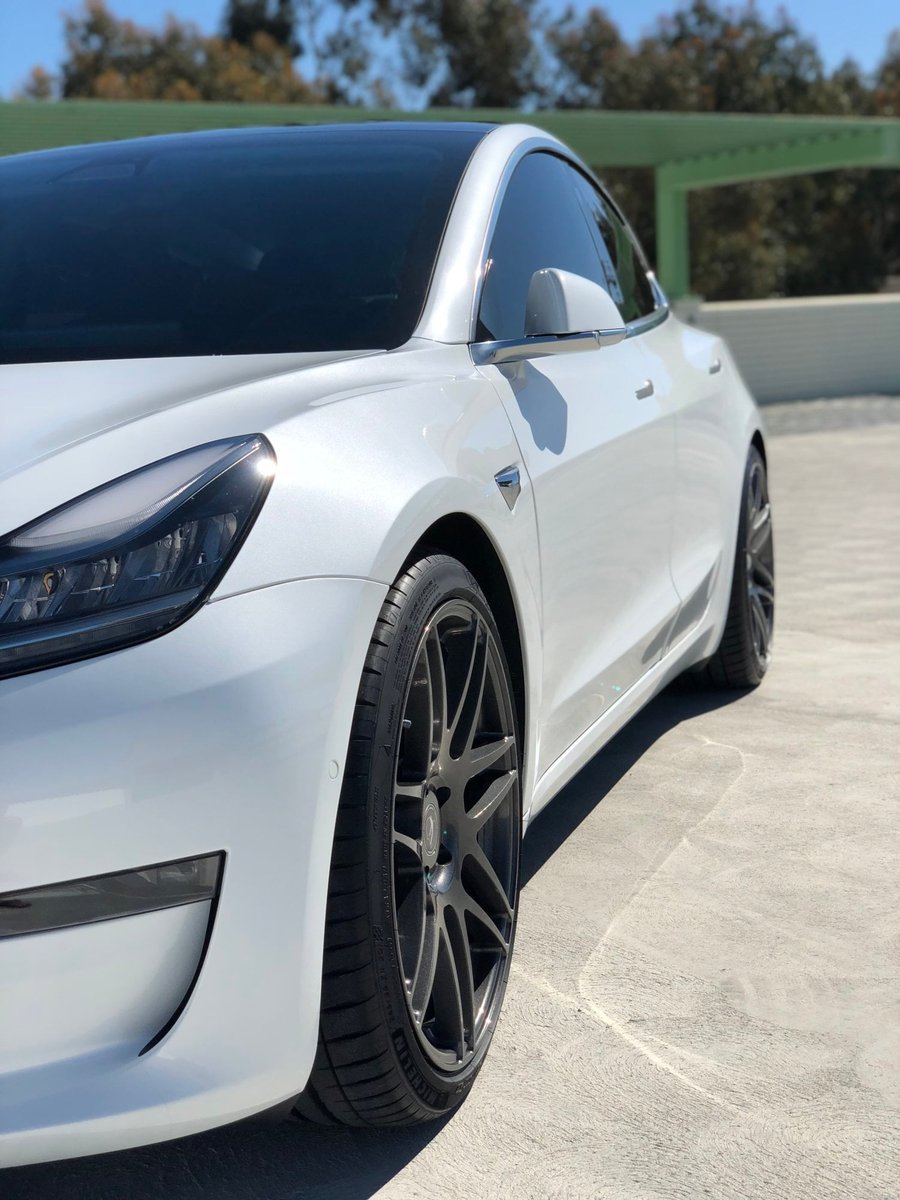

Your 2023-2026 Model 3 rolls on 18x8.5 +40 from the factory, riding that 5x114.3mm bolt pattern — one of the most flexible patterns out there. That opens up a deep catalog of aftermarket options, and stepping up to a 19" or 20" diameter transforms the stance while ditching those aero-cover snoozers.
On the flow-formed and forged side, Forgestar gives you lightweight monoblock and multi-piece looks that keep rotational weight down — which matters when you care about range and steering response. Want something with more concave and finish options? VS Forged lets you spec width, offset, and face to nail exactly the fitment you're chasing.
Prefer proven cast performance at a sharper price? Enkei has clean, track-bred designs in the 19" range that suit the Model 3's silhouette. Whatever direction you go, we'll help you dial in the right offset before you buy.
Basic 3 fitment info
- Bolt pattern: 5x114.3mm
- Bolt thread: M14 x 1.5
- Center bore: 64.1mm
- Bolt torque: 129 ft lbs
The stock 3 rolls on 18x8.5 +40 wheels wrapped in 235/45R18 tires.
Brake clearance
The 2023–2026 Model 3 runs two setups: base non-Performance brakes across RWD and Long Range, and the beefier Performance package on the Model 3 Performance. Both rear calipers have an integrated parking brake, and both front calipers are fixed with four pistons — the notable differences are the size of the front rotor, the design of the rotors (two-piece versus one-piece), and the aesthetic of the calipers (red vs. silver).
If you're on the Performance trim, the caliper is the constraint. Caliper-to-spoke clearance isn't the problem — caliper-to-barrel clearance, specifically on the rear caliper, is the issue. That makes 18s hit-or-miss; flow-formed or forged 18s have a better chance of clearing thanks to thinner barrel walls, but without test-fitting it's hard to say. Base-brake cars clear 18s without drama. Verify barrel clearance before running 18s on a Performance — no need to guess with a square 19" or 20" setup.
19-Inch Square Setup
Running a 19x8.5 Enkei square across all four corners is the sweet spot for a Model 3 — enough width for presence without going overboard. It's a clean, balanced setup that keeps rotation simple and the look consistent front to back.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | Enkei Raijin 19x8.5 +35 | Enkei Raijin 19x8.5 +35 |
| Tires | 235/40/19 | 235/40/19 |
| Notes | Stock | |

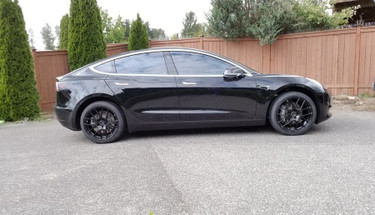

Clean and cohesive — the Enkei Raijin 19x8.5 +35 wrapped in 235/40/19 at all four corners gives this Model 3 a balanced, purposeful look. Running the same setup square keeps things tidy and consistent front to back.
On stock suspension, the Enkei Raijin 19x8.5 +35 keeps that daily-driver ride height while the +35 offset sits the face nicely under the arches. The 235/40/19 is a smart, functional pairing that looks right without overthinking it.
20-Inch Staggered Setups
Going staggered on a Model 3 is where the aggressive stance really lands, and these two builds run 20x9 wheels from Forgestar and VS Forged. Different flavors of the same idea — big diameter, wider rear presence.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | Forgestar F14 20x9 +32 | Forgestar F14 20x10.5 +43 |
| Tires | 245/30/20 | 285/30/20 |
| Notes | lowered on Tsportline springs (about 0.75" drop) | |
This Model 3 gets the staggered treatment done right. The Forgestar F14 20x9 +32 up front on 245/30/20 keeps the nose tight, while the Forgestar F14 20x10.5 +43 out back on 285/30/20 gives it that planted, meatier rear.
The Tsportline springs drop it about 0.75", just enough to clean up the arch gap without going overboard. Gloss black concave on a Tesla always reads clean, and this stance nails it.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | VS Forged VS10 20x9 +32 | VS Forged VS10 20x10.5 +45 |
| Tires | 245/35/20 | 285/30/20 |
| Notes | stock ride height | |
This Model 3 nails the staggered look without touching the ride height. The VS Forged VS10 20x9 +32 up front on 245/35/20 sets a clean face, while the wider VS Forged VS10 20x10.5 +45 on 285/30/20 plants the rear with real presence.
That extra width and beefier tire out back give it a purposeful rear-biased stance the stock car never had, and the VS10 face carries it on both ends.
Final Thoughts on Tesla 3 Fitment
Final Thoughts
Three builds, one clear takeaway: the Model 3 doesn't need anything wild to look right. Everything we featured lived in the +32 to +35 offset window across 19s and 20s, and that's a sweet spot that keeps the face sitting where you want it without asking you to rethink your whole setup. The 20x9 kept showing up for a reason — it fills the arch nicely and gives you enough width to run real meat instead of stretching for looks.
If you want the easiest decision, a square 20x9 at the offsets shown here is the setup I'd point most people toward — it's balanced, it's clean, and it works whether you're daily-driving or parking it at a meet. That said, we mixed in staggered examples too, so if you'd rather split widths front-to-rear for a more aggressive rear stance, there's a path for that as well. Neither is wrong; it comes down to whether you want simple and symmetrical or a little more visual drama out back.
