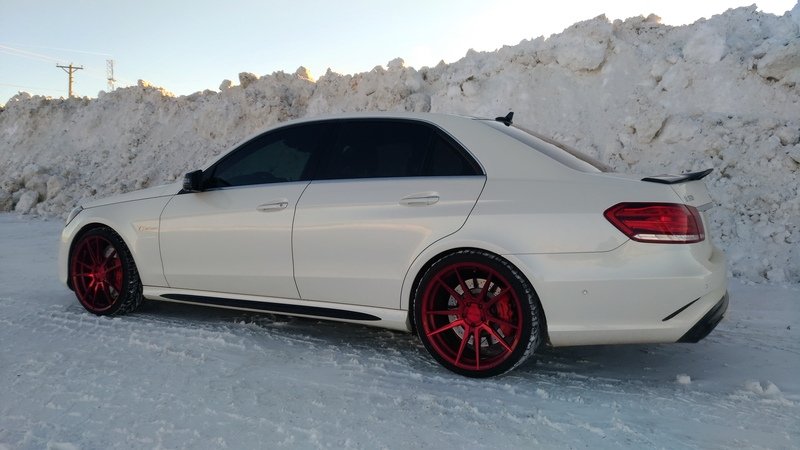

Mercedes E63 AMG S Wheel Fitment Guide | 19-20 Inch Setups
The W212 E63 AMG S is one of the best-kept secrets in the wheel world — a 577hp twin-turbo V8 sedan wearing conservative sheet metal that's begging for something more aggressive than the factory 18x9 +37 setup. The fenders have room, the body lines are clean and flat, and the 4MATIC chassis plants power well enough that you can actually use the extra rubber you bolt on.
Working with 5x112mm and a 66.6mm center bore means you're shopping the same pool as modern AMG, Audi, and VW fitments — which is to say, a deep one. Hub-centric fitment matters here; this car is heavy and fast, and a 66.6mm bore that's actually 66.6mm keeps everything quiet at 140mph.
Every setup in this guide runs staggered — narrower fronts for steering clarity and turn-in feel, wider rears to fill the arch and put more meat under the torque. That means front and rear wheels differ in width, offset, or both, and tire sizes step up out back accordingly. We've curated four builds below that show how the E63 S responds to different widths and offsets, from conservative flush to genuinely aggressive.
Quick links
- Want new wheels for your Mercedes-Benz E63 AMG S?
- Basic E63 AMG S fitment info
- 19-Inch Staggered Setup
- 20-Inch Staggered Setups
- Final Thoughts
Want new wheels for your Mercedes-Benz E63 AMG S?
The W212 E63 AMG S rolls on 5x112mm hubs, which plugs you straight into one of the deepest fitment catalogs out there — BBS, Vossen, and Rohana all build extensively for this pattern. Stock 18x9 +37 is a solid starting point, but it leaves the arches looking hungry on a 577hp sedan.
Stepping to 19" or 20" is where this chassis wakes up. Every setup featured in this guide runs staggered — narrower front, wider rear — which suits the E63's rear-biased 4MATIC layout and keeps the steering feel honest while the rear gets proper width and meat under it.
Browse the full 5x112 catalog at ThreePiece.us and pair your set with tires in the same order. Staggered means front and rear sizes differ, so spec both before checkout.
Basic E63 AMG S fitment info
- Bolt pattern: 5x112mm
- Bolt thread: M14 x 1.5
- Center bore: 66.6mm
- Bolt torque: 96 ft lbs
The stock E63 AMG S rolls on 18x9 +37 wheels wrapped in 255/35R19 front / 285/30R19 rear tires.
Brake clearance
Every W212 E63 — base and S-Model — runs six-piston fixed front calipers, so there's no small-brake trim to shop around. Factory front rotors measure 360mm, or 402mm on carbon-ceramic cars, with 360mm out back. The S-Model is the one with red calipers, and AMG Carbon Ceramic brakes — 15.8" discs — were optional exclusively on that trim.
19" is your floor. The facelift W212 uses a redesigned larger dust shield for the 4MATIC steering knuckle alongside the optional 402mm CCB setup, and that ceramic option eliminated 18" fitment for clearance reasons. On 19s, clearance to the shield is tight, so barrel profile matters as much as diameter.
Separately, the W212's front axle grease cap means a 5mm spacer is needed to run some center caps.
19-Inch Staggered Setup
Nineteens keep the E63 S looking factory-correct while still opening up the wheel wells, and staggered is the only way to do it right on a car with this much rear grip. Our pick here runs BBS in a 19x8.5 up front — classic, restrained, and exactly what an AMG sedan wants.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | BBS LM-R 19x8.5 +38 | BBS LM-R 19x9.5 +38 |
| Tires | 255/35/19 | 285/35/19 |
| Notes | KW Height Adjustable Spring kit | |
This is the answer for anyone who thinks the E63 S needs loud wheels to look serious. The BBS LM-R 19x8.5 +38 up front on 255/35/19 keeps the nose clean, while the BBS LM-R 19x9.5 +38 wrapped in 285/35/19 gives the rear the meat an AMG sedan deserves.
The KW Height Adjustable Spring kit ties it together, dropping the body just enough to kill the factory gap. Mesh on a fast Benz never gets old.
20-Inch Staggered Setups
Twenty inches is the sweet spot on the W212/W213 E63 S — big enough to fill the arches, small enough to keep the ride livable. These three staggered builds run BBS, Vossen, and Rohana up front at 20x9, with wider rear halves doing the heavy lifting.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | Rohana RF2 20x9 +25 | Rohana RF2 20x10 +45 |
| Tires | 245/30/20 | 305/25/20 |
| Notes | stock (factory height) | |
This is how you do staggered on a W212 without going overboard. The Rohana RF2 20x9 +25 up front wrapped in 245/30/20 keeps the nose tidy, while the Rohana RF2 20x10 +45 on a meaty 305/25/20 gives the rear the width an E63 S deserves.
Staying on stock ride height keeps it sleeper-spec — the wheels do all the talking here.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | Vossen VLE1 20x9 +32 | Vossen VLE1 20x10.5 +42 |
| Tires | 255/30/20 | 285/25/20 |
| Notes | Stock for now but have springs and links to be put on soon | |
The W212 E63 S already looks mean from the factory, and a proper staggered setup is exactly what it wants. The Vossen VLE1 20x9 +32 up front on 255/30/20 keeps the nose tidy, while the Vossen VLE1 20x10.5 +42 wrapped in 285/25/20 gives the rear the width the body lines were always asking for.
It's riding stock for now, with springs and links waiting to go on — that drop is going to finish the look.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | BBS CI-R 20x9 +38 | BBS CI-R 20x10 +45 |
| Tires | 265/30/20 | 295/25/20 |
| Notes | stock | |
The E63 S has always looked best when the wheels match its restraint, and BBS is the safe-bet answer here. The BBS CI-R 20x9 +38 up front on 265/30/20 keeps the nose clean and proportional.
Out back, the BBS CI-R 20x10 +45 wrapped in 295/25/20 adds the extra width the rear haunches want. Staggered, on stock suspension — exactly the OEM-plus look this car deserves.
Final Thoughts on Mercedes-Benz E63 AMG S Fitment
Four builds, four staggered setups — and that's the through-line worth remembering. The E63 AMG S is a wide, rear-biased sedan, and every configuration in this guide leans into that with a narrower front wheel and a wider rear. Staggered fitment here isn't cosmetic filler; it keeps the front turning cleanly at lock while giving the rear the tire footprint it needs to put down the power. Going square on this chassis throws away that balance.
Diameters landed at 19" and 20" across the guide, with 20x9 showing up as the most common size — typically as the front half of a staggered pairing. Offsets stayed in a tight +25 to +38 window, which is exactly what you'd expect on a 5x112mm sedan with this much factory fender and track width. The higher end of that range pulls the face in for a cleaner, more OEM-plus look; the lower end pushes toward the fender edge for a more aggressive stance. Pick your side of that range based on the look you want, not based on chasing a number.
If you want the straightforward path: start with a 20" staggered setup in the +25 to +38 range and match tire sizing to the wheel width so you've got real meat on the rear. Everything in this guide runs on the same 5x112mm pattern, so your search is about width, offset, and finish — not compatibility. ThreePiece.us stocks the brands featured in these builds along with the tires to wrap them, so once you've settled on a look, the whole package is in one place.
