Ford Maverick Wheel Fitment Guide: 4 Real 5x108 Builds

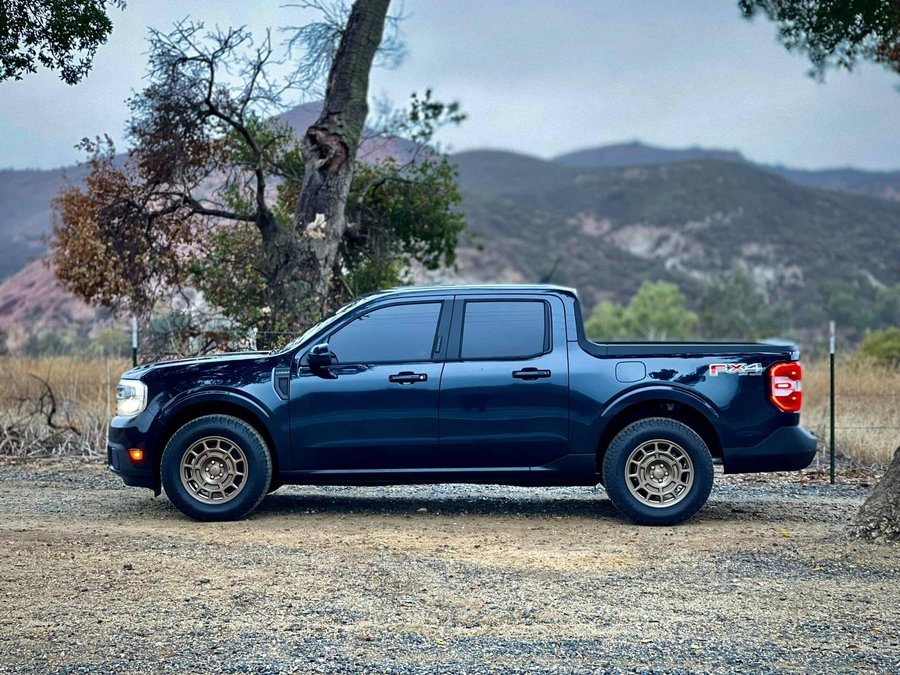

The Ford Maverick is one of the best blank canvases Ford has built in years. Unibody platform, 5x108mm bolt pattern shared with half the Ford lineup, 63.4mm center bore, and a stock 17x7 +37 setup that leaves an embarrassing amount of room in the arches. That factory fitment is conservative by design — which means almost anything you bolt on is an upgrade.
The 5x108 pattern opens up a massive catalog. Focus ST wheels, Fusion wheels, and a deep bench of aftermarket options all bolt straight up, so you're not hunting for obscure sizing or waiting on custom drill work. Drop the offset into the +20s or low +30s and widen the barrel, and the Maverick's stance tightens up immediately without touching the suspension.
We've put together four square setups here — same wheel, same tire, all four corners. Square keeps rotation simple, keeps the ride predictable, and honestly looks right on a truck this size. Each build below covers the exact diameter, width, offset, and tire size so you can see how the numbers translate to real-world stance before you commit. Pick the look you're after and work backward from there.
Quick links
- Want new wheels for your Ford Maverick?
- Basic Maverick fitment info
- 17-Inch Square Setup
- 18-Inch Square Setups
- 20-Inch Square Setup
- Final Thoughts
Want new wheels for your Ford Maverick?
The Maverick rolls off the line on 17x7 +37 — a narrow, high-offset setup that leaves plenty of room to work with. Its 5x108mm bolt pattern is shared with a big chunk of the Ford family, so you're not hunting for one-off fitments. That opens up a real catalog: Vors, Revolve, TSW, and Reika all build in 5x108.
Diameter-wise, 17, 18, and 20 inches are the sweet spots. Staying at 17 keeps sidewall for gravel roads and bed loads. Eighteens split the difference — more face, still enough rubber to absorb a pothole. Twenties are the visual play: they fill the arches and make the truck look intentional instead of economical.
Every setup featured below is square — same wheel, same tire, all four corners. Simple, rotatable, and it suits the Maverick's proportions.
Basic Maverick fitment info
- Bolt pattern: 5x108mm
- Bolt thread: M14 x 1.5
- Center bore: 63.4mm
- Bolt torque: 148 ft lbs
The stock Maverick rolls on 17x7 +37 wheels wrapped in 225/65R17 tires.
Brake clearance
No Maverick trim leaves the factory with Brembos. XL, XLT and Tremor run the standard front setup on 17-inch wheels, while Lariat and Lobo ship on 19s — 225/55R19 on both, versus 225/65R17 on the base trims. Ford specs the Lobo with upgraded front brakes using two-piston calipers, a larger rotor and larger pads, 19-inch turbofan wheels standard, with 225/65R17 standard elsewhere and 225/55R19 on Lobo and Lariat. The Lobo's dual-piston front calipers come from the European Focus ST.
17 inches is your floor on standard-brake trucks — 16s risk the caliper contacting the wheel barrel, not the spokes. Lobo owners should plan on 18s minimum and mock up before committing.
Stock geometry is 5x108, 63.4mm bore, roughly +44 offset , a 5×108 mm pattern with 63.4 mm center bore and +44 mm offset — use that as your baseline when comparing barrel clearance.
17-Inch Square Setup
Seventeens are the sweet spot on a Maverick if you want sidewall and a stance that doesn't fight the truck's proportions. We've got one square 17x8 build here on Reika — same wheel at all four corners, no guesswork.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | Reika R30 Drifter 17x8 +20 | Reika R30 Drifter 17x8 +20 |
| Tires | 245/65/17 | 245/65/17 |
| Notes | HRG 1.5" lift kit | |
This is the Maverick build that finally looks like the truck Ford teased in the concept art. The Reika R30 Drifter 17x8 +20 at all four corners keeps things clean and purposeful — no showboating, just a matched square setup that reads like factory-plus.
The 245/65/17 sidewall is the real hero here, adding meat the stock rubber never had. Paired with the HRG 1.5" lift, the Maverick sits level and ready instead of hunched over.
18-Inch Square Setups
Eighteens are the sweet spot on a Maverick — enough face to fill the arch without wrecking the ride quality. These two square setups run Vors in 18x8.5 and Revolve in 18x8, same wheel at all four corners.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | Vors VR8 18x8 +35 | Vors VR8 18x8 +35 |
| Tires | 255/50/18 | 255/50/18 |
| Notes | Stock | |
The Maverick's factory look leans utilitarian, and a clean square setup fixes that fast. Vors VR8 18x8 +35 at all four corners with the black finish and gold rivets gives it a purposeful, motorsport-flavored face without going loud.
The 255/50/18 wrapped around them keeps real sidewall in play, so the truck still looks like it can work. On stock suspension, it's a straightforward, matched-corner build that just looks right.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | Revolve APVD No. 0119 18x8.5 +38 | Revolve APVD No. 0119 18x8.5 +38 |
| Tires | 255/55/18 | 255/55/18 |
| Notes | Stock | |
This is the Maverick doing exactly what it should — a clean square setup on all four corners with the Revolve APVD No. 0119 18x8.5 +38. The uniformity is the whole point here; nothing looks mismatched from any angle.
Wrapping them in 255/55/18 keeps real sidewall in the equation, which suits a truck riding on stock suspension. It's a grown-up look — no drama, just a Maverick that finally has wheels worth noticing.
20-Inch Square Setup
Square 20s are the easy answer on a Maverick — one width, four corners, zero guesswork on tire rotation. This section covers a TSW setup running 20x8.5 all around.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | TSW Ascent 20x8.5 +40 | TSW Ascent 20x8.5 +40 |
| Tires | 255/45/20 | 255/45/20 |
| Notes | Stock | |
The Maverick's factory look leans utilitarian, and going up to a TSW Ascent 20x8.5 +40 at all four corners cleans it up immediately. Square setup, no drama — same wheel, same tire, front and rear.
The 255/45/20 gives the 20-inch diameter some visual meat instead of leaving it looking stretched over a rim. On stock suspension, this is the kind of change that makes people look twice without touching ride height.
Final Thoughts on Ford Maverick Fitment
The Maverick's 5x108mm bolt pattern opens up a deep catalog of wheels, and the four builds in this guide show how differently the truck reads depending on where you land. A 17 keeps sidewall on the table and lets the Maverick look like a truck. An 18 splits the difference. A 20 stretches the wheel arch out and makes the whole thing sit like a street truck — and 20x8.5 was the size that showed up most across these setups.
Offsets across everything featured here ran from +20 to +40, and that spread does real work. Closer to +40, the wheel sits further inboard and the face tucks under the arch for a factory-plus look. Down toward +20, the face pushes out toward the fender edge and fills the opening much harder. Every build here is square — same wheel and tire on all four corners — which is the easy call on this truck. It keeps rotations simple, keeps the stance consistent front to rear, and takes the guesswork out of ordering.
If you want the safest starting point, build off 20x8.5 in the middle of that +20 to +40 window and adjust based on how flush you want the face sitting. Want more sidewall for gravel roads and pothole season? Step down to a 17 or 18 and run more tire. ThreePiece.us carries the brands featured in this guide along with tires to match, so you can spec the wheel and rubber together and get it right the first time.
