Best Coilovers for the Ford Mustang S550 (2015-2023)
The S550 Mustang's independent rear suspension was the platform's biggest selling point and its biggest surprise to traditional Mustang buyers — and it changes everything about how you approach a coilover upgrade. Unlike the live-axle cars, the S550 actually rewards quality suspension hardware. A good coilover here doesn't just drop the car; it transforms the chassis dynamics, flattens body roll, and gives you a ride height you can actually live with daily or push on track. The complication: MagneRide. If your car has the optional MagneRide damping system, not every kit will work without deleting it. Know what you have before you buy. Beyond that, the main variables are damper quality, spring rate split between street and track use, and whether you want pillow-ball top hats or OEM-style rubber mounts. We carry the kits that get actually used on S550 builds — not catalog filler. Here's how they stack up.
Quick links
- 1. BC Racing BR-Series
- 2. Fortune Auto 510 Series
- 3. Fortune Auto 500 Series
- 4. Pedders Extreme Xa (Standard)
- 5. Pedders Extreme Xa (MagneRide)
- 6. ISC N1 Street Sport
- 7. ISC Basic Street Sport
- How to choose coilovers for the S550
- FAQ
1. BC Racing BR-Series Coilovers — Ford Mustang S550 (2015–2021)
BC Racing BR-Series Coilovers for the S550 Mustang — $1195
BC Racing's BR-Series is the benchmark for street-daily coilovers in this price range, and for good reason: 30-way rebound-adjustable monotube dampers, true coilover height adjustment independent of spring preload, and a fitment that's been refined over enough S550 builds to be genuinely dialed. The spring rates are conservative enough to keep daily driving tolerable without sacrificing the body roll reduction that makes the IRS chassis actually work. If you're building a street car that occasionally sees an open track day, this is the sensible starting point at $1195.

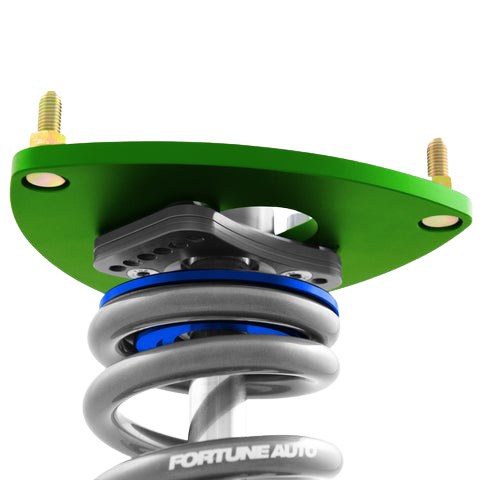

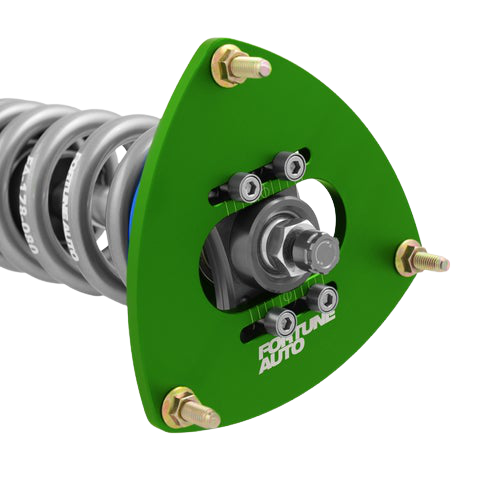

2. Fortune Auto 510 Series Coilovers — Ford Mustang S550 (2015+)
Fortune Auto 510 Series Coilovers for the Mustang S550 — $2399
Fortune Auto's 510 is where the S550 suspension conversation gets serious. These are Penske-lineage single-adjustable dampers with Öhlins-style twin-tube technology repackaged at a price that stops well short of full race-spec gear. The separate-style rear fitment is important — it accounts for the S550's IRS geometry correctly, which cheaper kits get wrong. Front endlinks are included, which matters because the stock links are a known weak point once you drop the car. Track-day regulars who aren't ready to go full coilover custom should be looking here at $2399.

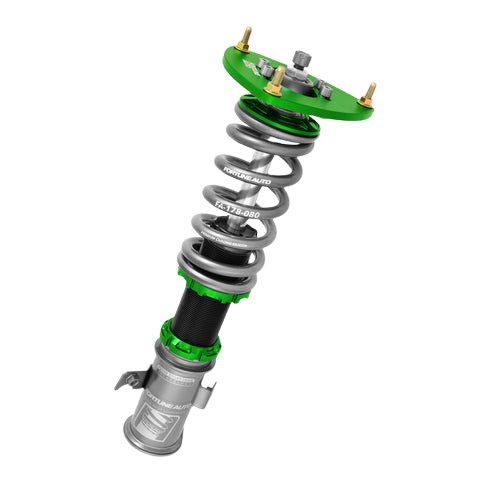

3. Fortune Auto 500 Series Coilovers — Ford Mustang S550 (2015+)
Fortune Auto 500 Series Coilovers for the Mustang S550 — $1968
The 500 Series slots under the 510 in Fortune Auto's lineup but doesn't cut corners where it counts: same Öhlins-derived twin-tube construction, same correct separate-style rear fitment, front endlinks included. The main difference is the damper tune — the 500 leans slightly more street, making it a better fit for owners who want Fortune Auto's build quality without the 510's more aggressive valving. At $1968, it's the sweet spot for enthusiasts who drive their car hard on weekends but put real miles on it during the week.
4. Pedders Extreme Xa Coilover Kit — Ford Mustang S550 (2015+, Standard Suspension)
Pedders Extreme Xa Coilover Kit for the S550 Mustang (Standard) — $1573
Pedders is the name in Ford Mustang-specific suspension engineering — they've been developing for the S550 platform since launch and their Extreme Xa kit reflects that depth of chassis knowledge. The included camber plates are not an afterthought; they're engineered specifically for the S550's front geometry and allow proper alignment after drop, which is something most budget kits ignore entirely. Pedders tunes their springs and dampers together as a matched system, and it shows in how the car responds. At $1573 with plates included, the value is legitimate.

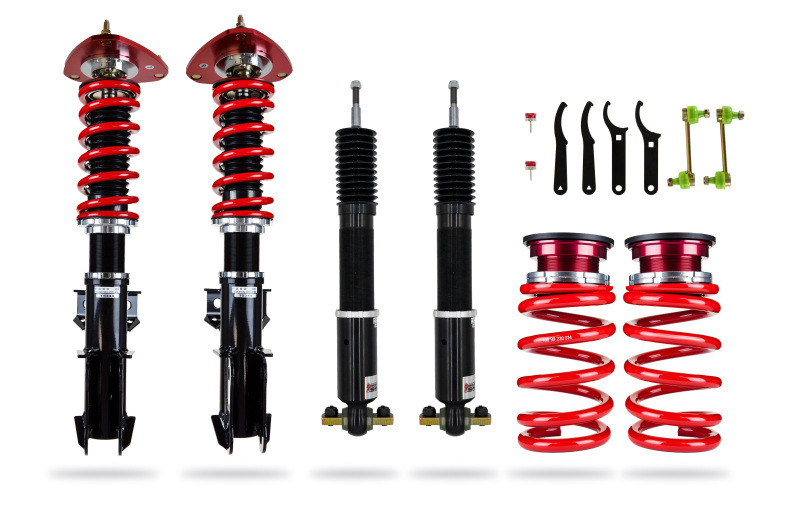

5. Pedders Extreme Xa Coilover Kit — Ford Mustang S550 (2015–2022, MagneRide)
Pedders Extreme Xa Coilover Kit for the S550 Mustang (MagneRide) — $1573
If your S550 came with MagneRide — standard on GT350, GT350R, and optioned on GT and GT500 — this is the specific kit you need, and it's not interchangeable with the standard version. Pedders engineered this kit to work correctly with the MagneRide system, avoiding the harshness and geometry issues that come from installing a non-MagneRide coilover on a car that originally had it. Same Extreme Xa damper quality, same correct tuning approach, just properly spec'd for your specific car. Don't guess — check your build sheet and buy the right version at $1573.
6. ISC N1 Coilover Kit — Street Sport (2015–2019 Ford Mustang)
ISC N1 Street Sport Coilovers for the S550 Mustang — $1199
ISC's N1 kit upgrades the damper body to a true monotube design with 32-way dampening adjustment — more tuning range than most people will use, but that granularity is useful if you're dialing in a specific corner or moving between track and street configurations without swapping hardware. The Street Sport tune runs softer spring rates than the Track/Race version, making it appropriate for cars that see real street use. At $1199, the N1 competes directly with BC Racing and generally wins on build quality per dollar. Note the 2015–2019 fitment window — confirm your year before ordering.
7. ISC Basic Coilover Kit — Street Sport (2015–2019 Ford Mustang)
ISC Basic Street Sport Coilovers for the S550 Mustang — $1081
The ISC Basic is the entry point of the ISC lineup — twin-tube construction with 16-way damping adjustment, which is still more than most coilovers at this price offer. The Street Sport tune prioritizes daily drivability while still dropping the car to a usable stance and reducing body roll meaningfully over OEM. If your budget ceiling is firm and you're not planning track use, this is the honest choice at $1081. ISC also offers a Track/Race version of the Basic kit and an N1 Track/Race variant at $1199 if your use case skews harder.
How to choose coilovers for the Ford Mustang S550
MagneRide or not — this is the first question. GT350, GT350R, and GT500 cars came standard with MagneRide. Standard GT and EcoBoost cars could be optioned with it. If you have MagneRide, you need a kit explicitly designed for it (Pedders makes one) or you need to delete MagneRide entirely and use a standard kit — which requires an emulator or tune. Do not mix and match.
Street vs. Track spring rates. The S550 IRS is sensitive to spring rate pairing. Too stiff in the rear and the car becomes oversteery under power — not in a useful way. Street-tuned kits (ISC Street Sport, Fortune Auto 500, BC Racing BR) run more compliant rates that keep the rear planted. Track/Race tunes are stiffer and better suited to prepped surfaces, sticky tires, and proper alignment work. Don't buy a track-tune kit for a car you drive to work every day.
Damper adjustability and what it actually means. More clicks doesn't automatically mean better. What matters is whether the damper's adjustment range is meaningfully tuned across the sweep. Fortune Auto and ISC N1 both deliver real variance across their adjustment ranges. Budget twin-tubes often have a narrow effective band with most clicks making negligible difference.
Top hats and alignment. Dropping the S550 on coilovers will move you out of factory alignment spec — guaranteed. Kits like the Pedders Extreme Xa include camber plates to correct this. If your kit doesn't include plates, budget for an alignment with adjustable components. Running improper camber on a lowered S550 will eat tires and degrade handling.
Rear fitment style. The S550's rear suspension geometry means coilovers need a separate-style rear mount design. Fortune Auto specifically notes this on their 500 and 510 kits. Confirm rear fitment compatibility on any kit you're considering — the S550 rear is not a generic coilover application.
Also browsing suspension for other builds? See our guides on best coilovers for the VW GTI Mk7 and best coilovers for the Subaru WRX. If you're building the S550 further, check out our guides on best cold air intakes, best big brake kits, and best exhaust for the Mustang GT. Once the suspension is sorted, the wheels go on — browse our full wheels catalog and suspension category.
FAQ
Do these coilovers fit both EcoBoost and GT models?
Most kits in this guide fit both EcoBoost and GT variants of the S550 — the chassis and suspension geometry is the same between the two. The critical variable is MagneRide, not engine. Confirm your car's suspension configuration (standard or MagneRide) before purchasing, regardless of engine.
Will these coilovers work on a 2022 or 2023 S550?
The Fortune Auto 500 and 510 Series, as well as the Pedders Extreme Xa kits, explicitly cover 2015+ and 2015–2022 fitment respectively. The ISC kits list 2015–2019 fitment — if you have a 2020–2023 S550, prioritize Fortune Auto, Pedders, or BC Racing which cover the later production years. Always verify fitment via the product page before ordering.
Do I need an alignment after installing coilovers on the S550?
Yes, without exception. Any height change from OEM will alter your alignment — camber, toe, and caster will all move. Plan for a four-wheel alignment immediately after install. If you're dropping more than 1.5 inches, consider camber plates up front (Pedders includes these) to bring camber back into a usable range for street or track.
Can I delete MagneRide and run a standard coilover kit?
Yes, but it requires either an aftermarket tune that disables the MagneRide system or a standalone MagneRide emulator. Without one of these, the MagneRide control module will throw codes and the system will behave unpredictably. If you want to avoid that complexity, the Pedders MagneRide-compatible Extreme Xa is the cleaner solution.
