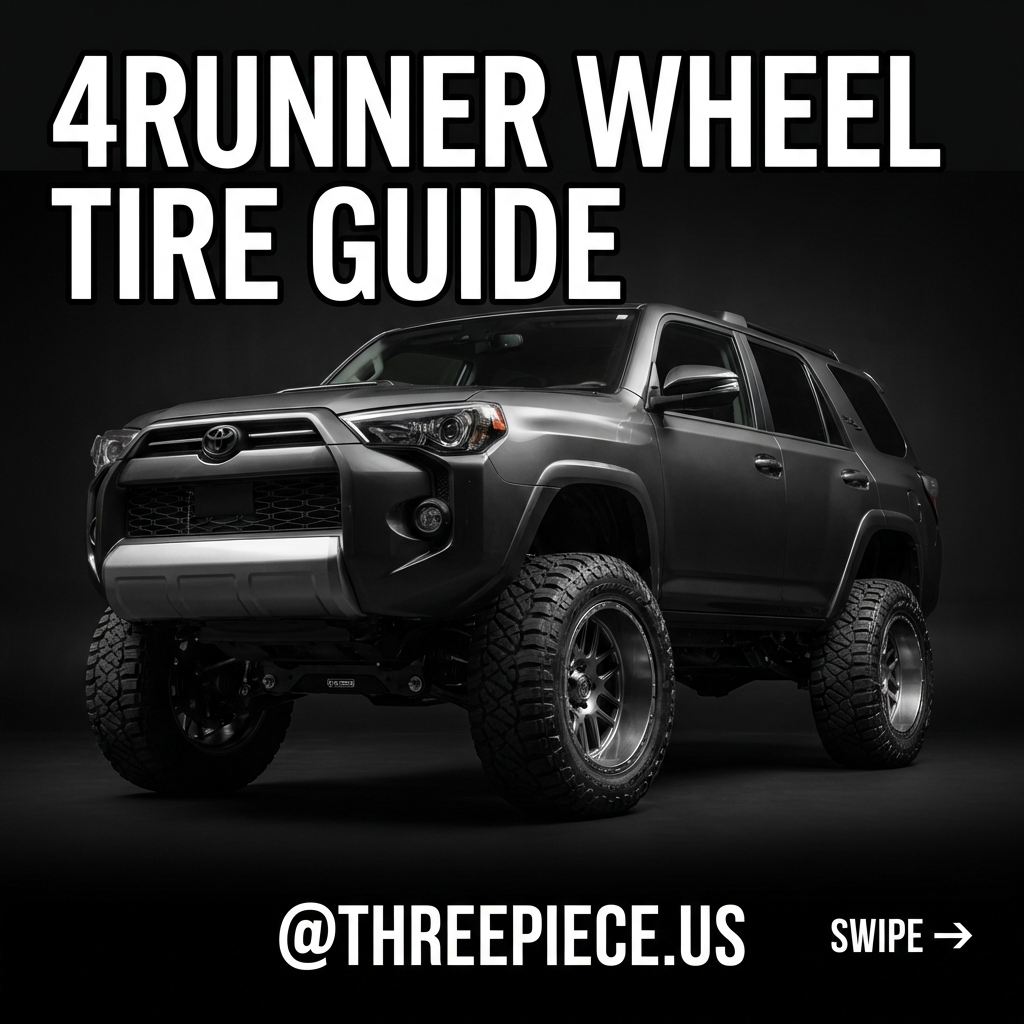

Toyota 4Runner Wheel & Tire Guide: Stock to TRD Pro to Built

The Toyota 4Runner is one of the most capable off-road platforms straight from the factory, but most owners completely mess up their wheel and tire setup. Unlike solid-axle trucks that forgive offset mistakes, the 4Runner's IFS front end punishes poor fitment choices with rubbing, CV joint wear, and compromised performance. Whether you're keeping it stock height or building it for serious trails, the math has to work.

Quick links

• Stock Height Specs
• Leveled & Small Lift Territory
• Big Lift Builds
• Popular Setups That Work
• Tire Selection Guide

Stock Height Specs That Actually Clear

Stock 4Runner comes with 17x7 +4mm offset wheels wrapped in 265/70R17 tires at $267 for quality all-terrain rubber. This sizing works across all trim levels from SR5 to TRD Pro, but you can push bigger without modifications.

The sweet spot for stock height is 285/70R17 tires on the factory wheels — no rubbing, minimal trimming required. If you're upgrading wheels, 18x8 with +10 to +25mm offset maintains proper geometry while giving you more tire options. Browse 18x8 wheels in 6x139.7 to see what fits your build budget.

For tire upgrades on stock suspension, the American Roadstar AT 285/70R17 at $186.99 offers excellent value, while the Falken Wildpeak A/T3W P285/70R17 at $329 provides premium performance. Both clear stock fender wells without modification.

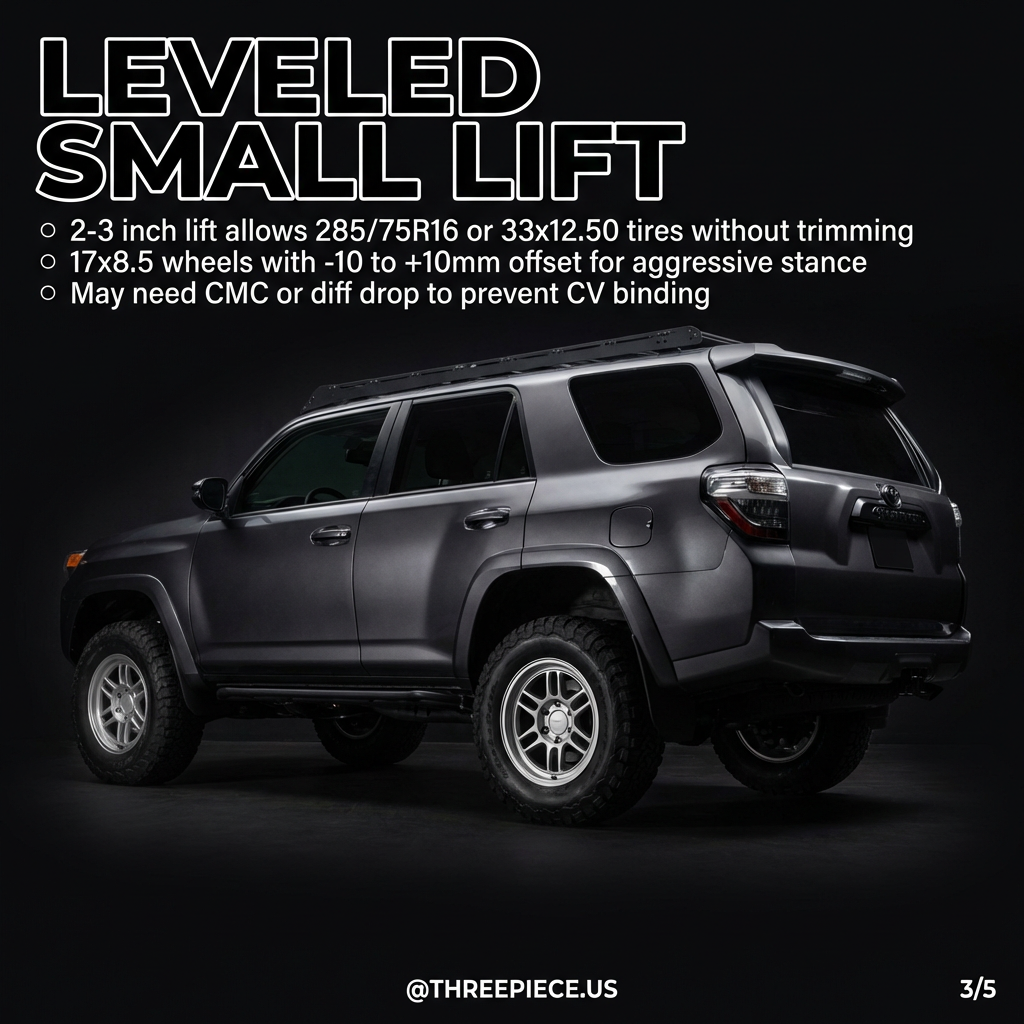

Leveled & Small Lift Territory

A 2-3 inch lift opens up the tire world significantly. You can now run 285/75R16 or 33x12.50 tires without trimming, but wheel offset becomes critical. The Falken Wildpeak A/T3W LT285/75R16/10 at $326 is the go-to choice for this setup.

For wheels, 17x8.5 with -10 to +10mm offset gives you that aggressive stance without destroying CV joints. Too negative and you'll stress the front end components — something covered in our wheel offset guide. The American Roadstar AT 285/75R16 at $177.99 provides budget-friendly performance for this setup.

Critical note: you may need a CMC (Caster Misalignment Corrector) or diff drop to prevent CV binding with aggressive offset wheels. This isn't optional — it's insurance against expensive drivetrain damage. Check out our suspension upgrades guide for proper geometry correction methods.

Big Lift Builds That Actually Work

Running 6+ inch lifts with 37x12.50 tires requires serious commitment beyond just suspension. You'll need 17x9 wheels with -12mm offset to clear the massive rubber, but more importantly, you need regearing to 4.88 or 5.29 ratios for drivability.

Beadlock wheels become essential for serious off-road work with low air pressures. The math is simple: 37-inch tires on stock 4.10 gears turn your 4Runner into a dog on the street. Don't build a mall crawler — build it right or keep it stock.

For suspension components, quality matters more than brand names. The suspension category shows options that actually work for big builds, not Instagram flex shots.

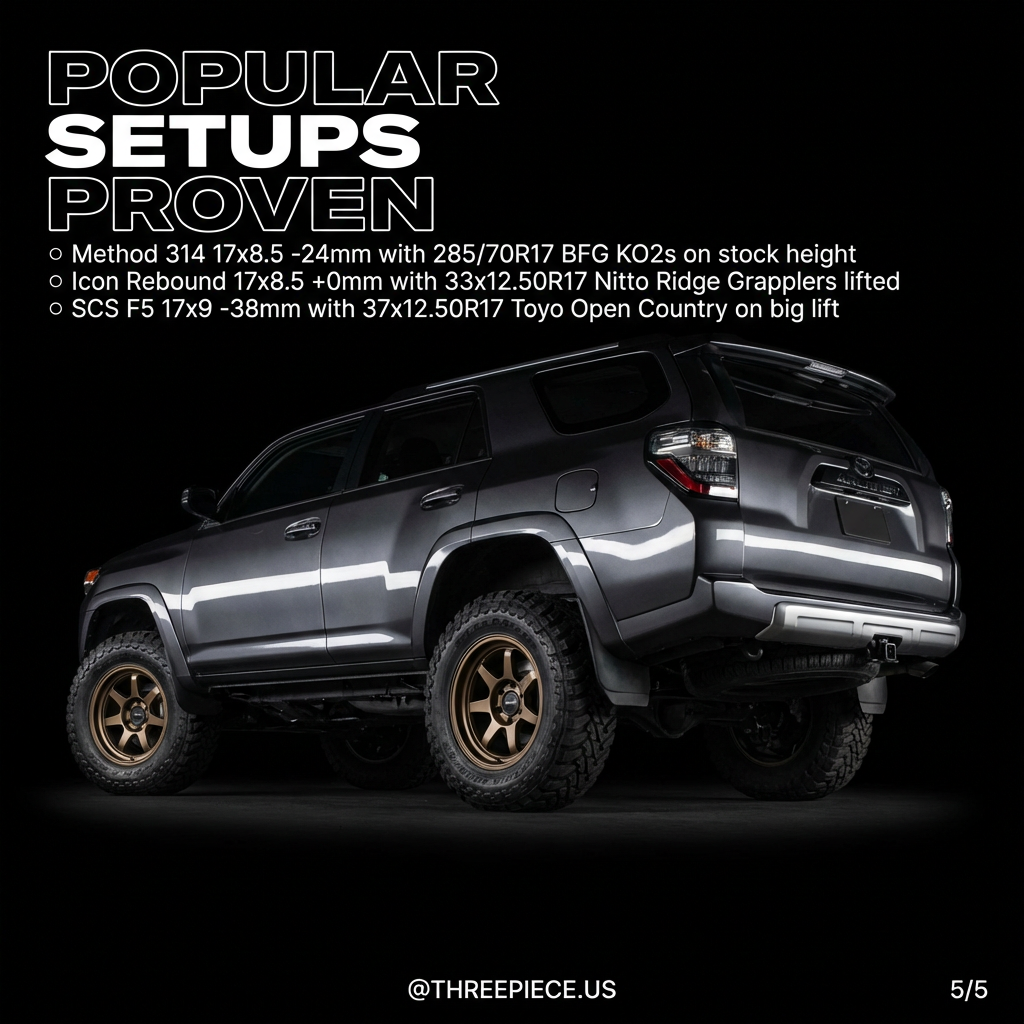

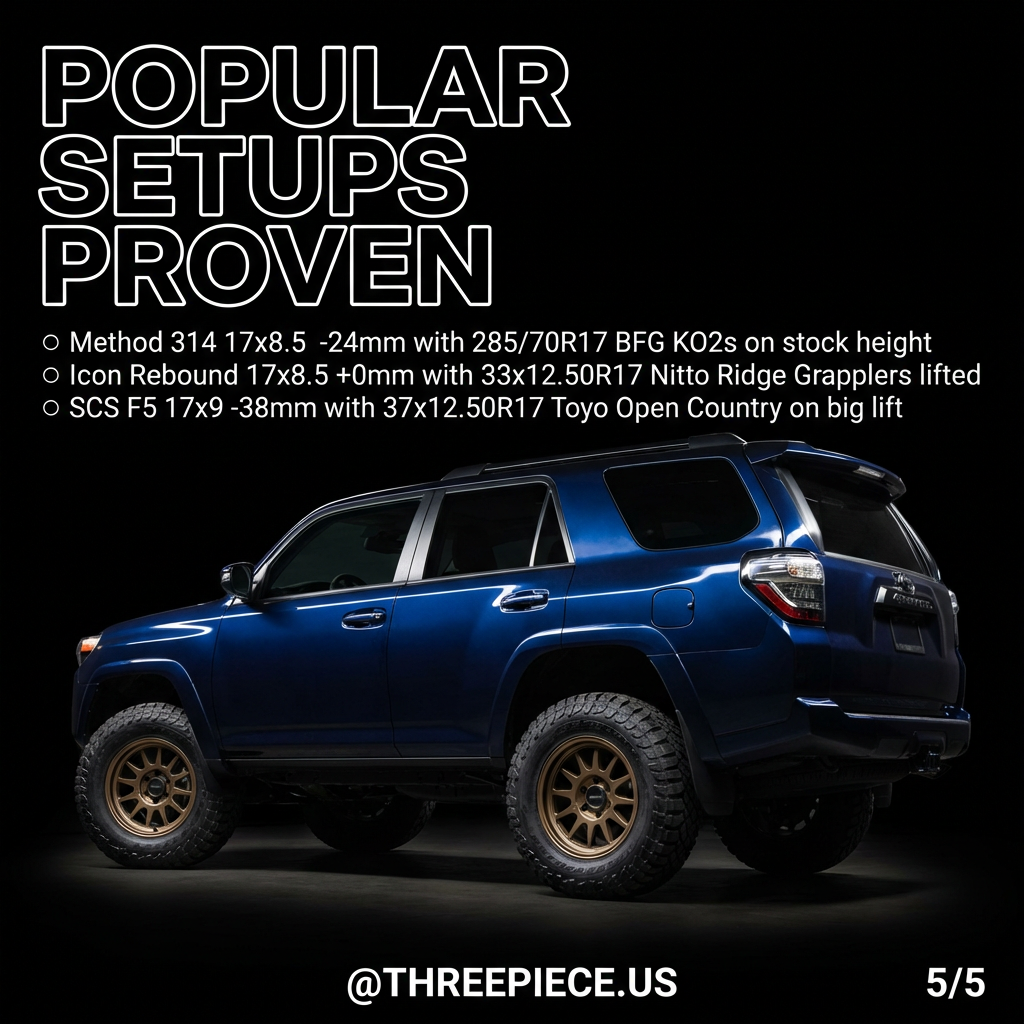

Popular Setups That Work

These combinations come from builders who actually wheel their trucks, not showroom queens:

Stock Height Aggressive: Method 314 17x8.5 -24mm with BFGoodrich All-Terrain T/A KO2 LT285/70R17 at $353.70. This combo requires minor trimming but delivers maximum tire footprint on stock suspension.

Leveled Sweet Spot: Icon Rebound 17x8.5 +0mm with 33x12.50R17 Nitto Ridge Grapplers. Perfect balance of stance and function for 2-3 inch lifts. The BFGoodrich All-Terrain T/A KO3 LT285/75R16 at $349.89 offers similar performance in a different size.

Big Build Territory: SCS F5 17x9 -38mm with 37x12.50R17 Toyo Open Country. This is serious off-road equipment that requires proper supporting modifications.

Notice the pattern: successful builds match wheel offset to intended use. Street-focused setups stay closer to stock offset, while trail rigs push negative offset for tire clearance. Our Tacoma wheel guide covers similar principles for Toyota's mid-size truck platform.

Tire Selection That Makes Sense

Tire choice depends more on your actual driving than Instagram aesthetics. The American Roadstar HT 265/70R17 at $180.99 works perfectly for highway-focused builds, while aggressive all-terrains like the American Roadstar AT 265/70R17 113T at $124.11 handle mixed use.

For serious off-road work, load rating matters more than tread pattern. The American Roadstar AT 265/70R17 121S at $182.99 provides higher load capacity for heavy builds with armor and gear.

Don't forget supporting modifications. The aFe MACH Force-XP 2.5in Cat-Back Exhaust at $748.45 helps the V6 breathe with bigger tires, while the ARB Safari Snorkel at $674.74 protects your engine during serious trail work.

Check out our tire priority guide for more insights on why rubber matters more than most modifications. For lighting upgrades, the Morimoto Carbide LED Headlights and AlphaRex LUXX LED Projector Headlights at $800.65 provide serious visibility improvements for night driving.

Build It Right or Keep It Stock

The 4Runner's IFS front end doesn't forgive poor fitment choices like solid-axle trucks. Get the offset wrong and you'll destroy CV joints. Run tires too big for your gearing and you'll hate driving it. But get the combination right, and you'll have one of the most capable daily-drivable off-road platforms available.

Browse our vehicle gallery for build inspiration, or check our F-150 wheel guide if you're considering full-size alternatives. The 4Runner rewards thoughtful builds — make sure yours is one of them.
