2003-2007 Infiniti G35 Wheel Fitment Guide - Specs, Offsets & Photos
The 2003–2007 Infiniti G35 — known internally as the V35 platform — remains one of the most popular chassis in the aftermarket wheel community, and for good reason. It shares DNA with the Nissan 350Z (the FM platform underneath is nearly identical), which means wide fender arches, generous wheel wells, and a rear-drive layout that begs for staggered setups. Whether you've got the coupe or the sedan, there's a massive body of real-world fitment data out there, and we've gathered the best of it here.
The G35 came in two body styles: a coupe and a sedan. Both share the same bolt pattern, hub bore, and basic suspension geometry, but the fenders are shaped a bit differently. The coupe's rear arches are wider and more forgiving, which is why you'll see more aggressive offsets on coupes. Sedans can absolutely run wide wheels too — they just need a little more attention to fender work and camber. Wheel diameters range from 18 to 21 inches on this platform, with 19 and 20 being the sweet spots. Let's break it down.
Quick Links
- Basic Fitment Info
- Platform Notes
- 18-Inch Setups
- 19-Inch Setups
- 20-Inch Setups
- 21-Inch / Mixed Diameter Setups
Basic Fitment Info
- Bolt pattern: 5x114.3mm
- Center bore: 66.1mm
- OEM wheel size: 17x7.5 +35
All 2003–2007 G35 models — coupe and sedan — use a bolt pattern of 5x114.3mm with a 66.1mm center bore. The factory wheel is a modest 17x7.5 +35. Aftermarket setups typically range from 18 to 20 inches in diameter, with widths spanning 8.5 to 11 inches and offsets anywhere from +45 down to -12 depending on how aggressive you want to go. Staggered setups are the norm — wider in the rear to fill those generous rear fender arches.
Platform Notes: Coupe vs. Sedan, Brembos, and AWD
The G35 coupe has slightly wider rear fenders than the sedan, giving you roughly 10–15mm more clearance before you need to start rolling or pulling. If you're on a sedan, expect to need fender work a little sooner when running aggressive widths and offsets.
Brembo brake packages (standard on sport models and available as an option) use larger calipers that require careful attention to spoke clearance. If your G35 has Brembos, you'll generally need at least an 18-inch wheel, and certain spoke designs may still require spacers to clear. Several builds below specifically note Brembo clearance — pay attention to those if you're running the big brakes.
The G35x (AWD sedan) adds a front differential and CV axles that slightly alter front suspension geometry. AWD models can still run aftermarket wheels, but the front inner fender clearance is tighter. The build data below includes a G35x example so you can see what works.
18-Inch Setups
19-Inch Setups
19 inches is the G35's natural home. The diameter fills the wheel well almost perfectly, and there's a massive range of widths and offsets that work. From conservative daily setups to wild show builds, 19s give you the most flexibility. Let's dig in.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | Volk GTS 19x9.5 +17 | Volk GTS 19x10.5 +18 |
| Tires | 245/35/19 | 275/35/19 |
| Notes | Coupe. Rear fenders rolled flat. No spacers. DF210 springs. Camber: F -2.0° / R -2.5° | |
This is a textbook aggressive G35 coupe setup. Volk GTS wheels at 19x9.5 +17 front and 19x10.5 +18 rear — those low offsets push the lip right to the fender edge. The rear arches are rolled flat but no spacers are needed, which is ideal. With DF210 springs providing a moderate drop and about -2.0 to -2.5 degrees of camber, everything tucks and clears. The 245/275 tire combo is the classic G35 stagger that nearly every experienced builder on this platform gravitates toward.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | Work VS-XX 19x9.5 +28 R-disk | Work VS-XX 19x10.5 +29 O-disk |
| Tires | 235/35/19 | 255/35/19 |
| Notes | Coupe. Fronts pulled slightly, rears rolled flat and pulled. 25mm front / 30mm rear spacers (Project Kics). Universal Air Suspension FBSS. Camber: F -2° / R -4.1° | |
This is what happens when you go all-in on an air suspension build. Work VS-XX wheels are already stunning, but the real story here is the combination of spacers and air that lets this coupe sit frame-on-ground when parked and drive without destroying fenders. The base offsets of +28/+29 aren't crazy, but add 25mm and 30mm spacers and the effective offset drops dramatically. That -4.1 degrees of rear camber tells you everything about how tight the clearances are back there. This is a show-level build that still drives.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | Ro_Ja R2-7 19x9 +20 | Ro_Ja R2-7 19x10 +12 |
| Tires | 245/35/19 | 275/35/19 |
| Notes | Coupe. No fender work (rears need rolling — rubbing reported). No spacers. OEM 350Z springs. No camber adjustment. | |
Here's the raw, unfinished version of an aggressive 19-inch setup — and that's actually what makes it useful. At 19x9 +20 front and 19x10 +12 rear with no fender work, no spacers, and no camber kit, the rears rub. That's the boundary. This tells you exactly where the G35 coupe's limit is on stock-ish fenders with 350Z springs. The 275/35 rears need rolled arches at this offset. If you're planning a similar setup, budget for fender rolling and a rear camber kit — you'll need both to make these offsets live comfortably.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | Volk GTS 19x9.5 +17 | Volk GTS 19x10.5 +18 |
| Tires | Falken 452 235/35/19 | Falken 452 275/35/19 |
| Notes | 2004 coupe. Rears rolled. No spacers. 350Z Tein S-Techs. | |
| Fitment Facts | ||
| Front | Rear | |
| Wheels | 19x8.5 +35 (with 25mm spacer) | 19x8.5 +35 (with 25mm spacer) |
| Tires | 245/40/19 | 245/40/19 |
| Notes | Fenders rolled and flared ~25mm front and back. Eibach Sportline springs (later switched to Tanabe coilovers). Camber: F ~-2.5° / R ~-2.0°. 25mm spacers caused rubbing on inclines — reduced to 20mm. | |
| Fitment Facts | ||
| Front | Rear | |
| Wheels | 5Zigen Gravis 1 19x8.5 +38 | 5Zigen Gravis 1 19x9.5 +38 |
| Tires | 245/40/19 | 255/40/19 |
| Notes | 2005 sedan. Rears rolled only. No spacers currently (planning +15 front spacer later). Tanabe Pro5 coilovers. Ichiba rear camber, SPL V2 front. | |
High offsets on a G35 — +38 front and rear — and the result is a very tucked, OEM-plus look. The wheels sit well inside the fender arches, giving ample clearance and a no-drama daily driving experience. The 40-series tires (245/40 and 255/40) add sidewall height that further softens the ride. On Tanabe Pro5 coilovers, this sedan is lowered but not slammed — there's still some fender gap, especially up front. The plan to add a 15mm front spacer would bring the effective front offset to +23 and make the front end considerably more flush. As-is, this is a conservative but very clean sedan setup.

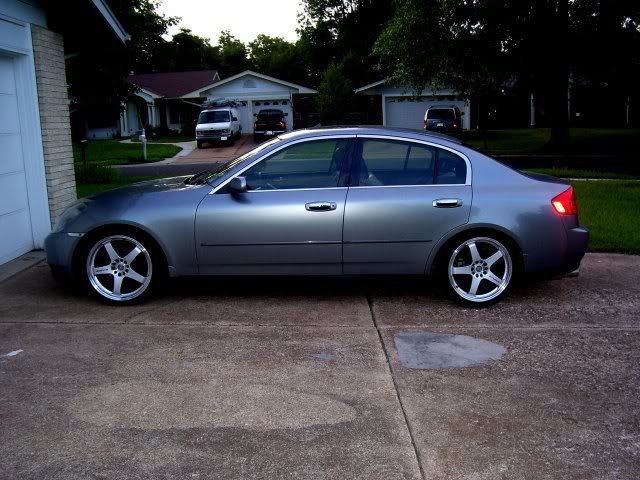

| Fitment Facts | ||
| Front | Rear | |
| Wheels | Rays Nismo LMGT4 19x8.5 +25 | Rays Nismo LMGT4 19x8.5 +15 (with 10mm spacer) |
| Tires | 225/40/19 | 255/35/19 |
| Notes | 2004 G35x (AWD) sedan. Rears rolled flat. 10mm Ichiba V1 spacers rear. Tein Sedan S-Techs. Ichiba rear camber kit. Camber: F -2.0° / R -3.3° | |
Here's the AWD G35x build we mentioned earlier. The Nismo LMGT4 is one of those heritage wheels that just belongs on a Nissan/Infiniti platform. At 19x8.5 with +25 front and an effective +15 rear (via 10mm spacer), this is a moderate stagger in offset only — the widths are squared. That -3.3 degrees of rear camber is doing a lot of heavy lifting to clear the 255/35 rears on rolled fenders. The higher rear camber is partly because Tein sedan S-Techs don't have the same compression damping control as coilovers, so more static camber compensates for body roll. A solid AWD reference build.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | Volk GT-C 20x9.5 +22 | Volk GT-C 20x10.5 +26 |
| Tires | 245/35/20 | 275/30/20 |
| Notes | Coupe. Fenders rolled moderately. No spacers. Stance LX+ coilovers. Camber: -2.0° all around. | |
Wait — these are 20s, not 19s, but we're including the card here for context. Actually, let's move this to the proper section below.

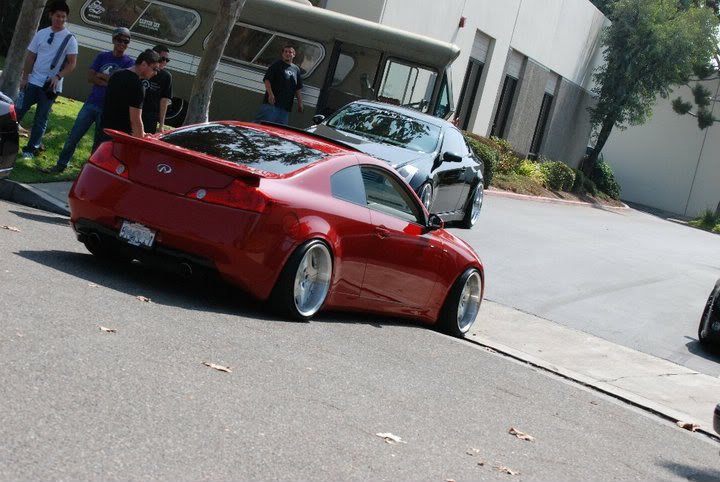

| Fitment Facts | ||
| Front | Rear | |
| Wheels | Auto Couture Supreme 19x10 +12 (with 20mm spacer = effective -8) | Auto Couture Supreme 19x11.5 +12 (with 20mm spacer = effective -8) |
| Tires | 245/35/19 | 275/35/19 |
| Notes | 2003 coupe with Brembos. Fenders rolled and pulled. Tein Basic coilovers. No camber kit. | |
Negative eight effective offset. Let that sink in. At 19x10 and 19x11.5 with 20mm spacers on top of a +12 base offset, these Auto Couture Supremes are poking well beyond the fender line. The fenders are rolled and pulled to make room, and on Tein Basics with no camber kit, this is pushing the absolute limit of what's possible on a G35. The 11.5-inch rear width is one of the widest on this list. This is a show-car build — driving it daily would be a commitment. But the visual impact is undeniable.

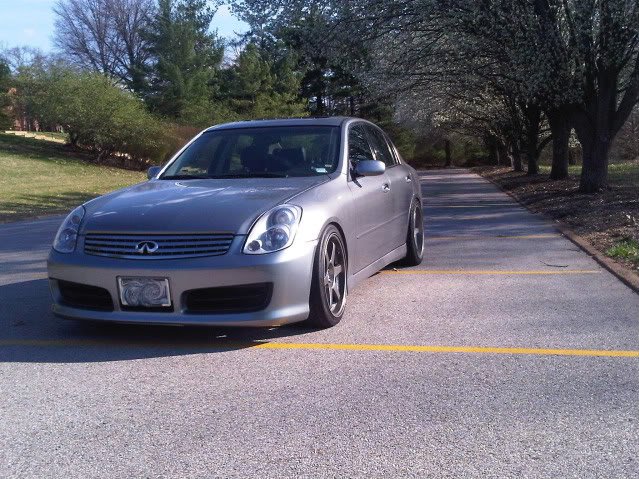

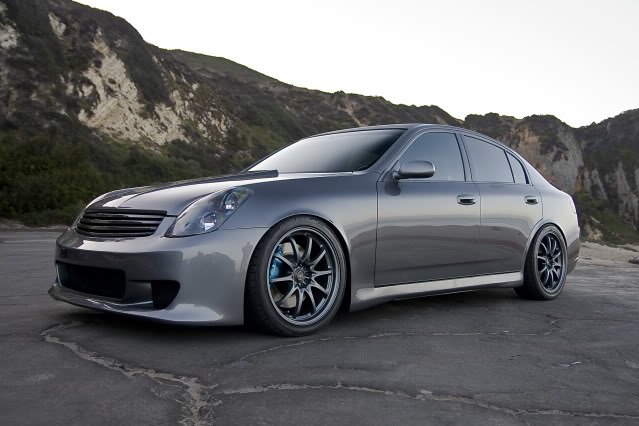

| Fitment Facts | ||
| Front | Rear | |
| Wheels | JLB Apollo 19x8.5 +10 (with 10mm spacer) | JLB Apollo 19x9.5 +20 (with 20mm spacer) |
| Tires | 225/40/19 | 255/35/19 |
| Notes | Rears rolled flat. BC Racing Type BR coilovers. Camber: F -2° / R -2.75° | |
With spacers, the effective offsets here are 0 front and 0 rear — zero offset all around. That's aggressive. The JLB Apollo's multi-spoke design with a deep lip gives this coupe a VIP-adjacent look. BC Racing BR coilovers handle the height, and -2.0/-2.75 camber keeps the tires tucked. The 225/40 front is a slightly taller sidewall that helps with ride quality, while the 255/35 rear fills the arch. Fenders are rolled flat in the rear. This is a clean example of how far you can push 19x8.5 and 19x9.5 with the right spacer and suspension combo.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | 5Zigen Gravis 1 19x8.5 +23 (15mm spacer) | 5Zigen Gravis 1 19x9.5 +33 (5mm spacer) |
| Tires | 225/40/19 | 245/40/19 |
| Notes | Sedan. Rear fenders flattened. Tanabe Pro5 coilovers. Camber: F -2.1° / R -2.8° | |
Same 5Zigen Gravis 1 wheels as the sedan build above, but with different specs and spacers — and a dramatically different result. The 15mm front spacer brings the effective front offset to +8, while the 5mm rear spacer brings it to +28. With the car dropped three inches on Tanabe Pro5 coils, there's less than 2mm of clearance front and rear. That is razor-thin. SPL and Stillen camber kits handle the alignment, and the flattened rear fenders are the only body modification. If you like living on the edge — literally millimeters of it — this is your reference build.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | Axis Penta 19x8.5 +40 | Axis Penta 19x9.5 +45 |
| Tires | 245/35/19 | 245/35/19 |
| Notes | 2006 sedan. Rears just rolled. Tein Flex with EDFC. Spacers planned. | |
On the opposite end of the offset spectrum — +40 front and +45 rear. These are high offsets that tuck the wheels deep into the fender wells. On a sedan with Tein Flex coilovers and EDFC electronic damper control, this is a comfortable daily setup. The 245/35 tires all around on 8.5 and 9.5-inch widths aren't stretched at all. The rears were freshly rolled at the time of this post, and spacers were planned to bring the wheels more flush. As configured, this is about as conservative as aftermarket 19-inch fitment gets on a G35 — plenty of room for future adjustments.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | 19x9.5 +45 (with 25mm spacer) | 19x9.5 +33 (with 25mm spacer) |
| Tires | 245/35/19 | 275/35/19 |
| Notes | Coupe. Front fenders rolled, rear fenders cut. 25mm spacers all around (adapters to convert lug pattern). Eibach Pro-kit. Megan camber arms. Camber: F -2.1° / R -2.3° | |
An interesting setup because the spacers here double as lug pattern adapters — the base wheels aren't 5x114.3, so 25mm adapters convert the bolt pattern while also pushing the wheels outward. The effective offsets land at roughly +20 front and +8 rear. With the front fenders rolled and rears cut, plus Eibach Pro-kit springs and Megan camber arms dialing in about -2 degrees all around, the 245/35 and 275/35 tires clear without drama. This is a creative workaround for running wheels that weren't originally drilled for the G35's bolt pattern.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | Volk G10 19x9.5 +22 | Volk G10 19x10.5 +22 |
| Tires | Vredestein Ultrac Sessanta 265/30/19 | Vredestein Ultrac Sessanta 295/30/19 |
| Notes | 2005 coupe. Seibon +10mm carbon fiber front fenders. Rears rolled. 5mm Ichiba spacers all around with ARP extended studs. Ohlins DFV suspension. | |

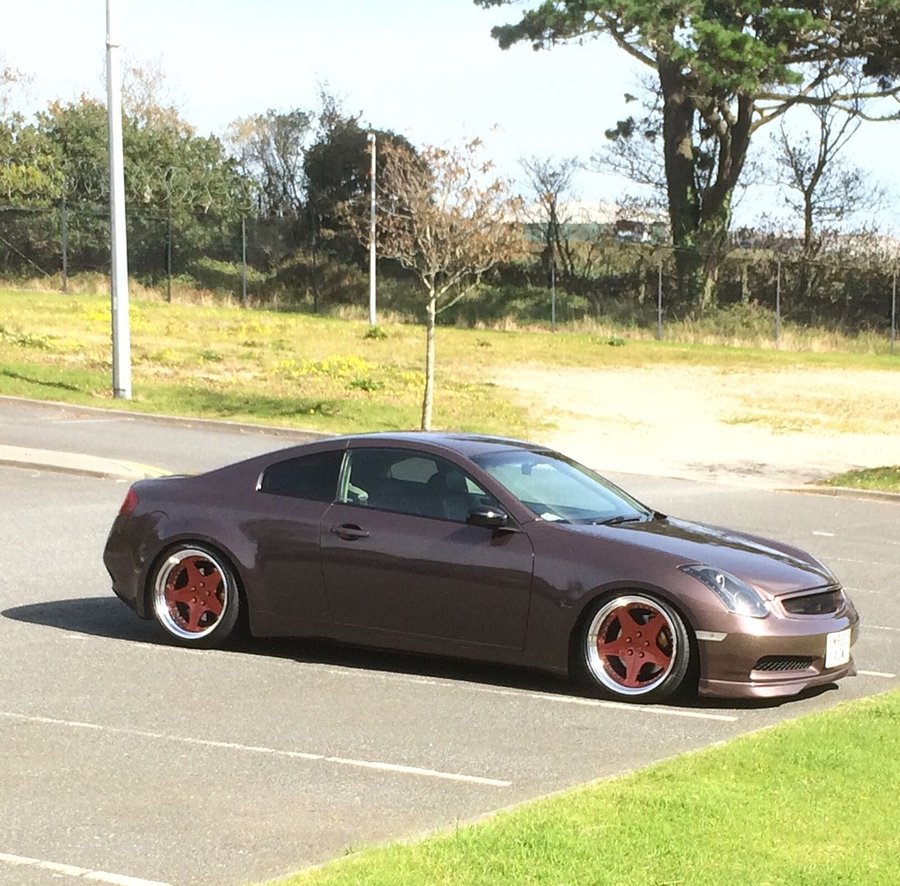

| Fitment Facts | ||
| Front | Rear | |
| Wheels | Leon Hardiritt Orden 19x9 +6 | Leon Hardiritt Orden 19x10 -6 |
| Tires | Vredestein Ultrac Vorti 225/35/19 | Vredestein Ultrac Vorti 245/35/19 |
| Notes | 2003 coupe with 350Z Brembos front and rear. Front and rear rolled flat. 20mm front spacers for caliper clearance. BC BR coilovers. Japspeed front camber arms. Volk Racing tuner nuts. | |

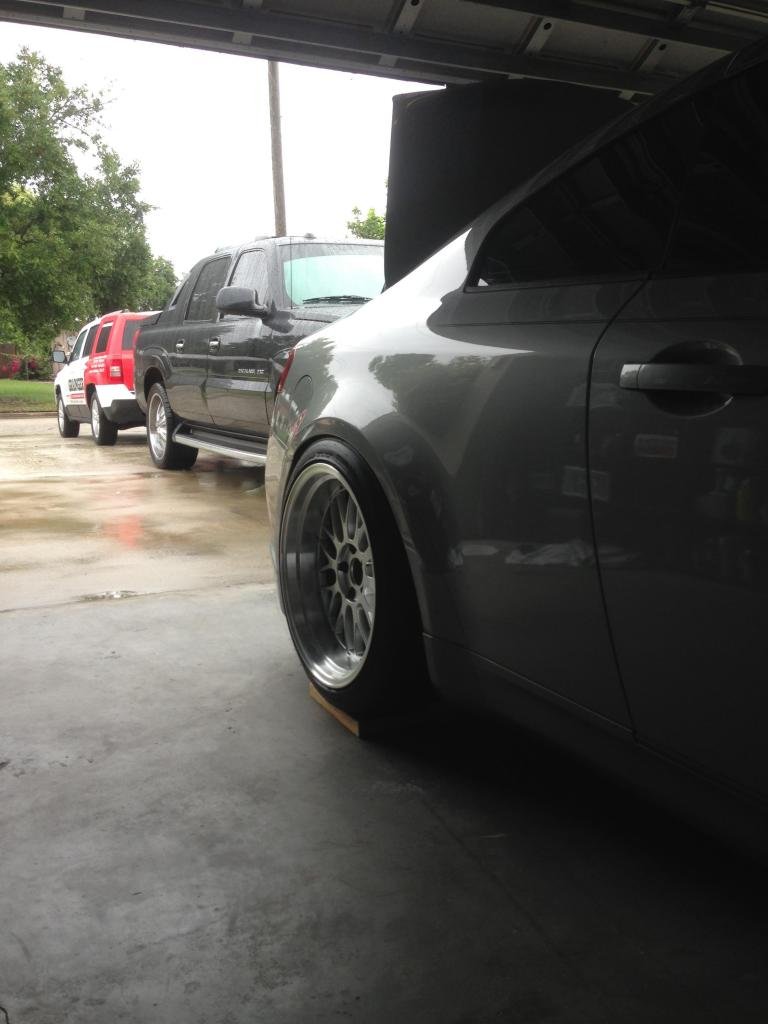

| Fitment Facts | ||
| Front | Rear | |
| Wheels | (not specified) | VS ES1 19x11 +5 |
| Tires | (not specified) | 275/35/19 |
| Notes | Lowered on BC coilovers. Rolled fenders. | |
Only the rear specs were shared here, but they're worth noting. A 19x11 +5 rear with a 275/35 tire on BC coilovers with rolled fenders — that's a lot of wheel tucked into the rear arch. The +5 offset on an 11-inch barrel means significant lip depth, and the 275/35 tire fills that width without excessive stretch. On BC coilovers with rolled fenders, it all fits. This is a good data point if you're shopping for rear-only specs on an 11-inch-wide wheel.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | Sportline TE.6 19x9.5 | Sportline TE.6 19x10.5 |
| Tires | Falken 255/40/19 | Michelin Pilot Super Sport 285/40/19 |
| Notes | Lowered on Eibach Pro-kit springs. Camber: -2° all around. No camber kit. | |
Big meaty tires here — 255/40 fronts and 285/40 rears on 9.5 and 10.5-inch-wide Sportline TE.6 wheels. The 40-series sidewall is taller than most builds on this list, giving the car a more muscular, performance-oriented look rather than the stretched-tire aesthetic. On Eibach Pro-kit springs with -2 degrees of camber and no aftermarket camber kit, the setup is relatively straightforward. The offsets weren't specified, but the fitment speaks for itself. If you prioritize grip and tire life over tuck and stretch, bigger sidewalls on 19s is the way to go.

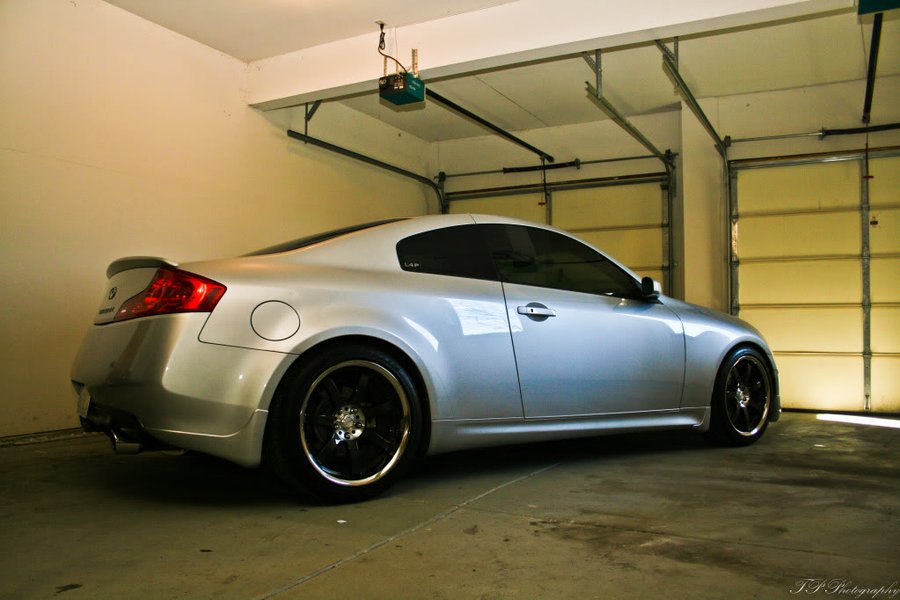

| Fitment Facts | ||
| Front | Rear | |
| Wheels | Ro_Ja R2-7 19x9 +20 | Ro_Ja R2-7 19x10 +12 |
| Tires | 245/40/19 | 275/35/19 |
| Notes | 2006 coupe. OEM 350Z springs. | |
Don't screw up your fitment.
Browse hundreds of cars in our Fitment Gallery. Get inspired & get it right the first try.
Post your own ride to help others!
20-Inch Setups

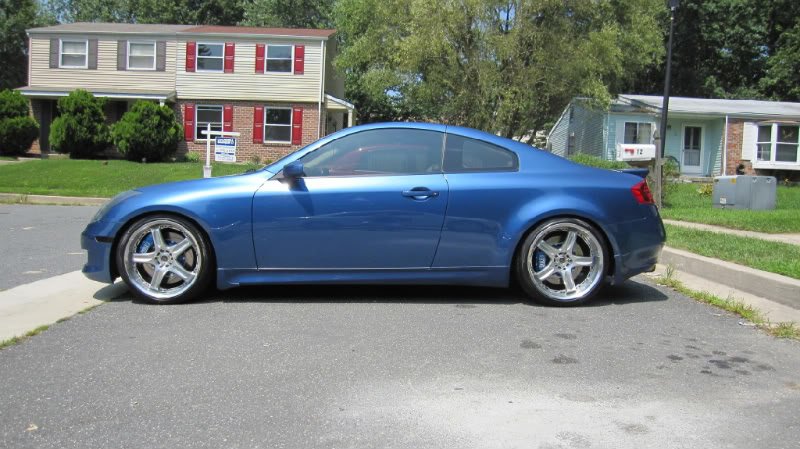

| Fitment Facts | ||
| Front | Rear | |
| Wheels | Volk GT-C 20x9.5 +22 | Volk GT-C 20x10.5 +26 |
| Tires | 245/35/20 | 275/30/20 |
| Notes | Coupe. Fenders rolled moderately. No spacers. Stance LX+ coilovers. Camber: -2.0° all around. | |
Volk GT-C at 20x9.5 +22 and 20x10.5 +26 — much more moderate offsets than the previous 20-inch build, and the result is clean fitment with only moderately rolled fenders and no spacers. On Stance LX+ coilovers with -2.0 degrees of camber, the 245/35 fronts and 275/30 rears sit neatly within the arches. This is the civilized way to run 20s on a G35 coupe. The Volk GT-C's split-spoke design keeps the weight manageable for a 20-inch wheel, and the +22/+26 offset combo is repeatable for anyone who wants 20s without cutting fenders.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | Work Varianza T1S 20x9.5 +5 | Work Varianza T1S 20x10.5 +5 |
| Tires | Toyo 225/35/20 | Toyo 255/35/20 |
| Notes | Fenders rolled. JIC Magic coilovers. No spacers. | |
Work Varianza T1S at 20x9.5 +5 and 20x10.5 +5 — same offset front and rear, which is an interesting choice. On JIC Magic coilovers with rolled fenders and no spacers, the Toyo 225/35 fronts and 255/35 rears manage the width. That +5 offset on a 20-inch wheel puts significant lip past the fender line. The 225/35 front is stretched on a 9.5-inch barrel, but on a 20-inch diameter, the visual effect is less dramatic than it would be on a 19. "True stance is defined by offsets" — that was the builder's mantra, and these Work Varianza specs deliver on that philosophy.
The first build in this guide also featured Work Varianza T1S wheels in 20-inch — 20x9.5 +5 A-disk front and 20x10.5 +5 O-disk rear with 225/35 and 255/35 rubber on Stance LX coilovers. That build ran -2.3 front and -3.0 rear camber. Between these two T1S builds, you can see how different suspension setups and camber settings accommodate the same wheel specs.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | XXR 521 20x8.5 +32 (with 20mm spacer) | XXR 521 20x10.5 +30 (with 5mm spacer, 10mm being shipped) |
| Tires | General Exclaim UHP 245/35/20 | General Exclaim UHP 295/30/20 |
| Notes | BC coilovers. Rear Ichiba camber kit. Toe bolts pending. | |
| Fitment Facts | ||
| Front | Rear | |
| Wheels | Rohana RC5 20x9 +15 | Rohana RC5 20x10.5 +15 |
| Tires | 225/35/20 | 275/30/20 |
| Notes | Stance SS coilovers. Stance toe arms and rear camber arms. Camber: F ~-2.5° / R -3° | |
Rohana RC5 wheels at 20x9 +15 and 20x10.5 +15 — the concave face of the RC5 really shines at these specs, with the low offset pushing the center of the spoke outward and deepening the concavity. The 225/35 front is stretched on the 9-inch barrel, while the 275/30 rear fills the 10.5-inch width more naturally. On Stance SS coilovers with dedicated Stance toe and camber arms, the alignment is dialed tight at about -2.5 front and -3.0 rear. This is an aggressive, well-sorted build — the kind that turns heads at meets.
| Fitment Facts | ||
| Front | Rear | |
| Wheels | Nissan GTR factory 20x9 (~+40, with 20mm spacer) | Nissan GTR factory 20x10.5 (~+20) |
| Tires | 235/30/20 | 285/30/20 |
| Notes | Coupe. Arches rolled front and rear. 20mm front spacer only. BC coilovers. Factory camber settings. | |
| Fitment Facts | ||
| Front | Rear | |
| Wheels | Avant Garde M540 20x10.5 +20 | Avant Garde M540 20x10.5 +15 |
| Tires | 225/35/20 | 225/35/20 |
| Notes | Airlift Autopilot V2 air suspension. | |
Avant Garde M540 at 20x10.5 all around — squared width with a staggered offset of +20 front and +15 rear. The 225/35 tires are stretched on 10.5-inch barrels at all four corners, creating a concave, aggressive face with visible barrel. On Airlift Autopilot V2, this car can air out for photos and rise up for driving — the best of both worlds for wide, low-offset 20s. Avant Garde wheels offer strong value at the 20-inch size point, making this an accessible way to get wide, concave 20s on a G35.
21-Inch / Mixed Diameter Setup
Find the Right Wheels for Your G35
Whether you're running 18s for track duty, 19s for the perfect all-around look, or 20s to make a statement, we can help you find the right wheels in the right specs. Use our vehicle fitment search to browse wheels that are confirmed to fit the 2003–2007 Infiniti G35 platform.
Final Thoughts
The G35 V35 platform is one of the most well-documented fitment communities in the entire aftermarket world. Between the coupe and sedan, there are hundreds of confirmed setups spanning every diameter from 18 to 21 inches. The sweet spot for most builds is 19x9.5 to 19x10.5 with offsets between +15 and +30 — that range covers everything from flush daily setups to aggressive weekend warriors. For 20-inch builds, expect to need fender work and camber kits once you go below +20 offset. And regardless of diameter, a quality set of coilovers and rear camber arms will be your best friends when dialing in fitment.
Every build in this guide came from real G35 owners who documented their specs, their clearance issues, and their solutions. Use their experience to avoid the same mistakes and get your fitment right the first time. And if you're still not sure what spec to run, reach out — we've helped hundreds of G35 owners find the perfect setup, and we're always happy to talk wheels.
