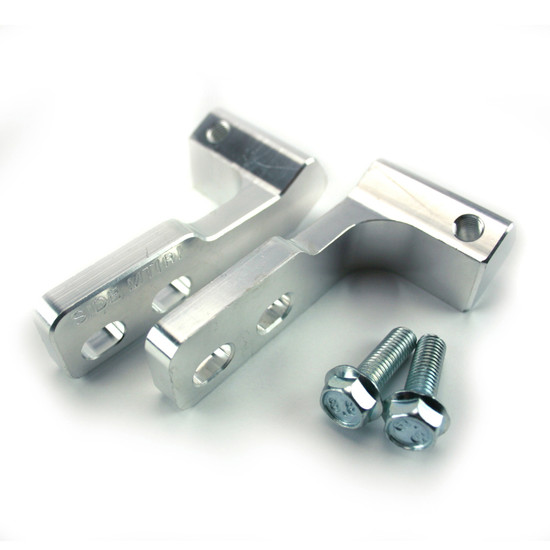

Cycra Triple-Clamp Mount System - Silver - 1CYC-1055-02

The Cycra Triple-Clamp Mount System (Silver) – Part #1CYC-1055-02 is the original Cycra triple clamp side mount solution for dirt bikes and off-road motorcycles equipped with pinch bolts on the sides of their upper triple clamp. Designed to anchor Cycra's full wrap-around handguards at the triple clamp rather than the bar ends, this mount system dramatically improves handguard stability, cable clearance, and overall bar real estate — making it a go-to upgrade for enduro, motocross, and trail riders who demand solid, no-spin handguard protection.

Key Features & Benefits

• Mounts Directly to Upper Triple Clamp Side Pinch Bolts: By anchoring to the side pinch bolts on the upper triple clamp (on compatible models), the system locks handguards in place so they cannot spin or rotate on the handlebars — a common frustration with bar-end-only mounting setups.
• Maximum Cable Clearance: The triple clamp mounting position keeps the mount out of the cable routing area on the bars, reducing the risk of cable interference or pinching — a real-world advantage on bikes with densely packed handlebar controls.
• Frees Up Handlebar Space: Moving the outboard anchor point to the triple clamp instead of the bar end opens up valuable bar space for other accessories like bark busters, controls, or grips — especially useful on bikes with shorter or tighter bar configurations.
• Compatible with Cycra Full Wrap-Around Handguards: This system is designed to work with Cycra's wrap-around handguard lineup, ensuring a matched, purpose-built fitment rather than a cobbled-together solution.
• Durable Billet Aluminum Construction: CNC-machined from billet aluminum for a precise fit and lasting durability — the silver finish gives it a clean, factory-style appearance that looks at home on a race-prepped or trail-ready machine.
• Compact and Lightweight: Weighing just 0.5 lb, the mount system adds virtually no meaningful weight to your setup while significantly improving handguard security.

Specifications

• Part Number: 1CYC-1055-02
• Brand: Cycra
• Color: Silver
• Weight: 0.5 lb
• Dimensions: 2 x 3 x 1 in
• Material: CNC-machined billet aluminum

Fitment

The Cycra Triple-Clamp Mount System with Side Mount is designed for motorcycles that have pinch bolts located on the sides of the upper triple clamp. This configuration is common on many motocross, enduro, and dual-sport bikes. The system is referenced in real-world use on models such as the WR426F and CRF230F, among others in the off-road segment.

Important: This mount system requires longer pinch bolts than stock to secure the side mount to the triple clamp. Replacement bolts are NOT included and must be sourced separately. Before ordering, verify that your bike's upper triple clamp features side-located pinch bolts — models with top-only or differently positioned pinch bolt configurations may not be compatible without modification.

What's in the Box

• Cycra Triple-Clamp Mount System with Side Mount – Silver (1CYC-1055-02)

Note: Longer pinch bolts required for installation are not included. Handguards sold separately.

Why Buy from ThreePiece.us

At ThreePiece.us, we specialize in off-road and motorcycle protection gear and can help you confirm fitment before you buy — just reach out if you're unsure whether your triple clamp layout is compatible with this mount system. Every order ships free, no minimums, no surprises. Need to spread out the cost? We offer financing through Affirm so you can gear up now and pay on your schedule.

Frequently Asked Questions

Do longer pinch bolts come with this kit?

No. Longer pinch bolts are required to mount the side mount bracket to your upper triple clamp, but they are not provided in the kit. You will need to source the appropriate bolts separately based on your specific bike's triple clamp dimensions.

What handguards does this mount system work with?

This system is compatible with Cycra's full wrap-around handguards. It is specifically designed as part of the Cycra handguard ecosystem, so pairing it with Cycra wrap-around guards ensures the best fit and function.

Will this fit my bike if the pinch bolts are on top of the triple clamp instead of the sides?

No — this system is designed for motorcycles with pinch bolts located on the sides of the upper triple clamp. If your bike has top-mounted or differently positioned pinch bolts, this particular mount system is not the right fit. Contact us before ordering if you're unsure about your bike's configuration.

Why mount handguards to the triple clamp instead of the bar end?

Triple clamp mounting prevents handguards from spinning on the handlebars, maximizes cable clearance, and frees up space on the bars for grips, controls, and other accessories — all benefits called out directly by Cycra for this system.
