Built specifically for the 2021 Wrangler Sport's 5x127 bolt pattern and overland ambitions, this package pairs a purpose-matched wheel diameter and backspacing with an all-terrain tire chosen to clear the JL's stock and mild-lift geometry without rubbing at full articulation. Everything ships mounted, balanced, and torque-ready with the correct hub-centric fitment, so you can bolt it on and hit the trailhead the same day it arrives.
The KMC KM235 Grenade Crawl bolts right up to your 2021 Wrangler Sport's 5x127 pattern, and the true beadlock ring is exactly what an overland build wants when you air down for washboard trails and technical rock sections. That +0 offset on a 17x8.5 pushes the wheel out for a wider footprint and added tire clearance, while the 17-inch diameter leaves plenty of sidewall for aggressive all-terrain or mud-terrain rubber. The machined finish gives the JL a rugged, purpose-built face that matches the mission.
The Wildpeak R/T01's rugged-terrain compound splits the difference perfectly for your 2021 Wrangler Sport's overland duty—more aggressive bite than a standard A/T for loose rock, mud, and trail ruts, yet composed enough to hold quiet manners on the highway slog to the trailhead. At 35X12.50R17, the tall sidewall gives you real airing-down flex over rough terrain, while the wide footprint plants traction where the Sport's stock rubber runs out of talent.
This complete wheel and tire package for the 2021 Jeep Wrangler Sport ships as a bolt-on set: four wheels, four mounted and balanced tires, and the hardware to fit them, including TPMS sensors so the dash warning light stays off. The 5x127 bolt pattern and 71.6mm hub bore are matched to the vehicle, and hub-centric rings seat the wheels precisely on the hubs.
The vehicle's hub bore is 71.6mm. This package includes hub-centric rings to center the wheel precisely on the hub, eliminating vibration.

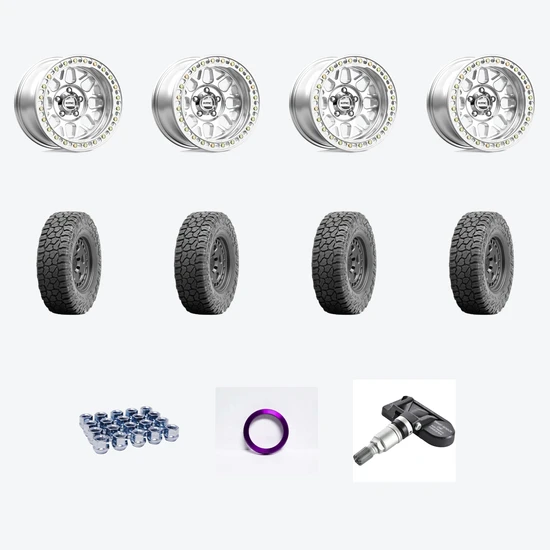

Everything in this package
- 4× KMC KM235 GRENADE CRAWL BEADLOCK 5X127 17X8.5 +0 MACHINED — SKU: KM23578550500
- 4× Falken FAL Wildpeak R/T01 35X12.50R17/10 (35X12.50R17) — SKU: 28757103
- 20× Chrome cone-seat lug nuts
- 4× Hub-centric rings
- 4× TPMS sensors
Installation & fitment notes
Your 2021 Wrangler Sport rides on the narrow-track axles, so this 17x8.5 +0 Grenade Crawl beadlock — sitting 4mm further outboard than factory — is the right direction to help a 35x12.50R17 clear at full lock. Plan on a modest 2 to 2.5-inch lift to run this 35 cleanly; a stock Sport will otherwise rub at full compression and steering lock. Trim or swap to flat inner fender liners for extra clearance. The 5x127 (5x5) pattern is a direct match, but the KM235 uses a conical-seat lug — confirm your lug nuts match before mounting. For hard off-road use, adjust bump stops to prevent fender contact.
Fitment specifications
| Vehicle | 2021 Jeep Wrangler Sport |
|---|
| Bolt pattern | 5x127 |
|---|
| Wheel size | 17x8.5 |
|---|
| Wheel offset | +0mm |
|---|
| Hub bore | 71.6mm |
|---|
| Tire size | 35X12.50R17 |
|---|
| Fitment | Square |
|---|
Preview this setup on your 2021 Jeep Wrangler Sport
Mounted, balanced, and ready to bolt on. In stock and ships as a complete set.
Curated and fitment-verified by The ThreePiece Fitment Team.
